Radiation detector selection guide: scientific decision-making from needs to application scenarios
Update time: 2026-03-18 Number of clicks: 715
Today, as nuclear technology is increasingly used, radiation detectors are a key tool to ensure personnel safety and equipment performance, and their selection is directly related to the accuracy of detection results and work efficiency. Faced with a wide variety of products on the market, how to make scientific selection based on specific needs and scenarios has become a topic that industry users must face. This article will take the related products provided by KARRAY (Shanghai) Technology Co., Ltd. (hereinafter referred to as "KARRAY Technology") as an example to discuss the entire process decision-making of radiation detectors from demand analysis to equipment selection.
1. Requirements analysis: clarify detection goals and accuracy requirements
The first step in selection is to accurately locate the inspection needs. Radiation detectors are mainly divided into two categories according to different detection objects: environmental radiation monitors and medical equipment performance detectors.
1. Environmental radiation monitoring needs
Central to such needs is the measurement of the intensity of radioactivity present in the environment or the level of contamination on an object's surface. The RKS-01 beta and gamma ray detector launched by KARRAY Technology is designed for such scenarios. The device has three independent measurement channels, which can alternately display data on the same display screen. It can quickly provide a gamma background evaluation within 5 seconds, and automatically subtract the gamma background value when measuring beta surface contamination, effectively avoiding cross interference.
2. Medical equipment performance testing needs

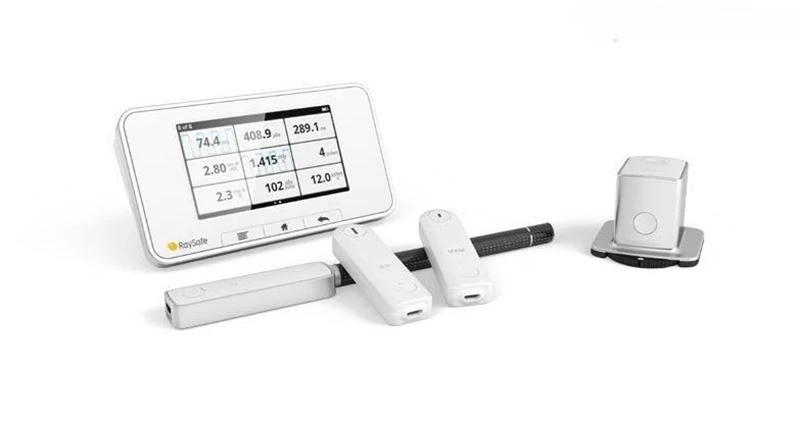

For the radiology or equipment departments of medical institutions, the core task of the detector is to verify whether the output performance of X-ray machines, CT machines and other equipment meets medical standards. The RAYSAFE X2 X-ray mass analyzer series introduced by KARRAY Technology is specially designed for such high-precision detection. The equipment has full-range measurement capabilities. It can automatically obtain key parameters such as kilovolts (kV), dose (Dose), dose rate (Dose rate), exposure time (Time), and half-value layer (HVL) in one exposure without manually selecting a range or special mode.
2. Scene Adaptation: Trade-off between Portability and Stability
Different application scenarios put forward different requirements for the portability, stability and protection level of the equipment.
1. Mobile inspection and emergency response scenarios
In scenarios that require frequent movement, such as environmental inspections, entry-exit inspections, or emergency response, the portability and battery life of the device are crucial. The RKS-01 detector weighs only 0.44kg and is compact in size (160×75×35mm). It is powered by two AA batteries and has a battery life of up to 2500 hours. Its built-in sound indication function (can be turned off) and over-threshold sound alarm make it easy for operators to quickly identify excessive radiation in noisy environments.
2. Laboratory and fixed computer room scenarios
In fixed locations such as radiation medicine, cobalt source therapy or radioactivity laboratories, detectors are often used for long-term monitoring or precision calibration. At this time, the stability and anti-interference ability of the equipment are more critical. RAYSAFE X2 series equipment is equipped with a dedicated CT probe (effective detection area 100mm) and breast machine probe, which can adapt to the special geometric conditions of CT scanning and mammography. Its built-in temperature and pressure sensors enable automatic compensation to ensure measurement accuracy under different environmental conditions.
3. Interpretation of technical indicators: see the essence through parameters
During the selection process, users need to focus on the following technical indicators to ensure that the equipment meets the accuracy requirements of actual work:
1. Measuring range and accuracy
RKS-01 type: γ and X-ray radiation dose equivalent rate measurement range is 0.1~999.9µSv/h, and the basic relative error is ±15% (relative to 137Cs); β particle flux density range is 5~100000 1/(cm²·min), and the error is ±20%. This indicator is suitable for monitoring routine environmental radiation levels.
RAYSAFE X2: The dose (Dose) range covers 10 nGy to 9999 Gy, and the accuracy can reach ±5%; the tube voltage (kVp) measurement accuracy can reach ±2%. Such high precision is the basis for ensuring the accurate output dose of medical equipment and ensuring patient safety.
2. Energy response range
Energy response determines the device's ability to detect rays of different energies. Type RKS-01 has an energy response range of 0.05 to 3.0 MeV (±25%) for gamma and X-ray radiation, and a response range of 0.5 to 3.0 MeV for beta particles. This wide energy range enables it to handle the detection needs of a variety of radionuclides.
4. Comprehensive selection suggestions
Combined with the product characteristics of KARRAY Technology, the selection suggestions for different industries are as follows:
1. Environmental protection, security inspection, and laboratory users: If the main need is to monitor environmental radiation levels or detect surface pollution of objects, and have high portability requirements, the RKS-01 beta and gamma ray detector is an ideal choice due to its lightweight, portable, simple operation, and long battery life.
2. Medical institutions (radiology department, equipment department): If there is a need for performance acceptance or regular quality control of medical equipment such as X-ray machines, CT machines, and breast machines, the RAYSAFE X2 X-ray quality analyzer can meet complex medical equipment testing needs with its high precision, fully automatic measurement, and rich probe configurations.
The selection of a radiation detector is not a simple comparison of parameters, but a comprehensive consideration based on actual needs and application scenarios. As a professional supplier of radiation monitoring equipment, KARRAY Technology's product line covers multiple dimensions from basic environmental monitoring to medical quality control. When selecting a model, users should first clarify "what to measure" (radiation type) and "where to measure" (application scenario), and then combine the technical indicators of the equipment with the brand's service capabilities to make decisions that suit their own needs.
