Detailed introduction
USACIRS 059 Ultrasound Breast Elastography Ultrasound Phantom
Introduction:
USAThe CIRS 059 Ultrasound Breast Elastography ultrasound phantom accurately mimics the ultrasound characteristic twitching of tissue found in the average human breast. The size and shape of the phantom simulates the size and shape of an average patient in the supine position. A special tray facilitates correct hand positioning during training. Protected by a membrane, the flesh-like consistency of the phantom (Zerdine® (1)) simulates the resistance of the needle.

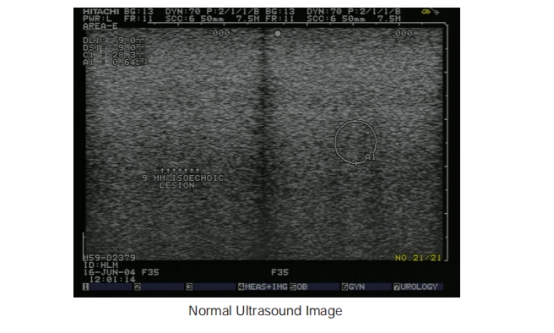

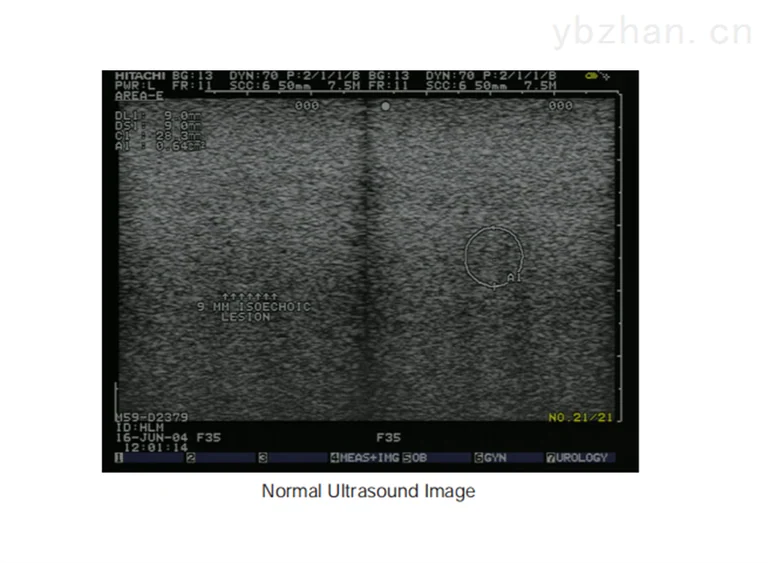

USAThe CIRS 059 Ultrasound Breast Elastography ultrasound phantom contains several solid masses that appear isoechoic to simulated breast tissue under normal ultrasound, but the lesions are 3 times harder than the background and therefore can be detected on the elastogram. Lesions range in size from 2 mm to 10 mm in diameter and are randomly positioned across the background.
USACIRS 059 Ultrasound Breast Elastography Ultrasound Phantom Features:
Improve hand-eye coordination
Test new equipment
mentor others
Contains solid lesions amenable to biopsy
USACIRS 059 Ultrasound Breast Elastography Ultrasound Phantom Specifications:
CIRS 059 Ultrasound Breast Elastography Ultrasound Phantom Specifications: | ||||
Phantom size: | 600ml | |||
Length: | 15cm | |||
Width | 12cm | |||
Height: | 7 cm | |||
Material | Zerdine ® | |||
target | Color | Size | Quantity | location |
dense crowd | blue | 2-10mm | 13 | random |
background | powder | |||
