24 products
View product
Product model: Brief description: The German IBA line card is a test tool specially used to test the high resolution of X-ray machines. The main function of this tool is to help detect and evaluate the imaging quality of the X-ray machine to ensure that it can provide high-definition images.
View product
Product model: Brief description: The light field irradiation field detection board (light field irradiation field consistency detection board) is a tool used to detect the irradiation field consistency of radiation sources such as X-rays or gamma rays.
View product
Product model: Brief description: Meets the "WS76-2020 Quality Control and Testing Specifications for Conventional Medical X-ray Diagnostic Equipment" and the IEC 62220-1 standard, and is used for the determination of modulation transfer function (MTF). Composition: It consists of a tungsten plate (1 mm thickness) with an edge of ±5μm fixed on a 3mm thick lead plate
View product
Product model: Type TYP46 Brief description: The German IBA line pair card is mainly used to test the high resolution of X-ray machines.
View product
Product model: Brief description: German IBA TYPE9-2.0 new high-resolution test card Second-degree star card German IBA TYPE9-2.0 type line pair card Second-degree star card is mainly used to test the high resolution of X-ray machines. The lead foil thickness is 0.06mm and the diameter is 5.3mm
View product

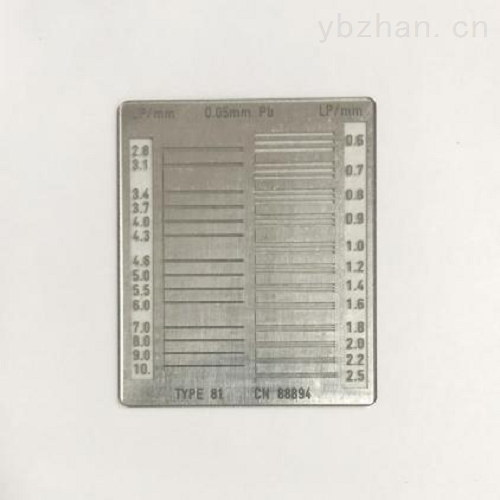

Product model: Brief description: German IBA TYPE81 line-to-card German IBA type81 line-to-card type line-to-card is mainly used to test the high resolution of X-ray machines. Measuring range: 0.6-10.0LP/MM, number of groups: 20 groups. The lead foil thickness is 0.1mm and the size is 55X65mm.
View product

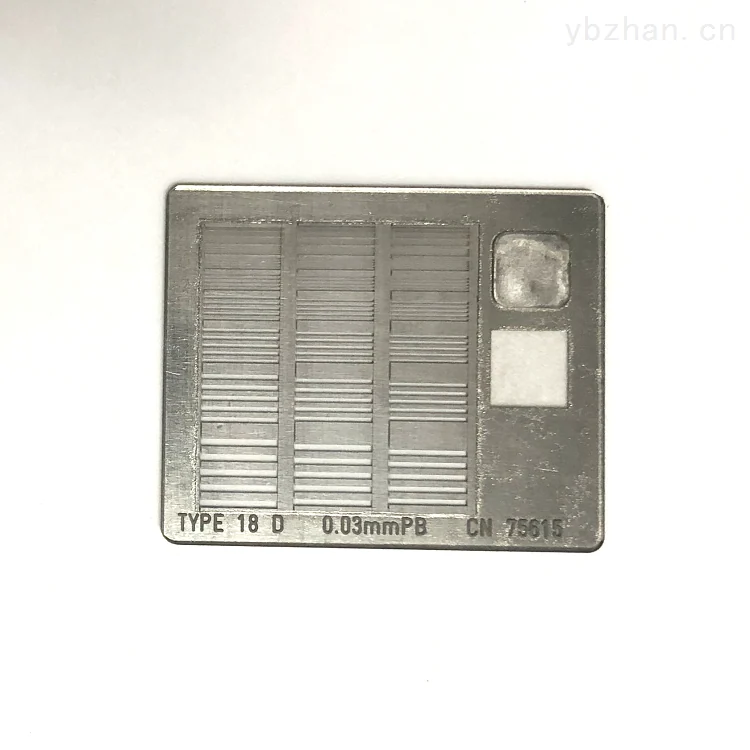

Product model: Brief description: German IBA TYPE18D line pair card is mainly used to test the high resolution of X-ray machines. Measuring range: 0.5-20LP/MM, number of groups: 14. Lead foil thickness is 0.1mm, size is 47mmX57mm. Lead equivalent: 0.03mmPB
View product

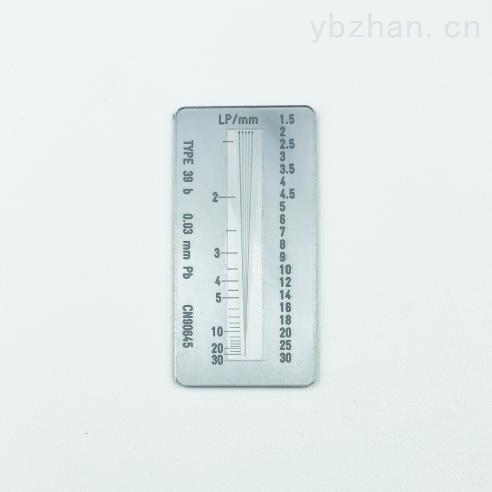

Product model: Brief description: German IBA TYPE39B line pair card is mainly used to test the high resolution of X-ray machines. Measuring range: 1.5-30LP/MM, 14 groups. Lead foil thickness is 0.06mm, size is 30X60mm. Resolution range: 1.5-30 lp/mm
View product

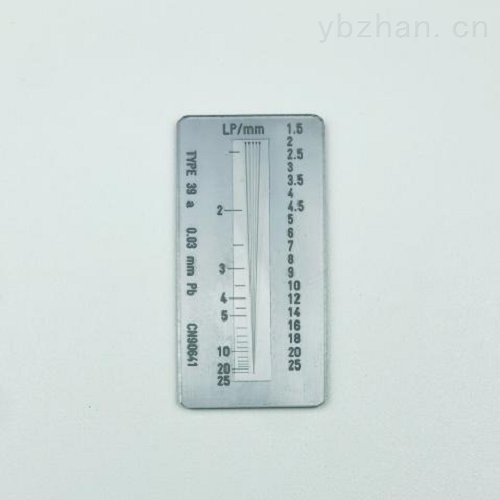

Product model: Brief description: German IBA TYPE39a line pair card is mainly used to test the high resolution of X-ray machines. Measuring range: 1.5-25LP/MM, number of groups: 14. Lead foil thickness is 0.06mm, size is 30X60mm. Resolution range: 1.5-25 lp/mm
View product
Product model: Brief description: Suitable for resolution detection and quality control of X-ray imaging and quality assurance of X-ray imaging equipment
View product

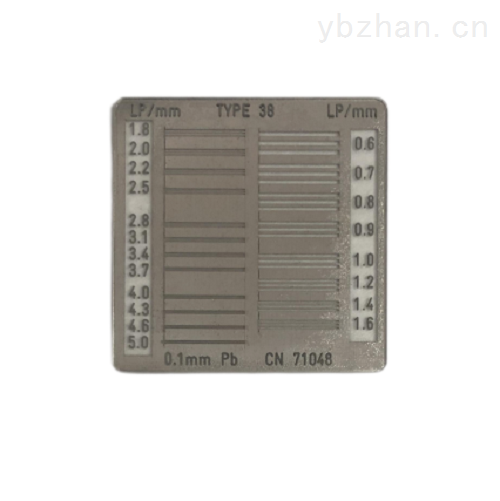

Product model: Brief description: The German IBA 38 type line card is mainly used to test the high resolution of X-ray machines. Measuring range: 0.6-5.0LP/MM, number of groups: 20. The lead foil thickness is 0.1mm and the size is 50X50mm. Resolution range: 0.6-5.0 lp/mm
View product

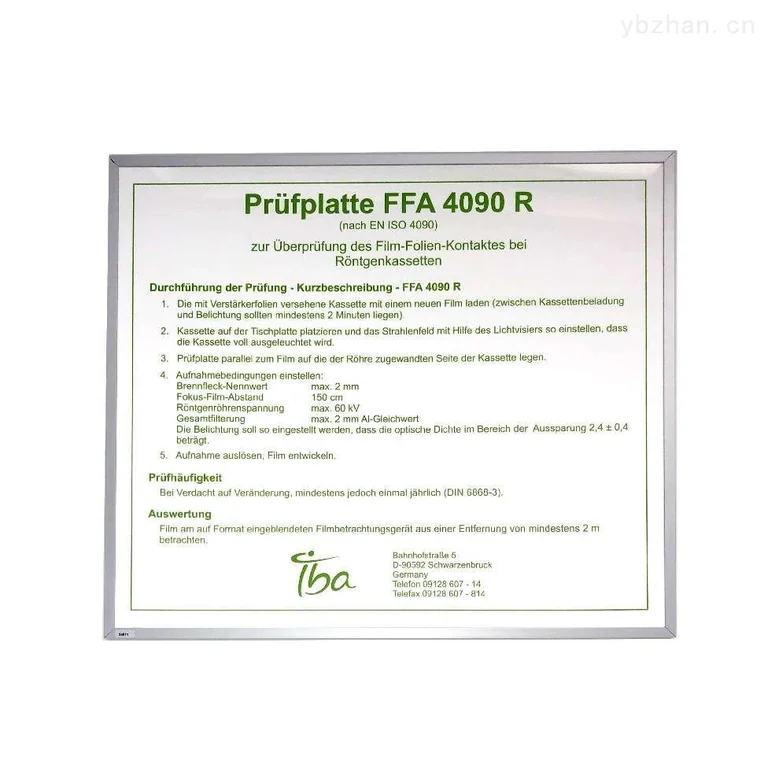

Product model: Brief description: Test tool for checking the adhesion performance of the Internal dimensions of the film box (cm): L42 / B49 / H0.7 External dimensions of the film box (cm): L44 / B51 / H0.9
View product

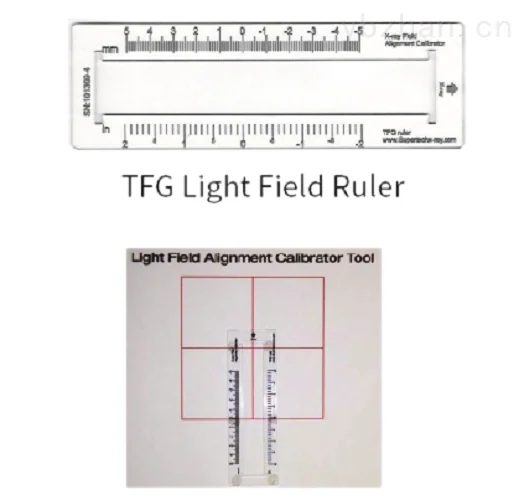

Product model: Brief description: The light field and radiation field consistency detector can be used at voltages as low as 30 kV and can give objective, reproducible and immediately readable results. Product introduction of the optical field detection ruler: The sensor arrangement of the light field and radiation field consistency detection ruler is specially designed to meet the needs of real-time detection of the consistency of the radiation field and the indicator light field of the radiograph, breast machine.
View product

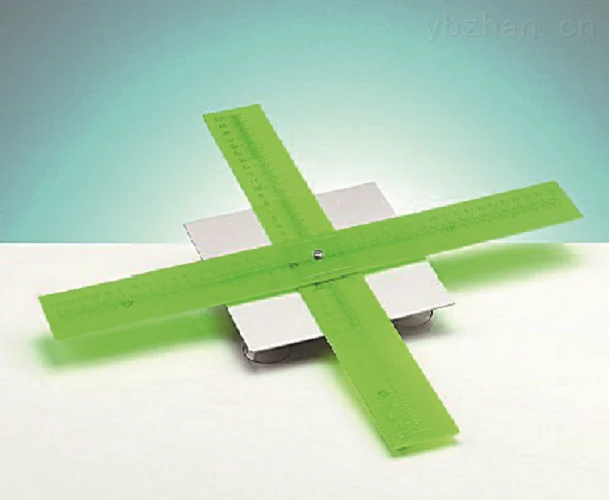

Product Model: Brief Description: Cross ruler to determine the position of the image on the intensifier screen Small mechanical test tool to check the correct center of the intensifier screen Easily adjustable on the fluoroscopy unit Displays radiopaque scale circle center cross on the fluoroscopy monitor Mounted on a 16 cm x 16 cm base plate, made of aluminum. Two 20cm rulers, starting from the middle, can be adjusted into a cross shape, making it easy to center. The center cross is fixed with suction cups
View product

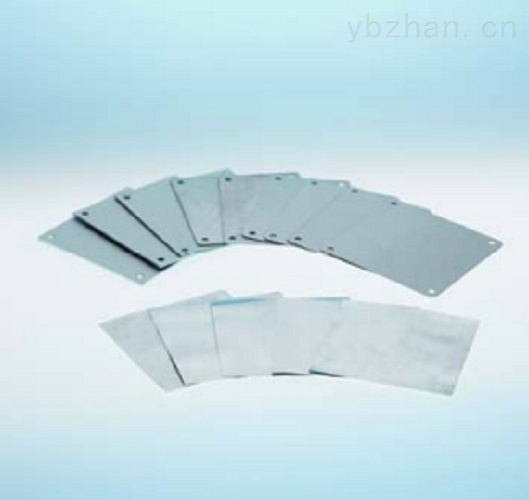

Product model: Brief description: KR309 X-ray machine half value layer (HVL) measurement filter Serial number: VD0403320 Product introduction X-ray machine half value layer (HVL) measurement filter Serial number: VD0403320 Working range: 40-150 kV Size: 100mm x 100mm Aluminum purity: ≥99.5% Composition: 5 pieces 0.1 mm aluminum foil; 2 pieces of 0.5 mm aluminum foil;
View product
Product model: Brief description: Customized test cards are specially made according to the customer's own camera testing needs. Customized test cards include high-definition resolution test cards, color restoration test cards, grayscale test cards, and distortion test cards. The circle graph in the test chart allows a rough assessment of linear scan performance.
View product

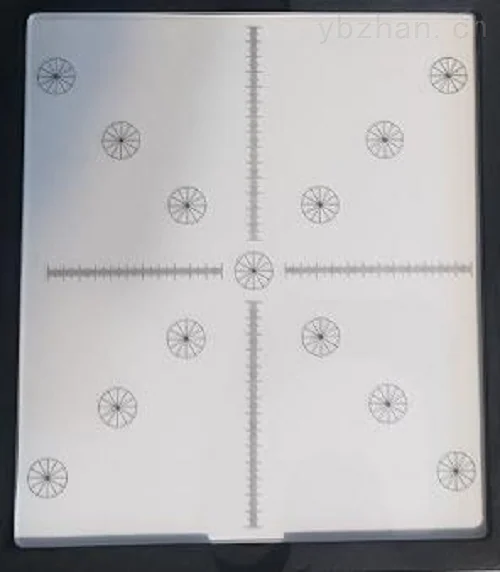

Product model: Brief description: Product introduction Scope of application: Embed a series of patterns in the reference material, place the test card on the reference surface, measure the horizontal and vertical diameter of the pattern ring, and calculate the magnification consistency. Product production and customization manufacturer: Langfang Yushuang Instrument Equipment Co., Ltd. For more detailed information please contact us.
View product

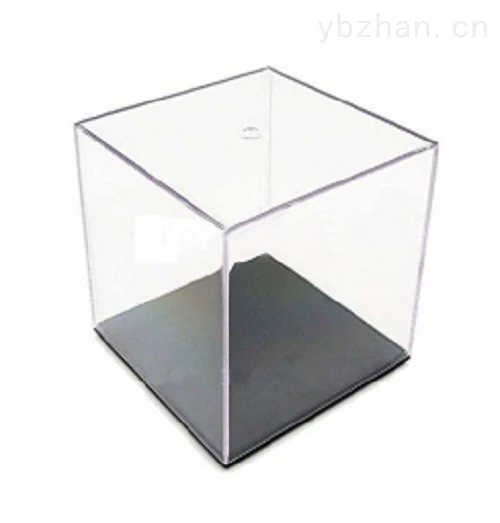

Product model: Brief description: KR306 standard water phantom 1. Meets the "WS76-2020 Quality Control and Testing Specifications for Conventional Medical X-ray Diagnostic Equipment" 2. The standard water phantom is used to detect the incident dose of X-ray fluoroscopy machines. 3. The product size is 30cm X 30cm X 20cm, the additional copper plate is 1.5mm thick, 30cm
View product

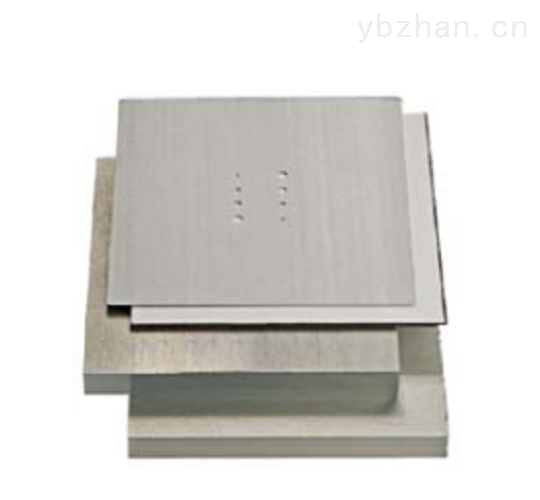

Product model: KR305 Brief description: The low-contrast detection phantom meets the "WS76-2020 Quality Control and Testing Specifications for Medical Conventional X-ray Diagnostic Equipment".
View product

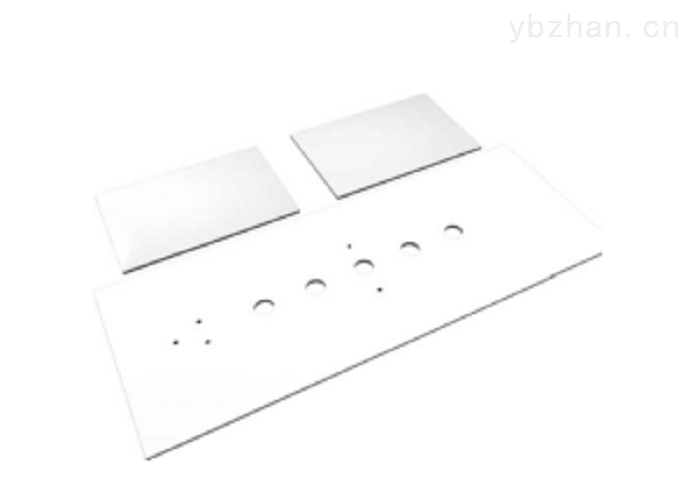

Product model: Brief description: KR304 Grid Alignment Test Plate Product Introduction Grid Alignment Test Plate KR3041. Meets the "WS76-2020 Medical Conventional X-ray Diagnostic Equipment Quality Control and Testing Specifications" 2. The grid alignment test plate is used to check whether the focused grating is exactly aligned with the center ray and the center of the film cassette. 3. The test lead plate size is 23cm×9cm×0.4cm, and the small lead plate size is 9cmX6cmX0.4cm (2 pieces).
