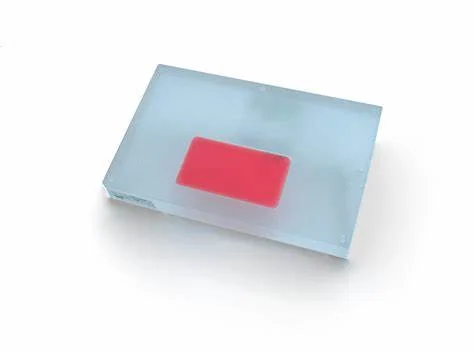

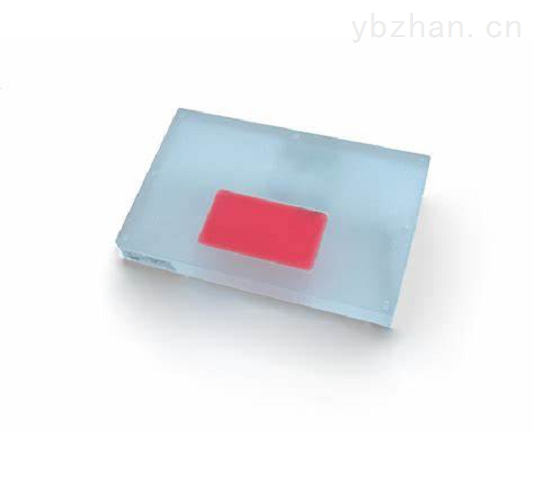

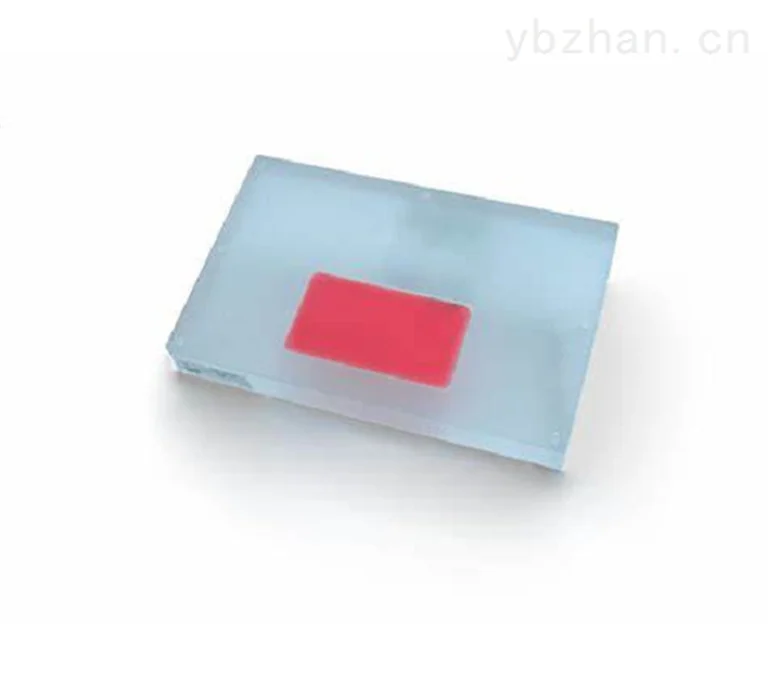

American CIRS 086 ACR certified digital breast phantom
Product model:
Brief description:The US CIRS 086 ACR certified digital breast phantom was designed under the auspices of the American College of Radiology (ACR) to test the performance of FFDM systems. Objects within the phantom simulate calcifications, ducts, and tumor masses. The CIRS 086 ACR certified full field digital mammography phantom is designed to determine if your DM system is able to detect small structures important in early detection of breast cancer.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES
Detailed introduction
USACIRS 086 ACR certified digital breast phantom
Introduction:
USAThe CIRS 086 ACR-certified digital breast phantom was designed under the auspices of the American College of Radiology (ACR) to test the performance of FFDM systems. Objects within the phantom simulate calcifications, ducts, and tumor masses. The CIRS 086 ACR certified full field digital mammography phantom is designed to determine if your DM system is able to detect small structures important in early detection of breast cancer.
USAThe key component of the CIRS 086 ACR certified digital breast phantom is the 7mm thick wax insert, which sits within a matching cavity milled in a polymethylmethacrylate (PMMA) block. By using a 0.23mm "compensator" placed under the wax insert, the total attenuation under the wax insert is matched to a 4.1cm thick PMMA. The wax insert contains targets by map (Figure 2). The fiber is monofilament nylon and simulates calcifications or "spots" made of spherical glass with a mass that simulates 10% fat - 90% glandular breast tissue.
USACIRS 086 ACR certified digital breast phantom includes carrying case, user guide and 48-month warranty.
USACIRS 086 ACR certified digital breast phantom features:
Embedded Goal AssessmentFFDM system performance
Contains simulated microcalcifications, ducts and masses
mass analog10% fat - 90% galndular breasts
Includes carrying case, user guide and48 months warranty
USACIRS 086 ACR certified digital breast phantom product specifications:
product specifications | ||
fiber | Speks (diameter) | Quality (thickness) |
0.89 mm fiber | 0.33 mm sphere | 1.00 mm mass |
0.75 mm fiber | 0.28mm ball | 0.75 mm mass |
0.61 mm fiber | 0.23 mm ball | The quality is0.50mm |
0.54 mm fiber | 0.20mm ball | 0.38 mm mass |
0.40 mm fiber | 0.17 mm sphere | 0.25 mm mass |
0.30 mm fiber | 0.14 mm ball | quality0.20mm |
Model086 included | ||
1 | Full digital mammography certification phantom | |
1 | Carrying luggage | |
1 | User Guide | |
- | 48 months warranty | |
