USACIRS 18023-AXsight Spine Tracking Phantom
Introduction:
USACIRS Model 18023 - AXsight® Lung Tracking "XLT" Phantom Kit and Model 18043 4D Planning "4DP" Phantom have been validated and validated by Accuray for use with the CyberKnife System, and both work with the Synchrony System.
UseXsight® Spine Tracking System for Initial Phantom Alignment
useSynchrony System Shows Tissue Simulates Respiratory Movements of Trunk, Lung Tumors and Key Structures
executeMovies analyzed by E2E software (without CT number adjustment)
UseMultiPlan system visualizes 4D treatment optimization
The XLT phantom represents the average of human chest shape, proportions and composition.
USACIRS 18023-AXsight spine tracking phantom features:
3D artificial spine with cortical and trabecular bones, ribs and lung lobes
Pulmonary sphere cube rod with tumor simulant target and radiochromic coating

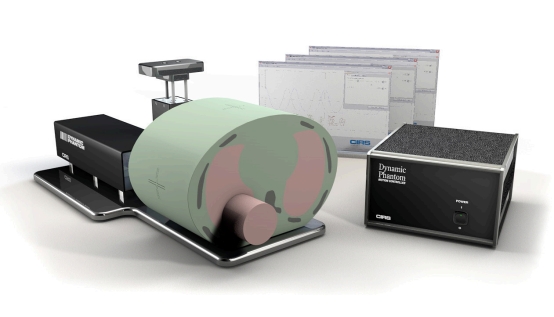

CIRS motion control software enables accurate 3D target liquids
Independent control of agent and target movement

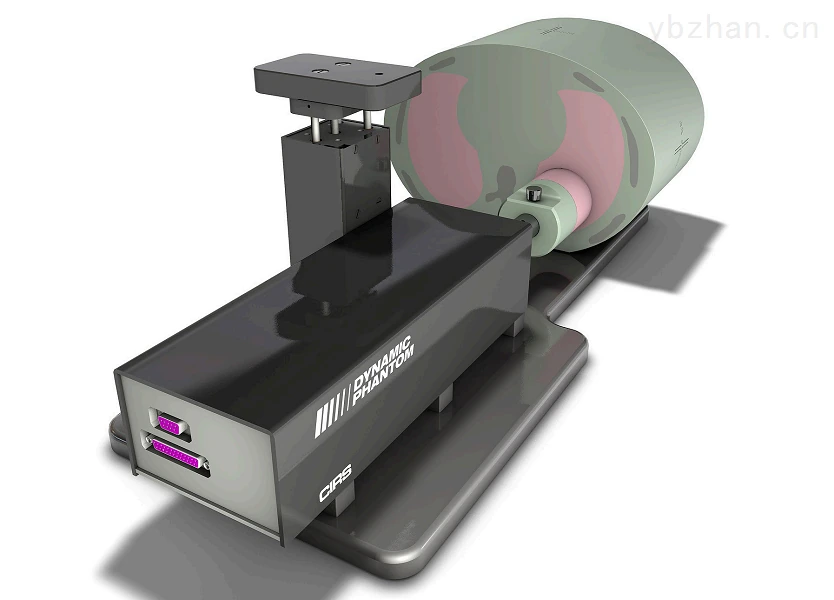

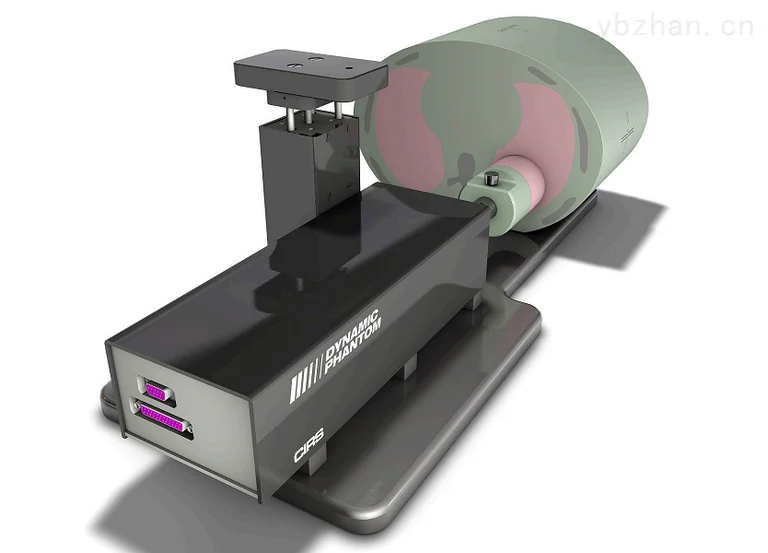

The 4DP phantom is interchangeable with the XLT body and connects to motion controllers and platforms.
Features:

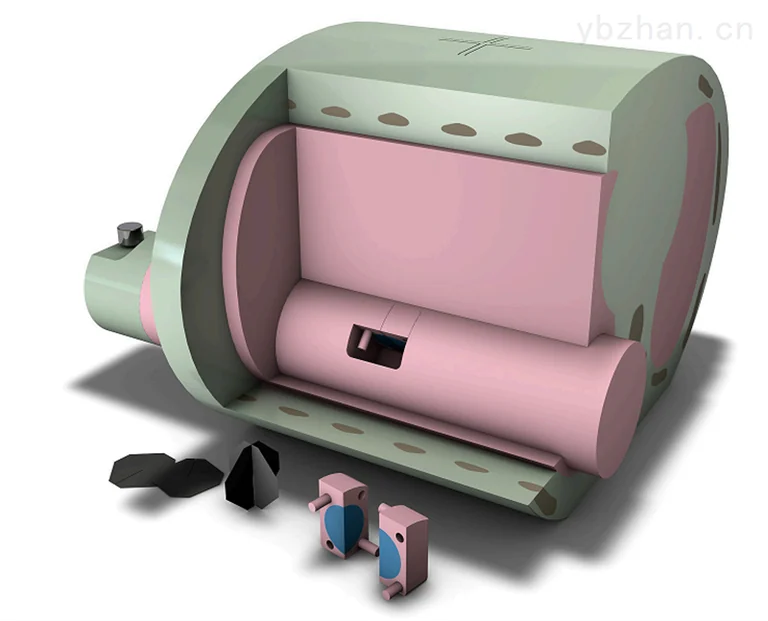

Modified phantom with lung lobes and spine
High-density lung cue rod with tumor simulation target and radioactive pigment film
rotate(Manual) Trabecular Equivalent Spine with Film Insertion
XLT and 4DP phantoms include lung equivalent epoxy resin
(respective density). It contains housing for two pre-cut spherical targets
radioactive chromium® membrane, and is easily attached and aligned to the drive shaft.
The optional 4D treatment optimization and planning system on the MultiPlan system allows users to visualize the impact of respiratory tissue deformation on radiation dose and indicators of treatment options. Therefore, treatment plans can be developed using optimized beam positions and weights based on knowledge of respiratory deformations.
withThe 4D planning "4DP" phantom used in conjunction with the XLT phantom kit allows testing of this optional 4D planning system on the MultiPlan system using the CyberKnife system.
forQuantitative evaluation of dose calculations for the MultiPlan system:
ExportDICOM RTDOSE files and use third-party software to evaluate the files
UseGlobal export tool in MultiPlan system, export DICOM files from MultiPlan system to MultiPlan System PC
UseQualitative comparison of doses of key structures between 4D and 3D dose calculations with ImageJ
