Detailed introduction

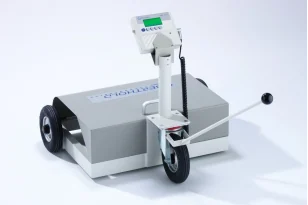

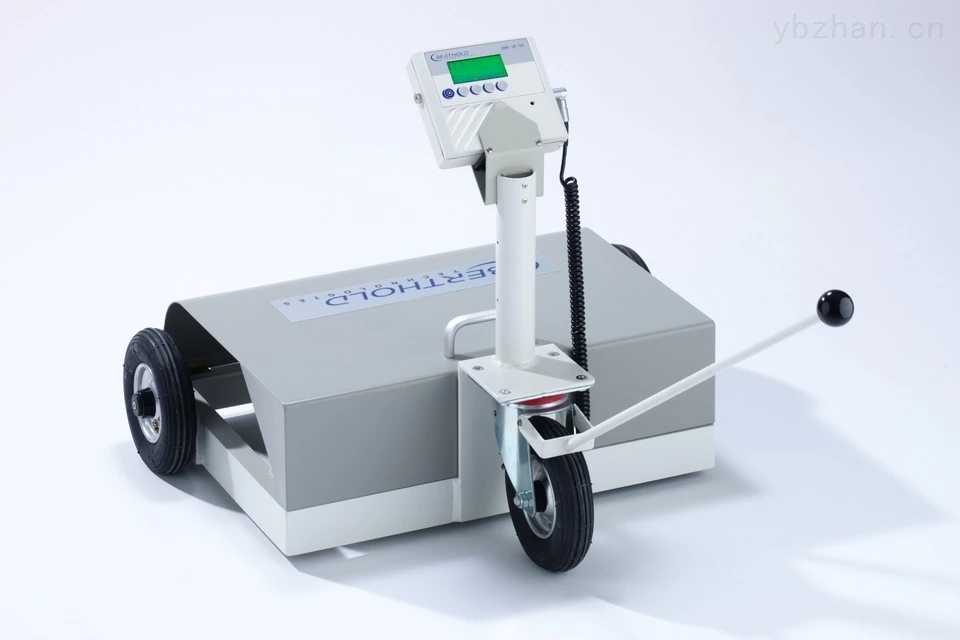

germanyBERTHOLD LB 165 Floor Surface Contamination Meter
Product introduction:
l Based on a new generation andAn area proportional counter tube with a very large effective area of 2000 cm²
l The number of measuring points of these detectors is reduced, thereby significantly reducing the workload
l The detector moves and adjusts its height so that contaminated areas can be easily scanned
l The active area of a large area counter tube2000cm2, can be set at 5mm and 20mm above the floor
l LB 165 monitors permanently filled xenon counter tube LB 6376 and measures beta- and gamma-emission
Features:
l Mobile monitor height adjustable
l Scan large areas easily
l with2000 cm² effective area proportional counter tube
l The number of measuring points is small, so it is less time consuming and cheaper
l Tachometer or anti-pattern
l Alarm thresholds can be set for each measurement mode and each nuclide, visual and auditory signals exceeding these thresholds
l up to250 individual results can be stored and printed
l Three wheel trolley
l A detector: xenon detector or flow-through counter tubeP10
l Battery or rechargeable battery powered
Technical parameters:
LB 165 | LB 166 | ||
Count gas | xenon lamp | Argon/Methane 90%/10 | |
entrance window | 12 micron titanium | 3 micron polyester film aluminized | |
working point | 1900 Volts | 1580 Volts | |
Flush timing gas | N/A | > 3 h | |
preamplifier/identification | 1 channel | 2-channel alpha-beta separation | |
weight | 17 kg | 24.5 kg | |
Measurement mode | beta channel | α-channel | beta-channel |
background | 135 cps | 1 cps | 100 cps |
Added background | 300 cps | 1 cps | 250 cps |
γ level is 0.3μSv/h | |||
Detector type | Proportional counter tube | ||
Overall size inspection | 700 mm x 600 mm | ||
ACTVIE area | 570 mm x 380 mm | ||
reference altitude detector | Floors above 5mm | ||
Maximum adjustable stroke | 18 mm | ||
minimum ground clearance | Floor above 5 mm | ||
protective grid | Stainless steel, transfer degree80%, protection radius against foreign objects is 4mm | ||
Evaluate electronic products | LB 1230 | ||
temperature range | -15°C to +50°C | ||
Operation | foil keyboard on/Off button and 4 function keys are soft keys | ||
