Detailed introduction

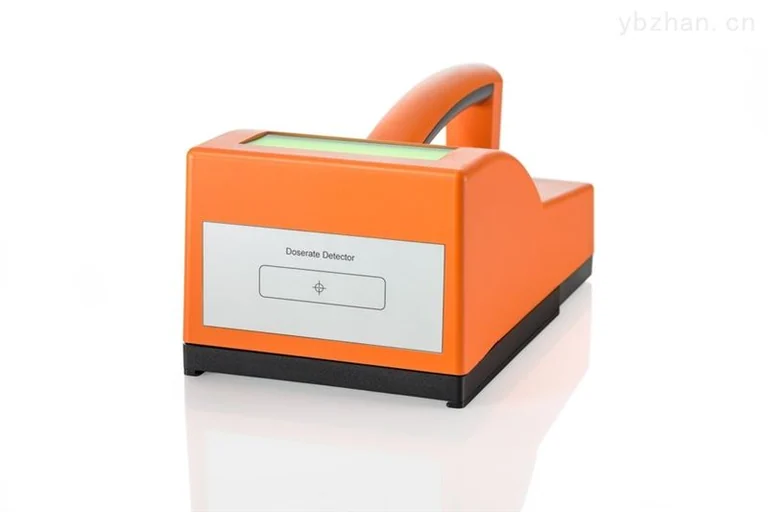

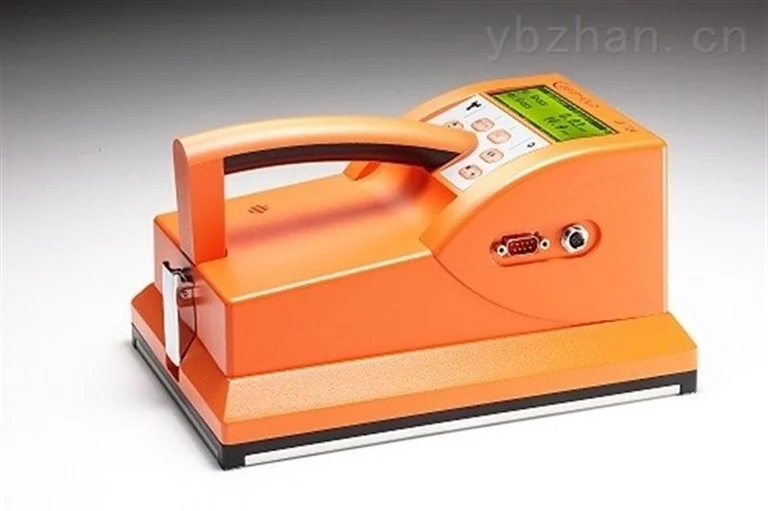

germanyBERTHOLD LB124 Surface Contamination Meter
Product introduction:
l LB 124 SCINT portable surface contamination detector with detection area 170 cm2
l Its unique reflector geometry ensures that the instrument's response is well balanced throughout the entire sensitivity range
l Can be used on floors, walls, tables, objects, clothing, skin and other surfacesSimultaneous measurement of surface contamination of α, β and γ
l Instruments include: electronic display device with microprocessor, photomultiplier tube, ZnS scintillator and signal processor
l Uses new flicker detection technology to simultaneously measureRadioactive surface contamination of alpha and beta gamma
l High sensitivity, uniform response to rays on the entire detection surface, light weight, easy to operate, and wide temperature adaptability range
l Consists of display unit with microprocessor, photomultiplier tube, zinc sulfide scintillator and data processing unit
l byPowered by 3 AA batteries. Also optional: rechargeable battery and charger, as well as a carrying case
Product application:
l nuclear power plant
l Decommissioning of nuclear facilities
l Nuclear waste disposal
l Environmental monitoring
l nuclear research
l nuclear medicine
Features:
l *Data storage capacity,RS232 supports two-way communication
l Light weight and easy to carry
l The program can be downloaded and data can be transferred toPC or printout
l Measure simultaneouslyα and β
l According toISO 7503-1 or DIN 44801 calibrated for 50 nuclides
l Protective window with high transparency
l Alarm threshold value is adjustable
l Acoustic alarm, vibration alarm optional
l background light design
l Easy to operate, easy to clean and easy to maintain
l battery powered
l High sensitivity and balanced response
l Wide applicable temperature range
Technical parameters:
show | monochromeLCD l92x64 pixels, electronic fluorescent lighting |
detector | Zns:Ag scintillator detector |
Measurement mode | α and β are measured simultaneously and separately |
Detector size | 118mmx145mm |
Sensitive domain | 170cm2 |
entrance window | metal treated plastic, 6μm (0. 4mg / cm2 ) |
Protective grid transmittance | 80% |
Size | 240mm x 140mmx110mm |
weight(with battery) | 1300g |
Maximum working hours | 7.8 Ah alkaline > 50h; 3.5 Ah Ni - MH > 25h |
data logging | 1000 measured values |
serial interface | RS232 |
operating temperature | -20 to 40 relative humidity - 40 to -60 - (no condensation) |
Protection level | IP53 |
Optional accessories | Charging power supply, sample box, wall bracket |
test source | 80Bq Am-241 |
