Detailed introduction

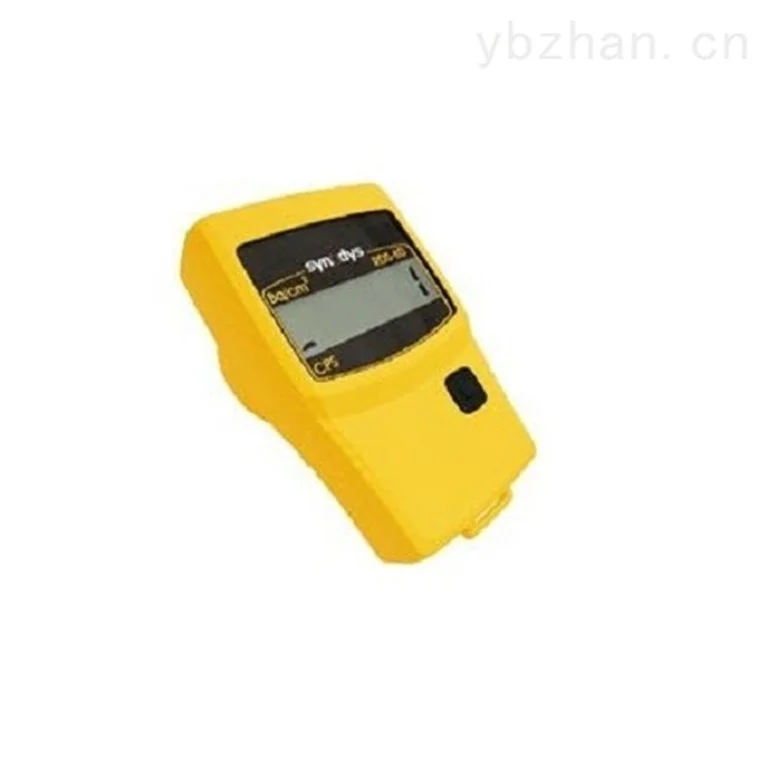

RDS-80 surface contamination meter
Product introduction:
l RDS-80 surface contamination measuring instrument is a universal contamination measuring instrument
l For a wide range of applications in diverse fields such as the nuclear industry, rescue and other work involving the possibility of unusual contamination levels
l Configurable surface activity of any nuclide (Bq/cm2) display
l
mostData recording performance of 480 groups
l Electromagnetic compatibility: CompliantCE standards
l Features Freely adjustable alarm levels
l Built-in infrared port(IrDA)
l Easy and simple to use
l Contamination measurement with data histogram storage
Product features:
l Easy and simple to use
l Sound and light alarm
l Contamination measurement with data histogram storage
l Broad measuring range: up to100000CPS ; 0.01- 100000 Bq/cm2
l toStandard surface contamination measurement expressed in CPS or Bq/cm2
l Sound and light alarm
l Configurable surface activity of any nuclide(Bq/cm2)display
l Activity tracking uses sound signals whose frequency is proportional to activity
l most480 groups of data recording performance, user can set recording time interval (optional).
l Backlit display with six large digits
l Built-in self-diagnosis function
Technical parameters:
physical properties | Radiation measurements:a、β、γ |
RDS-80 surface contamination measuring instrument (surface contamination meter) | |
Detector: End WindowGM tube | |
Energy range:alpha>2MeV, beta>100keV, gamma and x-rays 5keV-1.3MeV | |
Measuring range:1—100000CPS 0.01- 100000 Bq/cm2 | |
cps linearity: 1-digit range ±15% | |
Features | Display units:CPS or Bq/cm2 |
Surface contamination with different single nuclidesBq/cm2 display | |
Sound and light alarm | |
Configurable surface activity of any nuclide(Bq/cm2)display | |
Activity tracking uses sound signals whose frequency is proportional to activity | |
most480 groups of data recording performance, user can set recording time interval (optional). | |
Backlit display with six large digits | |
Built-in self-diagnosis function | |
Electrical characteristics | Power supply:2 alkaline batteries IEC LR6/AA size (recommended) or rechargeable NiMH batteries. |
Battery life:2000 hours (more than one year under normal operation) | |
Alarm: For low voltage there is2 alarm valve levels | |
Electromagnetic compatibility: CompliantCE standards | |
Mechanical properties | Housing: Rugged plastic housing |
Dimensions:78×126×57mm | |
Weight: without battery280g, including battery 330g | |
Environmental characteristics | Operation:-25℃ ¬— +55℃ |
Storage:-40℃ — +70℃ | |
Protection levelIP67 | |
Optional accessories | Software for parameter setting, data reading and calibration |
wristband | |
neck strap | |
connect | Built-in infrared port(lrDA) |
