Detailed introduction

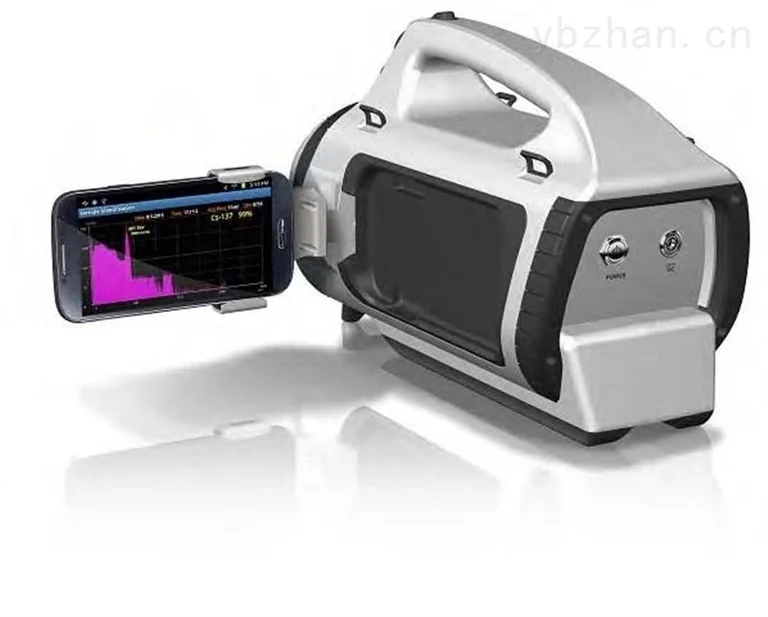

SAM945 portable gamma spectrometer
Product introduction:
SAM945 is a handheld isotope identification instrument. The instrument is widely used in nuclear science, public safety, radiation protection and other related fields. The instrument has diverse measurement functions: such as background measurement, dose and dose rate, search for radiation sources, isotope identification, etc. The instrument can also select different probes to meet the requirements of different measurement situations, such as wide dose rate range, highly sensitive isotope identification probe, and additional neutron probe. This instrument also has the largest variety of isotope identification in the industry, supporting the identification and detection of 497 isotopes through an expanded database.
The biggest feature of SAM945 is that it can be directly connected to Bluetooth devices such as smartphones. Through the installed application, measurement and data processing can be performed directly on the user end. From a safety perspective, a certain measurement distance can be maintained to avoid damage from radiation sources. Remark labels can be directly added to the measured results such as search results, isotope identification, dose rate and other data to facilitate users to study the later data. In addition, the instrument can also be equipped with a GPS function to obtain accurate measurement data.
Product features:
l Light and easy to use, compatible with a variety of smartphones
l Simultaneous identification time of multiple isotopes＜1 second
l Optional3He neutron detector
l Automatic stable calibration
l Data processing is convenient and can be uploaded to the database
l Built-in multiple isotope libraries (497）
Product application:
l emergency protection personnel
l customs and border patrol
l law enforcement agencies
l homeland security
l Passenger cargo monitoring
l Industrial, medical, radiation safety
l Environmental waste monitoring
l no one/remote monitoring
Technical parameters:
Detector type | |
NaI | Nuclide identification (general) |
CeBr | Nuclide identification (high resolution energy spectroscopy) |
3He | Neutron detector (optional) |
GM-Tube | High dose rate range detector |
Data output format | satisfyXML、ANSI、N42.42。 |
Measurement report | includeID, credibility, level, dose rate, project type, etc., nuclide identification includes the identified nuclide nuclide category and credibility. |
energy range | 20 keV - 3.0 MeV |
Data transfer | Bluetooth,USB |
Power supply status | Lithium battery＞8 hours |
weight | 2.8 kg, 6lbs (standard type) |
Specifications (host) | 26 x 13 x 16cm |
Protection level | IP65 |
temperature range | -20℃ ~ 50℃ |
Calibration type | Automatic stabilization and calibration |
nuclide library | Nuclides in ANSI42.34, color icons. Users can add other nuclide libraries |
Function | Background measurement, total dose and dose rate, isotope identification, source location, |
data logging | greater than10,000 pieces of data and notes |
Smart terminal function | User switching (administrator),GPS, data communications, camera, audio recording |
