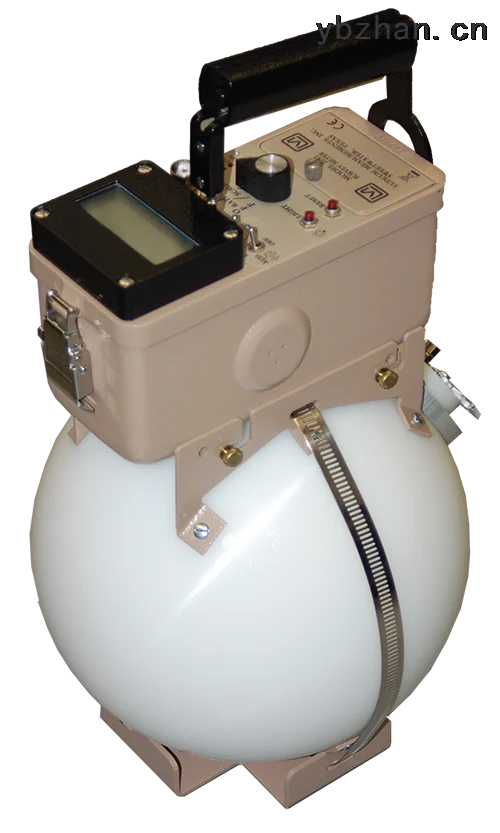

USALUDLUM Model 2241-4 Neutron Dose Rate Detector
USALUDLUM Model 2241-4 Neutron Dose Rate Detector Product Introduction:
USALUDLUM Model 2241-4 neutron dose rate detector is a high-performance, portable neutron dose rate meter launched by Ludlum. The system combines a high-performance, digital measurement host and an independent peripheral, highly sensitive REM-Ball neutron detector (42-31H). The measurement host adopts Ludlum's new generation digital display technology and integrates a fast microprocessor internally, which can quickly analyze the measurement signal. The core external neutron detector adopts a large-size slowed neutron detector, which can provide better sensitivity. It can be widely used in environmental protection, disease control (CDC) and health supervision agencies, nuclear material research, nuclear power plants, nuclear decommissioning and decontamination and other fields.
USAFeatures of LUDLUM Model 2241-4 Neutron Dose Rate Detector:
l External, high sensitivity22.9 cm (9 inches) moderated neutron detector provides optimal measurement accuracy
l Large range: 0~100 mSv/h (0~10,000 mrem/hr), automatic switching range, wider adaptability
l Gamma suppression up to10R/hour
l Built-in scaler function in tachometer
l host integration,RS-232 connection, combined with special data analysis software, can quickly upload data to a computer for analysis.
Things to note:
l Do not contaminate this instrument through contact with radiating surfaces or materials
l Do not place the instrument above50℃ or exposed to the sun for a long time
l Do not get the instrument wet. Water can damage the mica surface coating of circuit boards and Geiger tubes
l IfThe mica window of the Geiger tube has been damaged or worn by water vapor. Please do not use the detector window to measure against the sun; this will affect the reading.
l don'tRadalert 100 is placed in the microwave. It cannot measure microwaves and you may damage it or the microwave
l If the instrument is not expected to be used for more than a month, please remove the battery to prevent battery corrosion.
l When a defect mark appears, replace the battery
Technical parameters:
Part number | 48-2973 |
Application | neutron radiation dose rate |
monitor | LCD programmable backlight time |
Power | two"D" battery |
battery life | Usually200 hours |
control | close/Rate meter/scaler three-position operating switch, audio/OFF switch, fast/slow response switch, LCD backlight button, count reset button, and scaler count button |
Audio | Built-in speaker audioon/off switch, greater than 60 dB for 2 feet (0.6 meters) |
SCALER time | 1-999999 seconds adjustable, can display seconds or minutes |
warning/Alarm | Preprogrammed alarm tachometer and zoom modes |
RS-232 | "D" type connector for programming tools and output data at baud rates from 150-19.2K bps at two second intervals |
Size | 6.5×3.5×8.5 inches (16.5×8.9×21.6 cm) (HxWxL) |
weight | 3.6 lbs (1.6 kg) |
Detection range | approx.12 MeV |
radiation detector | 2 ATM³ HE LND 25185 or equivalent |
Moderator | 9 in. (22.9 cm) diameter cadmium loaded polyethylene balls |
Sensitivity | Usually100 times/millirem/hour (241 AMBE fast neutrons) |
GAMMA inhibition | Usually per minute10 pages or less to 10 R/hour (100 mSv/hour) (Cs-137) |
Working voltage | ≈1200 VDC |
threshold | -2 millivolts |
connector | "C" Series (Others) |
temperature range | -4~122°F (-20 to 50°C) |
Size | 10.3 x 9.0 x 9.0 inches (26.2 X 22.9 X 22.9 cm) (H x W x D), including brackets |
weight | 14.5 lbs (6.6 kg) |
CE certification | Yes |
