Detailed introduction

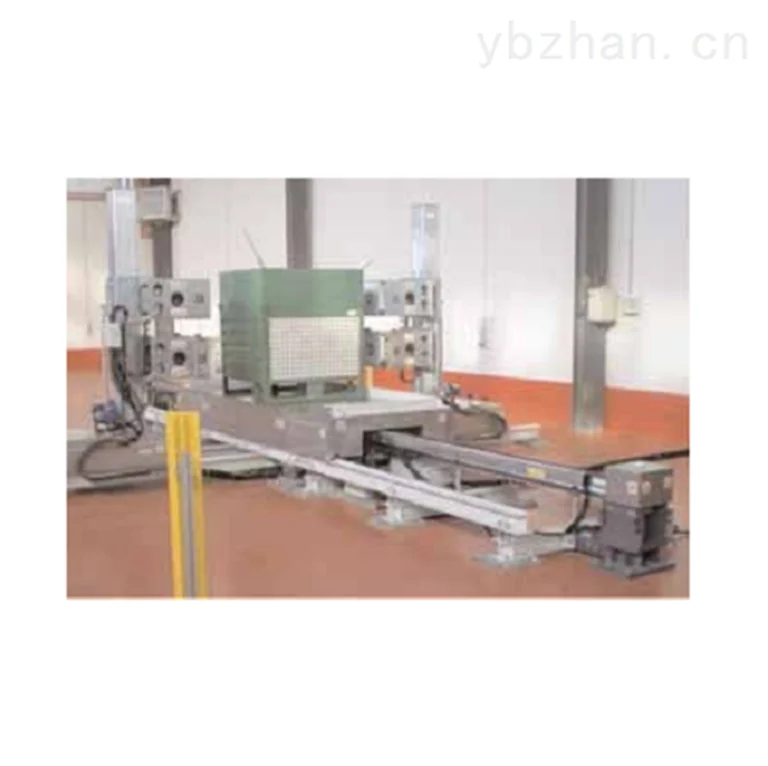

AURAS-3000 Non-destructive waste detection system
Ÿ The decommissioning of nuclear facilities is a huge project that generates a large amount of low-activity radioactive waste. It is necessary to confirm that these nuclear wastes haveNo longer radioactive, each waste bin undergoes a highly precise and sensitive analysis to determine whether it is free to discharge.
Ÿ

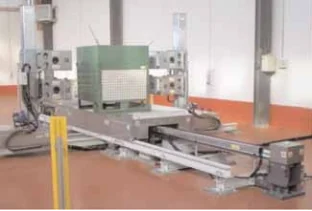

AURAS-3000 It is a highly automated system suitable forfor measurement 3 Various containers (bags, boxes, barrels orB25 container）, and the density is 100 kg/m3 to 2000 kg/m3 rangeVarious nuclear waste samples within. The system uses four modular IDM Electrically refrigerated integrated high-purity germanium spectrometer simplifies the mechanical design of the system. It also improves the maintainability of the system. Use ORTEC ofISOTOPIC Nuclear waste analysis software analyzes energy spectrum, users cancentral equipment LabVIEW control the software. For low-density substancesOK 40 minute count, its detection lower limit is better than 0.01 Bq/g。
 |
 |

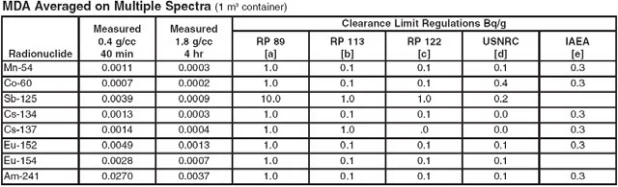

The table below gives data from a real test measuring nuclear waste with a uniform distribution of radionuclides. Reports are given for each detectorof MDA value, also given according to NUREG 4.16 obtained by method MDA value, that is, a conservative value. Measurements under other conditions may vary, measurement results (MDA) depends largely on sample content and changes in radioactivity in the natural background.
AURAS-3000 There are already several sets of related projects actually operating in decommissioned nuclear power plants in Italy.
