Detective-Remote high-purity germanium inspection system

Detective-Remote High purity germanium inspection system

Detective-Remote is based onORTEC Integrated electrorefrigeration spectrometer(Detective/LDM/IDM/Trans-SPEC)Large-scale mobile patrol and source search system with hardware and special software.

² Automatically integrate multiple detector (spectrometer) signals, quickly and efficiently automatically identify nuclides, and start with one click;

² Map information for all countries, with Vector/Raster Or the online map is perfectly compatible;

² The default mode of the software is“Search", in this mode, the software interface displays the following information at the same time:

- Each hardware"Healthy" status

- Classified alarms based on time tags (According to ANSI N4242 Standard）

- The instrument automatically stores a spectrum every second, and the user can set it according to the actual task.“Tag” interval duration

- Nuclide information distributed by geographical information

- Plot of gamma (and neutron) count rate fluctuations distributed over time information

- Pop-up alarm message when special nuclide is found

² The sound and view alarm are synchronized; the alarm will continue until confirmed by the user;

² Wireless communication and remote control;

² Ultra-large flow information (spectrum/Movement path/Analyze results)Storage and backtracking.

Except the default“Search"Outside of "mode, the software has other "Stand-In"and"Review"Two modes.Stand-In Mode is suitable for close static investigation and confirmation.Review In mode, the user can access information such as spectra stored second by second toConduct retrospective inspection of special alarms or events.

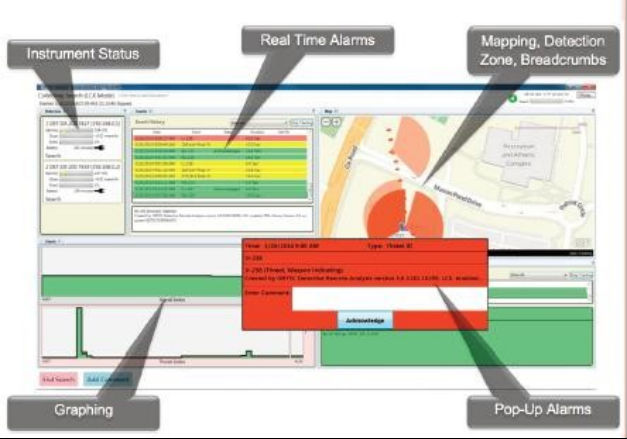

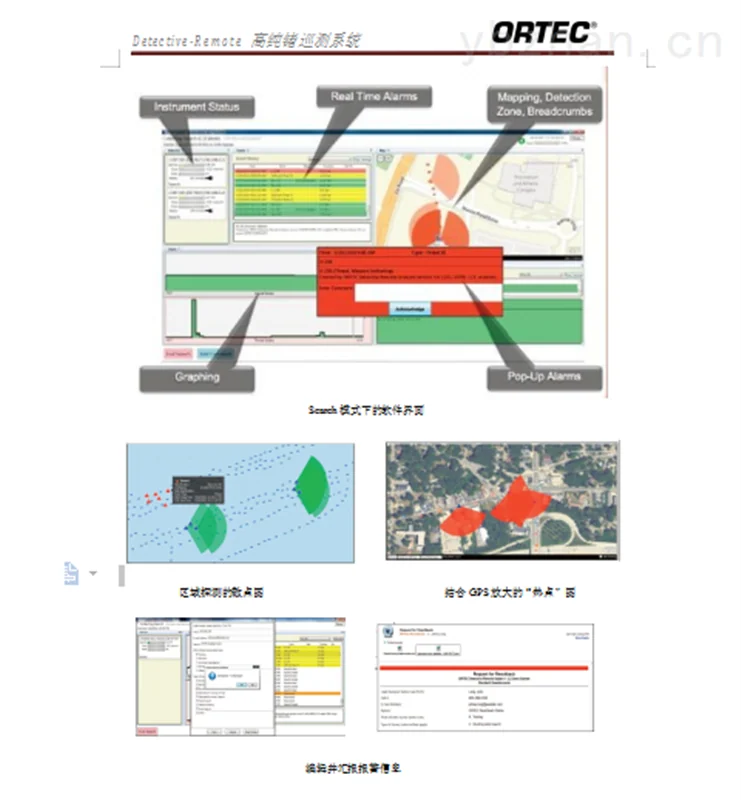

Search Software interface in mode

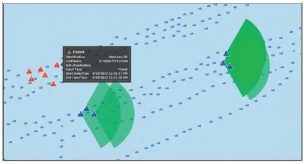

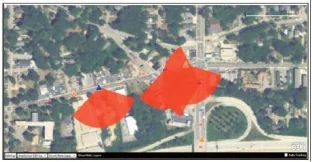

areaexploretestofscatteredpointFigure knotcombineGPS putBigof“hotpoint"Figure

Edit and report alarm information
