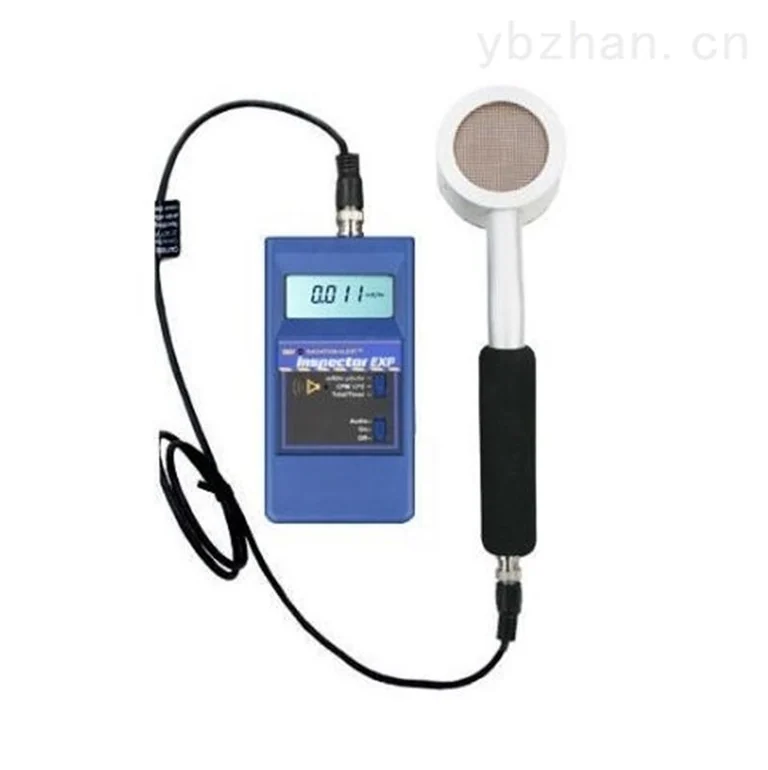

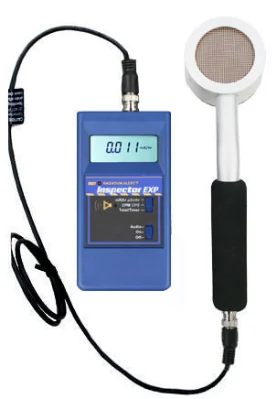

INSPECTOR EXP handheld multifunctional radiation dosimeter

INSPECTOR EXP handheld alpha, beta, gamma and X-ray dosimeter

The Inspector EXP handheld α, β, γ and X multifunctional contamination meter (α, β, γ and X radiation detector) provides you with a fast, accurate and convenient radiation detection method. It has a long external G-M counting tube probe, which effectively protects the safety of measuring personnel. It can be used for both radiation dose rate detection and surface pollution measurement. This product uses GM detection method to monitor radioactive workplaces and surfaces, laboratory work surfaces, floors, walls, hands, clothes, shoes, α, β, γ and X radioactive pollution counting measurements and environmental dose rate. It is a cost-effective radiation measuring instrument.

Features:

l Lightweight, compact, handheld microprocessor-controlled, high-sensitivity instrument

l Detectableα, β, γ, Χ rays, and can directly read the ray level readings

l Capable of count measurement, total count measurement and dose rate measurement

l Users can set alarm values by themselves and perform external calibration control

l “Safety First” calibration prevents calibration personnel from being exposed to radiation

l The detector complies with EuropeanCE certification requirements

Application:

l Check for local radiation leaks and nuclear radiation contamination

l Check your surroundings for radon radiation

l Checking the radioactivity of building materials such as stone

l Inspecting landfills and dumps for nuclear radiation hazards

l Detection ranges from medical to industrialX-ray radiation intensity of X-ray instruments

l Checking groundwater for radium contamination

l Checking underground drill pipes and equipment for radioactivity

l Monitor air and water pollution around nuclear reactors

l Check personal valuables and jewelry for harmful radiation

l Check the radioactivity of china, tableware, glasses, etc.

l Pinpointing radiation sources

l Home decoration inspection

Technical parameters:

l Four-digit LCD display

l DetectionAlpha, beta, gamma and X-rays

l Count measurement, total count measurement and dose rate measurement

l 1 minute to 24 hours timing measurement

l Maximum response energy:20Kev (γ ray), 5.8Cps/μSv/h for Cs-137 source;

l   Detection lower limit: YesI-125 is 0.02 microjus;

l efficiency (4π): Under contact: about 38% for Sr-90 source, about 5.3% for C-14 source; about 33% for P32 source; about 3% for Co-60 source

l externalG-M counting tube probe, effective diameter 45mm, mica window density 1.5-2.0mg/Cm³;

l Accuracy μSv/h: ≤500μSv/h; within range ≤10%, in the range of 500-1000μSv/h≤15%；

        CPS: ≤2500 ≤1 in CPS range0%, in the range of 2500-5000CPS≤15%；

l Measurement unit: Commonly used units for this detector (Mr/h or CPM) or SI units (μSv/h or CPS)

l Product size:150 x 80 x 30 mm (5.9 x 3.1 x 1.2 in.)

        Probe: 260 X 70 X 25 mm (10.25 X 2.75 X 1 in)

l heavy   quantity：635g (net weight)
