Detailed introduction

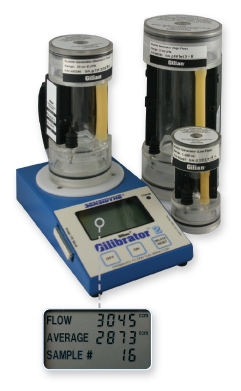

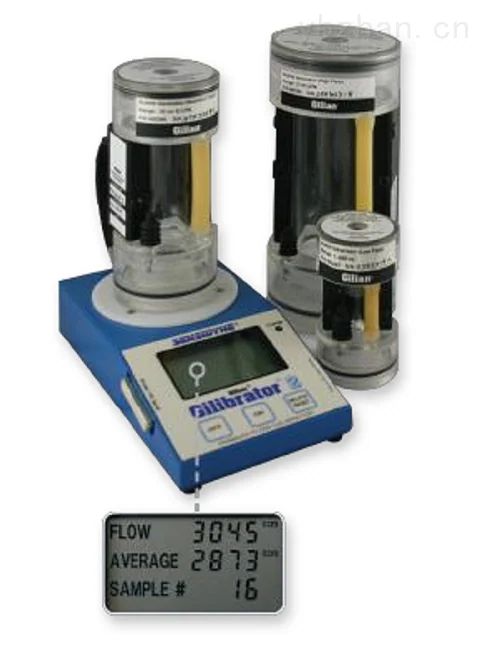

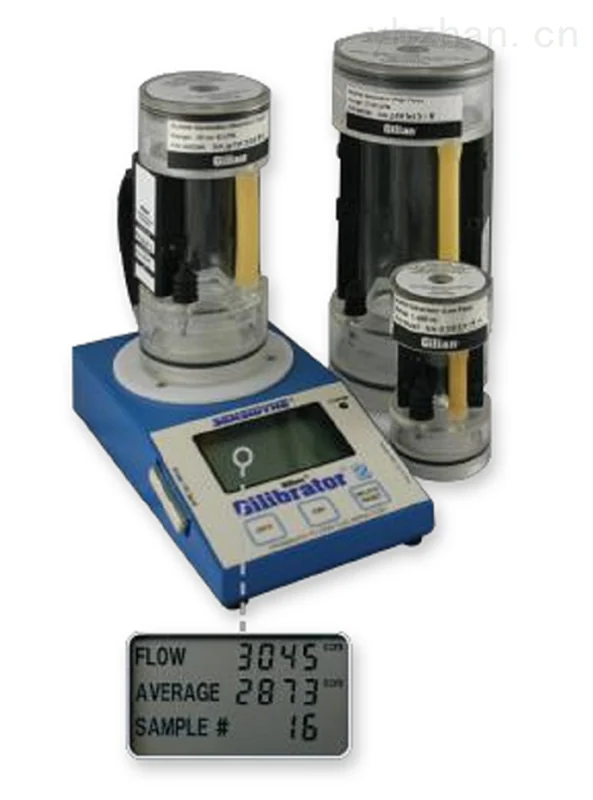

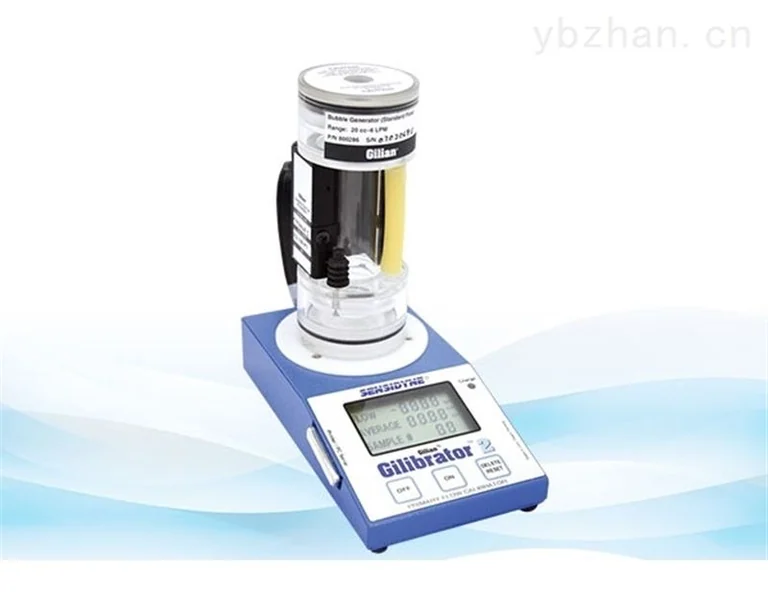

USASENSIDYNE GILIBRATOR-2 flow correction system
Product introduction:
l Cooperate with ZhihengUsing the IAQ-Pro constant current sampling pump, customers can easily and accurately calibrate the set value for the sampling pump with an accuracy of ±1%.
l Obtained national measuring instrument type approval certificate and type approval numberPA 2005-F244
l The subtitles can simultaneously display the flow measurement value, sample measurement number and average value.
l The flow measuring tank is replaceable and the control base can be shared.
l There is also a dry piston measuring tank(Range 1-5 liters/min) is available, no need to add soap solution and can be used interchangeably with the wet measuring tank, no need to change the main unit
l Standard range:20cc/min～6dl/min
Product features:
l Total measurement range: from1cc/min ~ 30dl/min, with three different ranges to choose from
l It can be used for air sampling pump calibration, flue monitoring instrument flow calibration, laboratory analysis instrument carrier gas flow calibration, and test instrument gas flow calibration.
l Portable, easy to operate, and can quickly complete flow calibration
l All certified for accuracy asNIST traceable
l
Calculate flow rate with electronic timer to reduce human error
l LCD displays flow measurement value, sample measurement number and average value
Application areas:
l Air sampling pump calibration
l Flue monitoring instrument flow calibration
l Laboratory analytical instrument carrier gas system flow calibration
l Test instrument gas flow calibration
flow cell | Applicable flow range | Accuracy | size (W×H×D） | weight |
low traffic | 1～250cc/min | ±1% | 51×102×53mm | 0.18 |
wet tank | ||||
Standard flow | 20cc～6 liters/min | ±1% | 64×152×66mm | 0.37 |
wet tank | ||||
high traffic | 2～30 liters/min | ±1% | 89×206×94mm | 1.02 |
wet tank | ||||
dry piston | 1～5 liters/min | ±3% | 102×244×191mm | 0.24 |
flow cell |
Technical parameters:
