Detailed introduction

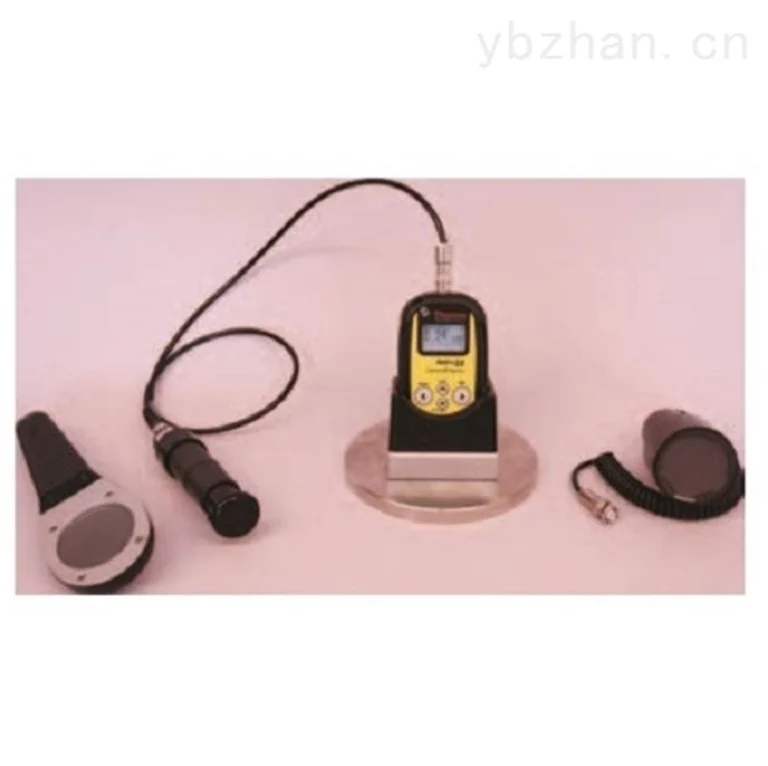

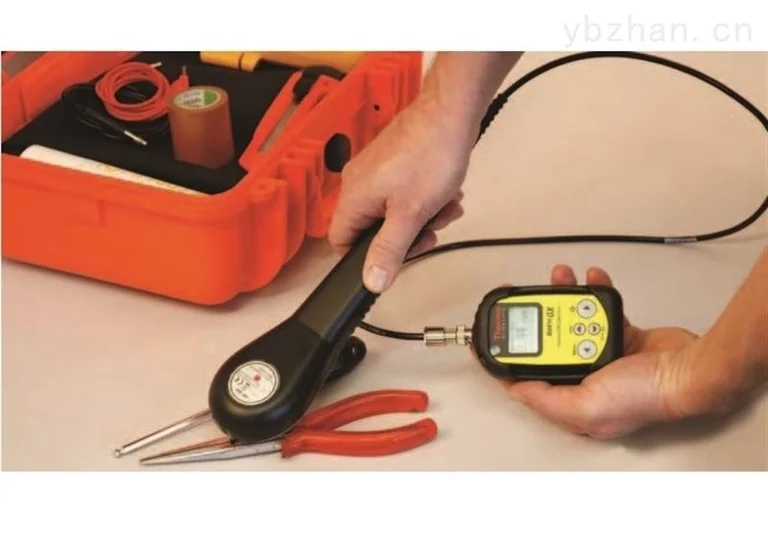

RADEYE GX Portable Radiation Meter
Product introduction:
l RadEyeGX can be connected to any GM tube
l In the submenu you can select up to16 different probe configurations
l Probes can be easily replaced on-site with one-click operation
l Only heavy 160 g
l With rubber protection, without cables
Multiple operating modes:
l counter/ Timer (preset count and time for sample measurements)
l Continuous counting rate meter mode
l dose rate mode
Technical parameters:
unit of measurement | count rate (cps, cpm), dose rate (Sv/h, rem/h), NBR |
Probe cable | RG58, up to 1.5m (59″) – MHV connector |
High pressure range | 100V…1400V, 2MΩ resistance output, generally 600V for FHZ 674 NBR probe |
Probe type | 16 types of probes can be selected according to high pressure, calibration factor, dead time correction, overload threshold, detection range, etc. |
Alarm value | Can be set2 alarm value settings for count rate, dose and dose rate, NBR |
Audible alarm | 80dB, 30cm distance (11.8″) |
working temperature | -20℃…+50℃（-4°F…122°F） |
Volume | 110mm×67mm×62mm (4.3″×2.6″×2.4″), with rubber protection, without cable |
weight | approx.160g, including 2 AA batteries and protective case |
Built-in storage | save1500 measurement data, can be read through PC program |
Maximum and average count rate and dose rate | |
The default interval is120s, calibration and instantaneous measurement values can be saved manually, and the log can store 250 operation records | |
battery life | approx.150h, using FHZ 674 NBR |
