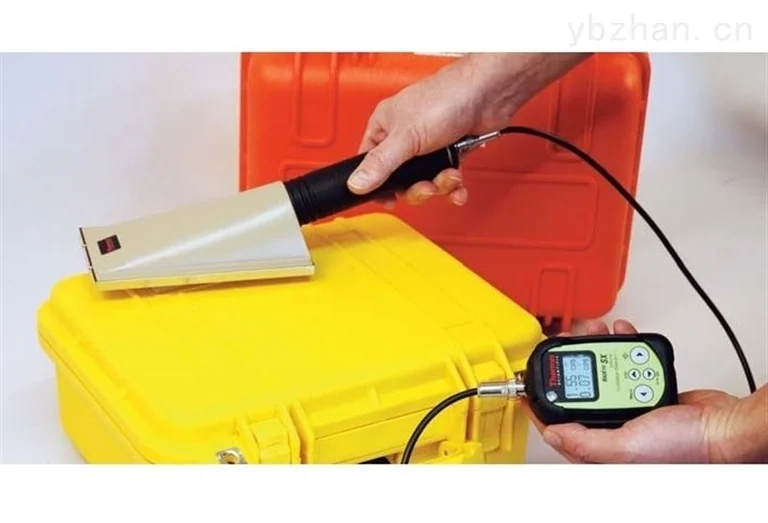

RadEye SX Portable Radiation Meter
Product features:
l Radeye SX can operate dual fluorescence, alpha/beta, NAI (TL) and plastic scintillator detectors
l Up to16 different probe configurations selectable in menu
l Easy-to-replace probes and easy-to-operate buttons
l Weight only160 g (5.6 oz) incl. rubber sleeve
l no cables,110 x 67 x 62mm (4.3" x 2.6" x 2.4")
l Conventional probe available as one and two hand operated
l Common operating modes
Product application:
l radiation detection
l gamma dose rate measurement
l Regional monitoring
l security
Technical parameters:
unit of measurement | count rate (cps,cpm), dose rate (Sv/h,rem/h） |
Measuring range | Default value:100000 cps(Extended via individual probe calibration) |
Probe cable | RG 58, longest1.5m(59*)-MHVConnector |
High pressure range | 100V-1400V，2MΩResistor output, rightFHZ 674 NBR The probe is usually600V |
Probe type | 16A variety of probes can be selected based on high voltage, calibration factor, dead time correction, overload threshold, detection range, etc. |
Alarm value | Can be set2alarm value settings, applicable to count rate, dose and dose rate |
Audible alarm | 80dB,30cmdistance (11.8"） |
working temperature | -20℃~﹢50℃ |
Volume | 110mm×67mm×62mm, with rubber protection, without cable |
weight | approx.160g,contains2FestivalAABattery and protective case |
Built-in storage | save1500measurement data, which can be passedPCThe program reads the maximum average of counts and dose rates, with a default interval of120s, calibration and instantaneous measurement values can be saved manually, and logs can be stored250operation records |
battery life | approx.150h |
