Detailed introduction

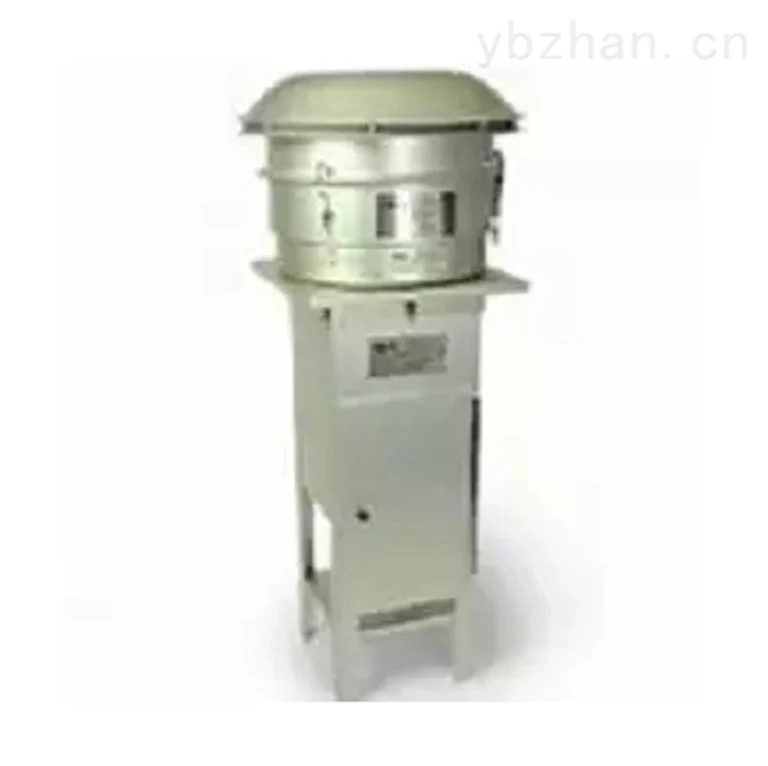

USATISCH PM10 da flow sampler
Product introduction:
l Mass flow control respirable particulate matter system
l Includes size selection entrance, anodized aluminum housing,8" x 10" probe hole, blower motor assembly, continuous flow/pressure recorder
l Combined with mass flow controllerw/20-60 SCFM Air Stainless Steel Filter Holder Flow Probe
l time indicator,30" water pressure gauge, filter media holder/filter paper cassette, (8×10), complete system
l TE-6070 high-flow particulate matter sampler, collects ambient air PM10, PM2.5 or TSP
l Provides a very flexible sampling platform with multiple options for different users
Product features:
l Automatic calibration
l Stable flow rate 99%
l Microprocessor-based control unit instantly adjusts flow to user-specified orEPA standard conditions,
l Continuously collect data, average values of temperature, air pressure, flow rate,*Minimum and maximum values.
l supportSD card
l everyAutomatically records temperature, air pressure and flow rate in 5 minutes to maintain stable flow
l The status indicator provides an alarm function, such as recalibration is needed, etc.
l withCompatible with EPA recommended sample cartridges
l CompatibleEPA Standard, EPA 40 CFR 50, Appendix B
l No need to buy expensive electronic scales for weighing
l UseVenturi flow control device produced by TISCH for sample flow measurement
l Use directlym3/min unit, in line with US EPA2.5 data reporting requirements
l The PM2.5 sampling head uses the same quality assurance sampling procedures as the existing PM10
l Sampling methods remain basically unchanged and technical staff do not need to be retrained.
Technical parameters:
product specifications | |
Intake dust removal efficiency | USEPA Reference MethodRFPS-0202-141 |
flow rate | 40 cubic feet (1.13m³) continuous |
filter media | Micro quartz filter material8" x 10" for respirable particulate matter (TE-QMA) |
flow control | VFC（TE-10557PM10） |
Motor fan | Level 2 Motor 1.0 HP 110V/60HZ (TE-115923) |
water pressure gauge | 30" Water Pressure Gauge (TE-5030) |
flow indicator | traffic/Pressure Recorder (TE-5009 with Chart (TE-106) |
elapsed time indicator device | Solid state electronic timer programming with digital elapsed indicator (TE-302） |
Altitude application | Arrive10,000 feet elevation |
Ambient temperature application range | -30 to +50ºC |
Relative humidity applications | 0 - 100％ |
Sampling delay start range | 0 - 7 days |
Starting current | 20 amps |
Running Ampere | 7 amps |
Size | 45.5" x 22.5" x 20" / 50 lbs 32" x 32" x 25.5" / 56 lbs 28" x 21" x 10" / 19 lbs |
Motor product specifications | 110V/60HZ€" Part Number TE-115923 |
220V/50HZ€"Part No. TE-116111, Level 2, Ball/Oil Bearing Through-Flow Discharge |
