Detailed introduction

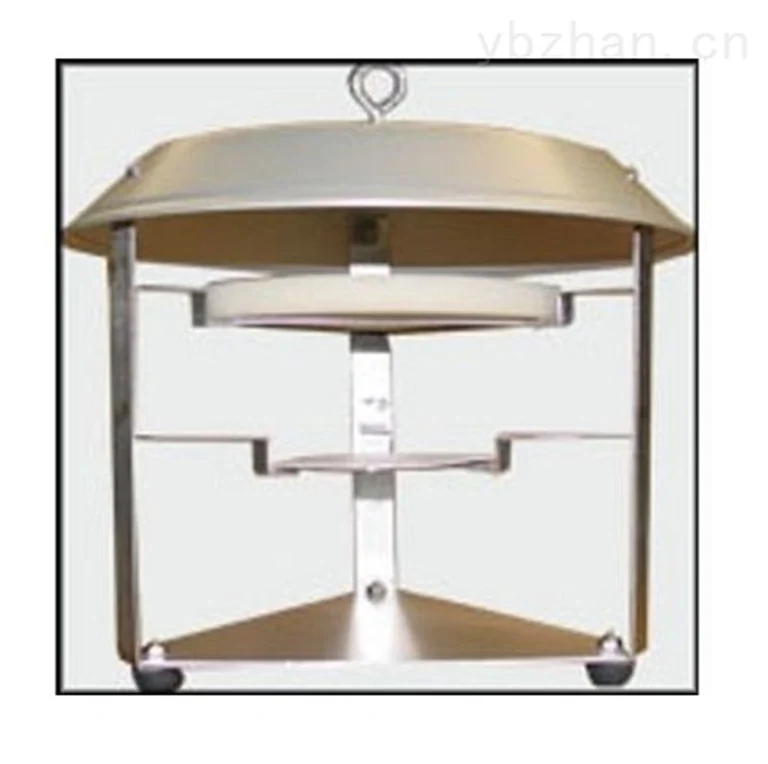

USATISCH TE-200-PAS Passive Atmospheric Sampler
Product introduction:
l TE-200-PAS outdoor passive air sampler and TE-300-PAS indoor passive air sampler are widely used to measure the concentration of persistent organic pollutants in the air.
l PUF disk collection, no power supply required
l Suitable for remote outdoor use,PUF (polyurethane foam) disk collection method does not require electricity to operate
Product features:
l Structural support for securing sampler housing
l Attached using two thumb black nuts"L" shaped bracket to passive air sampler housing and is secured to the lower chamber
l The sampler housing should be placed above the ground2 meters or more (higher is better), with smooth open area airflow
l Suitable structurally supported fences or posts
l fixedStructural support for "L" shaped brackets, cable ties or other appropriate fasteners provided so the house will not crack or vibrate
l Installation in sampler housingPUF disk
l between its upper and lower chambers"S" hook opens the case
l Inside the housing is a stainless steel support ring chamber which is securely fastened in the lower chamber and serves to suspend within the housingPUF disk
l using tweezers1-PUF disk taken out of L tank
l thePUF disks will not be in direct contact by hand
l willPUF disc support ring under the rod
l Close the sampler housing and reconnect between the upper and lower chambersS-shaped hook
l Write the start date and time of the sampling period and sampling location on the bottle
l deployPUF disk for three months [Note: For a blank field, remove the PUF disk and deploy it after a minute or two and return it to the jar
l It's marked as a field that is empty
l Store the blanks in the tank area in a cool place until shipment
l If storing area blanks or samples in the refrigerator, make sure there are no chemical standards in the refrigerator
l Store jar in a safe, clean place untilPUF disk retrieval
l it will be used for shipsPUF disk samples sent to laboratory for analysis
l take outPUF disk in sampler housing
l During the three months of sampling, the shells were removed using forcepsPUF disk and transfer it to the corresponding jar
l Write the end date and time of the sampling period on this bottle
l Make sure the lid is tight
l Use PTFE tape to ensure a good seal
l Store the jars with samples in a cool, dark location until shipped
l When transporting cans, make sure they are well filled and compact to protect them from damage
Technical parameters:
l Outdoor passive sampler housing
l L bracket
l steel rope
l Store in glass bottlePUF disc
l Clean laboratory gloves
l pliers(2 pairs)
l Teflon tape
