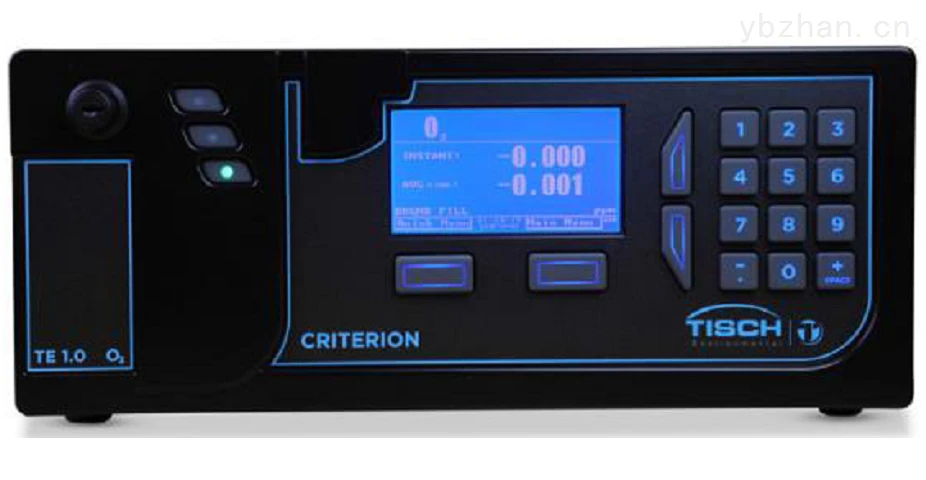

American TISCH TE-1.0 Ozone Gas Analyzer
Product model:
Brief description:The ozone gas analyzer (TE-1.0) has passed US EPA certification, certification number: EQOA–0809–187. Rack-mounted design provides accurate and reliable measurement data. The measurement principle is to measure O3 in ambient air through the universally recognized non-dispersive ultraviolet absorption technology (NDUV). The lowest detection line is less than 0.5ppb, and the measurement range is 0~20ppm.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES
Detailed introduction

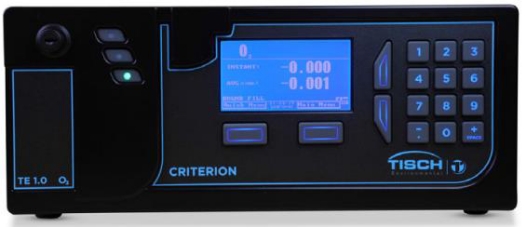

USATISCH TE-1.0Ozone gas analyzer
Introduction:
Ozone gas analyzer (TE-1.0) passed US EPA certification, certification number: EQOA–0809–187. Rack-mounted design provides accurate and reliable measurement data. The measurement principle is to measure O3 in ambient air through the universally recognized non-dispersive ultraviolet absorption technology (NDUV). The lowest detection line is less than 0.5ppb, and the measurement range is 0~20ppm.
Product features:
l Performance guaranteed;
l Full-scale data storage and remote viewing for more than200 operating parameters;
l Various means of communication:RS232, USB, Bluetooth, analog output, TCP/IP;
l Removable hard drive saves more than10 years of data and operating parameters can be easily imported;
l Update hardware;
l Minimize on-site maintenance time through remote instrument control, diagnosis, and calibration;
l Use Bluetooth connection to control, view, download, and send data;
l internal12VDC voltage is safer;
l Rack sliding design allows access to internal components and allows the analyzer to be taken out of the cabinet;
l The system power is reduced and can be used in a wider temperature range;
Technical parameters:
Concentration unit: | Optionalmg/m³、μg/m³、ppm、ppb、ppt |
quantity Cheng: | self-conversion range0~20ppm (analog range 0~50ppb——0~20ppm) |
Noise Sound: | ＜0.25ppb |
Low detection line: | ＜0.5ppb |
Fine Degree: | 0.5ppb (reading less than 100ppb) or 0.2% of reading value |
Zero point drift: | 24 hours＜0.3ppb, 7 days＜0.3ppb |
Range drift: | Less than 0.5% of the reading value for 7 days |
response timeT95%： | 30 seconds |
Standard temperature and pressure reference values: | 0℃、20℃、25℃ 101.3KPa |
Sample flow rate: | 500ml/min (optional 750ml/min) |
Operating temperature range: | 0~40℃ |
size (H*W*D）： | 175mm*429mm*638mm |
net Heavy: | 17.2Kg |
electricity source: | 198~264VAC, 85VA (maximum startup), 65VA (normal operation) |
pass News: | USB port, Bluetooth, TCP/IP network connection, RS232 port 1: digital communication, RS232 port 2: multi-drop port |
association Proposal: | MODBUS RTU/TCP |
Input and output: | 25 pin input/output port |
Menu selection of current or voltage output | 0~20mA, 4~20mA or 0~5VDC (0~10VDC optional) |
Menu selection0%, 5% or 10% compensation | Menu selection0%, 5% or 10% compensation |
Self-conversion range: | 0~50ppb——0~20ppm |
Data logging (removable hard drive) | Data logging (removable hard drive) |
Instant data acquisition interval: | 1, 3, 5, 10, 30 or 60 minutes |
save Storage: | 4GB memory can store 12 parameters per minute for up to 10 years |
Yes choose: | External AC pump (can operate3 analyzers, except NOx) |
