Detailed introduction

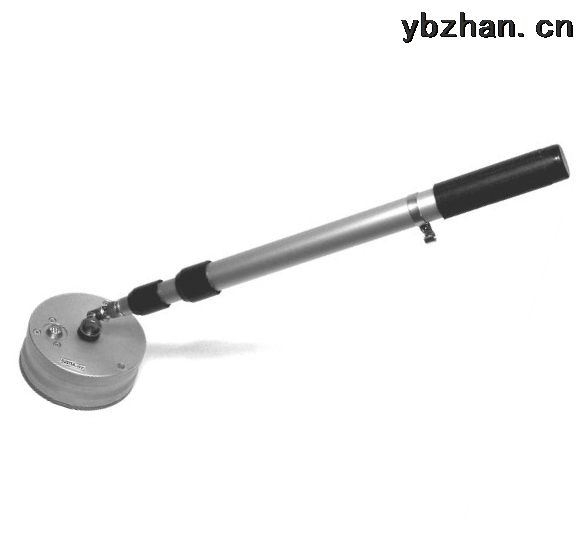

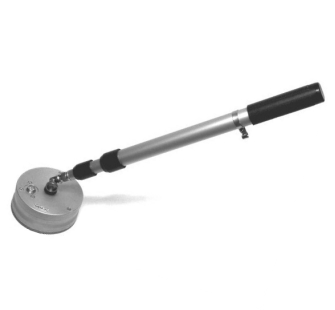

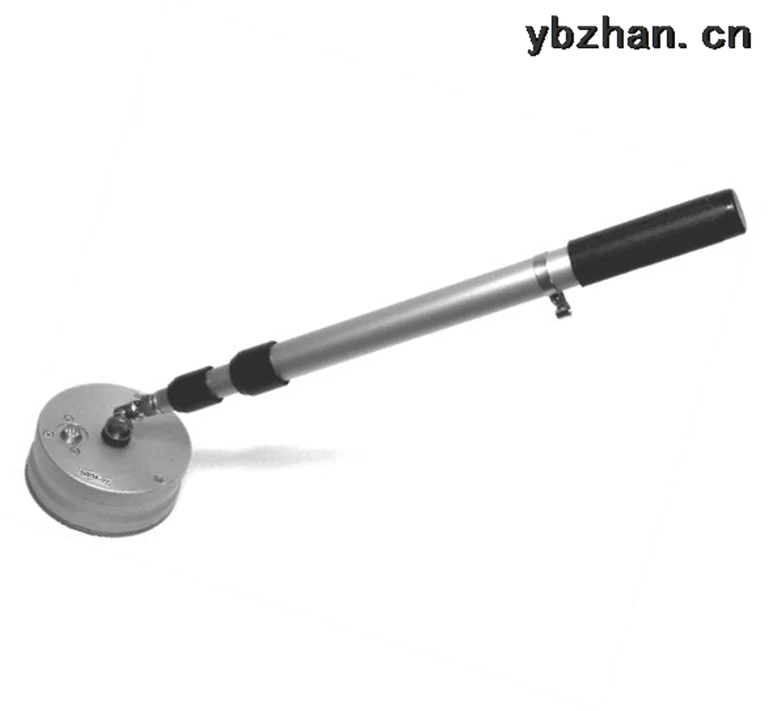

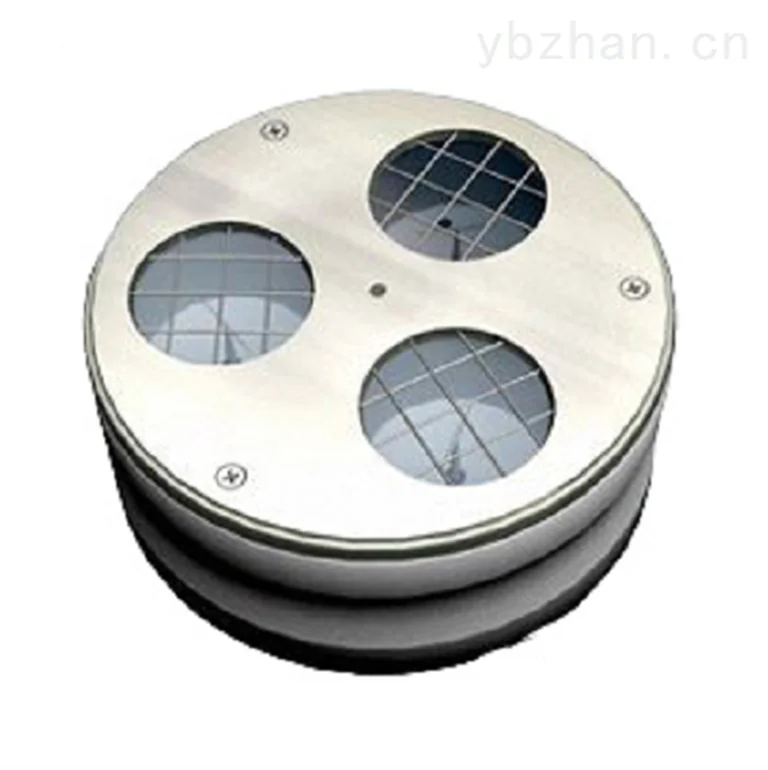

BDPA-07typeαRay detection unit
Purpose:
◆looking forαradioactive source
◆Measuring surfaceαparticle flux density
Application:
◆asMKS-07“:POSHUK"Search for a detection unit of a radiation dosimeter
◆As a probe unit in an automated system for radiation control
Performance indicators
surfaceαParticle flux density measurement range | 1/（cm2·min） | 0.1-105 |
surfaceαMaximum basic relative error of particle flux density (relative239PuThe confidence probability calibration coefficient is0.95） | % | 15+10/A Ais the value of the measured neutron flux density |
detector | - | corona discharge counting tube |
Mica thickness | μm | 10-11 |
αParticle detection efficiency | % | 24-32 |
Detector area | Cm2 | 21 |
Operating ambient temperature range | oC | -25~+55 |
GammaRadiation maximum measurement range (excludingαParticles cause ancillary errors) | mR/h | 10.0 |
Maximum additional allowable error range due to temperature changes | % | 5%/10oC(to20oCas a reference) |
Probe size | Mm | Ø105×56 |
Probe weight (excluding telescopic rod weight) | kg | 0.65 |
Note: The weight without telescopic support rod is0.036kg
Shipping list
◆BDPA-07αparticle probe
◆Operation manual
◆Packing box
