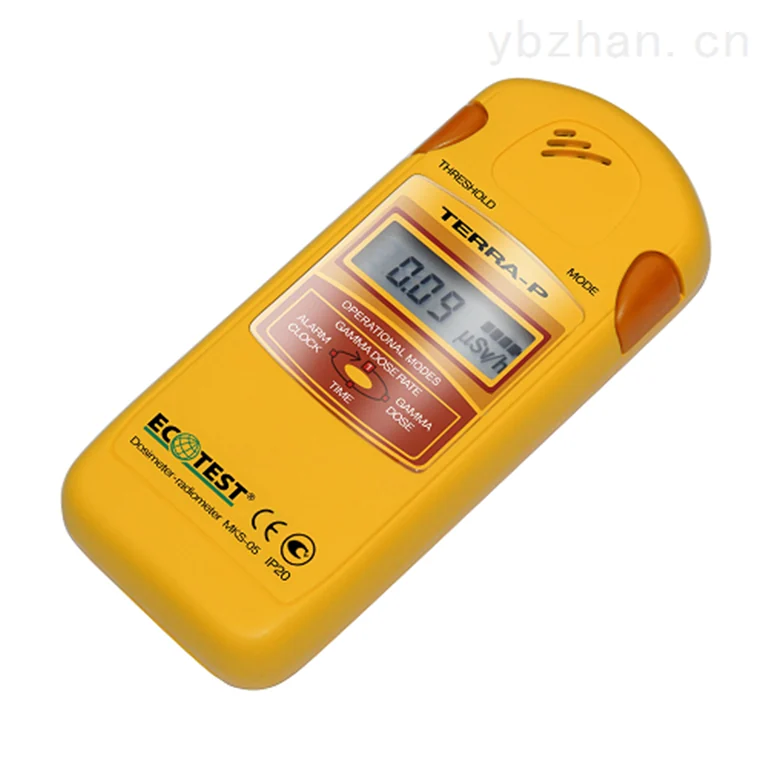

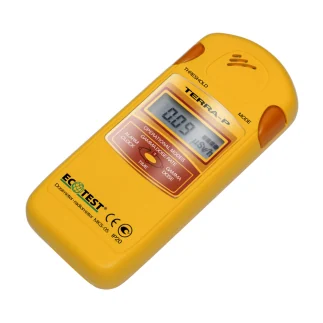

MKS-05P multi-purpose personal radiation dose alarm

MKS-05P（Terra-P)Multi-purpose personal radiation dose alarm

Product introduction:

MKS-05P （Terra-P) Personal radiation dose alarm can measureγ、χRadiation radiation environmental dose equivalent rate, dose equivalent andβRadiation surface contamination. Suitable for radioactivity evaluation and testing of civil buildings, industryX、γNon-destructive testing, radiation testing, radiological medical site radiation testing, cobalt source, electron accelerator irradiation site radiation testing, radioactive laboratory radiation testing, nuclear facility surrounding environment radiation testing, soil surface radiation pollution testing, agricultural product radiation pollution testing and other fields.

Multipurpose:

◆γ、χ dose rate alarm
◆Personal cumulative dose monitoring and alarm device
◆Ray patrol function, with sound source finding
◆Can be measuredβRadiation surface contamination.　

Applicable occasions:

◆Used for radioactivity evaluation and testing of civil buildings,
◆Personal dose monitoring alarm
◆IndustryX、γNon-destructive testing radiation testing,
◆Radiation testing in radiological medical facilities,
◆Cobalt source, electron accelerator irradiation site radiation detection,
◆Radioactive laboratory radiation detection,
◆Environmental radiation detection around nuclear facilities,
◆Soil surface radiation contamination detection,
◆Radiation contamination detection of agricultural products
◆Radioactivity detection of ores and building materials

Features

◆Three independent measurement channels are displayed alternately on the same LCD screen.

◆ Built-inγ, βsensitiveGMcounter

◆ Automatically adjust the measurement time interval and measurement range.

◆The sound indicates each measuredγradiation events andβparticles.

◆Dose rate audible alarm limits can be set

◆digital display.

◆two sectionsAAA 7No. battery.

◆Four-segment battery level indicator.

◆Shockproof housing

◆Compact size

Technical specifications:

◆Measuring range and relative basic error:

◇χ－γdose equivalent rate (137Cs)：0.1～999.9 µSv/h , error:±25%

◇χ－γdose equivalent(137Cs) ：0.001～9999mSv , error:±25%

◇βradiant flux density (90Sr+90Y)：10～100 000 (сm²·min)-1 ;Error:±20%

◆Dose equivalent accumulation interval and error:1minutes~100hours, every24The hour error does not exceed±0.1seconds

◆χ－γMeasure energy range and energy response:0.05～3.0MeV；±25%

◆βRadiation:0.5～3.0MeV

◆Measurement interval:5～70seconds

◆Battery life:6000hours

◆Operating temperature range:-10°C～+50°C

◆Weight:0.2kg

◆Dimensions:120×52×26mm
