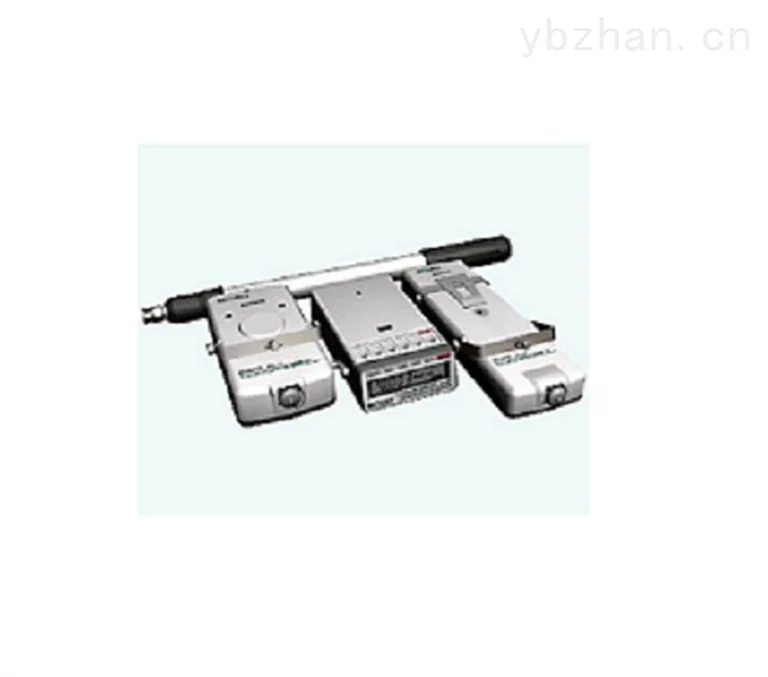

MKS-07 universal radiation detector

MKS-07Type Universal Radiation Detector

Suitable for fire departments, homeland security departments, emergency response departments, environmental protection departments, nuclear power plants, accelerators, isotope applications, industryX、γConducted in the fields of non-destructive testing, environmental monitoring around nuclear facilities, etc.α/neutron/β/γ/ΧMeasurement of rays.

◆Measureγ、χRadiation radiation environmental dose equivalent rate and dose equivalent

◆MeasureβRay surface contamination

◆measurableαRadiation surface contamination (optional)BDPA-07detector)

◆Can measure thermal neutrons and fast neutrons (optional)BDPN-07detector)

Features:

◆GMcounter

◆With analog indication of radiation intensity

◆Up to4096Group data storage space, data can be output to the computer through the infrared interface;

◆Historical records can be queried on the digital display;

◆Accurate measurement channels indicate1～99Measurement average over minutes with measurement mode activated.

◆measurable softβray

◆Programmable settingsγdose equivalent rate, dose equivalent alarm threshold andβRadiation alarm threshold

◆Over-threshold sound alarm function

◆Digital backlight display function

◆Multi-level battery level indicator

Technical indicators:

◆Measuring range and relative basic error

◇Χ-γdose equivalent rate(relative to137Cs)：0.1µSv/h～ 2.0Sv/h，±15%

◇Χ-γdose equivalent(relative to137Cs)：1.0µSv～ 9999mSv; ±15%

◇βRadiant flux density:(relatively90Sr+90Y)：5～100 000 1/(cm2·min)-1;±15%

◆Energy range and energy response

◇Χ-γRadiation:0.05～3.0MeV;±25%

◇βradiation : 0.15~3.0MeV

◆Measurement interval:2～5seconds

◆Battery life: no less than100hours

◆Operating temperature range:-25°C～+55°C

◆Weight and volume

◆Host:154*86*35mm ，05Kg

◇γRadiation detection unit:214*80*36 ，0.6Kg

◇βRadiation detection unit:154*82*43 ，0.5Kg

◇Instrument transport protective box:445*255*85，4.2Kg

Shipping list:

◆MKS-07Host

◆γradiation detection unit,βRadiation detection unit

◆telescopic pole , connecting cable, battery charger

◆Carrying bag, operating manual, technical instructions

◆Infrared data reader and software (optional)

◆BDPA-07 αParticle detector (optional)

◆BDPN-07Neutron detector (optional)
