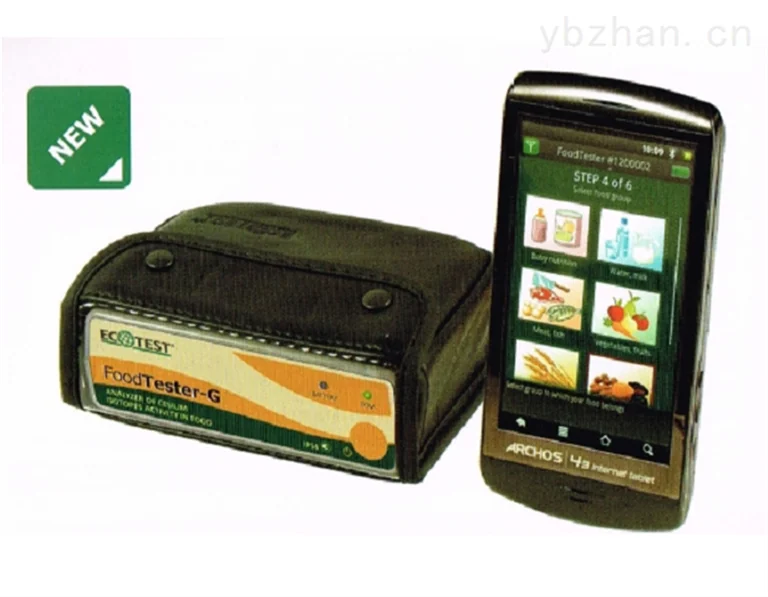

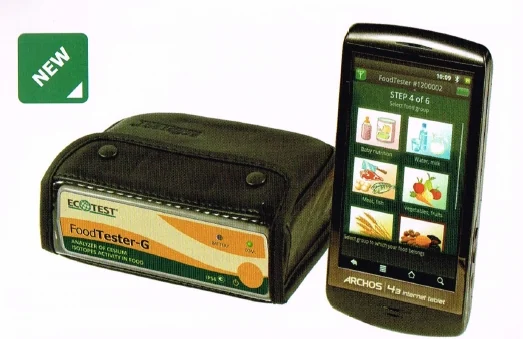

Cesium Isotope Activity Food Analyzer
Product model:
Brief description:Department of use: Household use Advantages: Portable and practical. No special training is required for users. Interactive operation mode. Food does not require special containers. Food can be tested by placing it in. Food does not require special preparation (food can be placed in a container or wrapped). No special protection is required.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES
Detailed introduction
Cesium isotopeActivitiesfood analyzer
Food testing-Gtype
Style! ! !
Use department: Household use
Advantages:Portable and practical
Users do not need special training, interactive operation mode
Food does not require special containers, just put the food in for testing
No special preparation of food is required (food can be placed in a container or wrapped)
No special protection required
Purpose of use
Average test gamma radiation environmental dose (DER)
Testing in foodisotopes of cesiumactivities and calculate their specific activities
delivery kit
Detection unit based on gamma radiation scintillation detector (CSJ-scintillator-photodiode)
Tablet PC with installedAndriodOperating system and specific software
Data exchange via Bluetooth
Specifications
gamma radiationDERMeasuring range-from0.1μSv/hArrive100μSv/h；
Registered gamma radiation energy ranges from0.05MeVArrive3.0MeV；
Gamma radiation measurementDERError-15%；
smallest among foodsisotopes of cesiumActivity detection reached0.15μSv/h；
The background level is50Bq/kg(reach0.05μSv/hbackground level-10Bq/kg）。
Duration of operation
detector-40hours
Tablet-8hours
detectorIP54entrance protection rate
Operating temperature range
The detector temperature is from-20оСArrive+40оС
Tablet-According to the specifications provided by the manufacturer
Weight and dimensions:
Detector (without box)-no more than0.4KG, corresponding110X36X83mm
Tablet-Depends on model
Two operating modes
gamma radiationDERMeasurement mode (zuiyou mode)
Food testing mode
Food testing mode
Testing in foodCesium isotopeActivities
Calculate the amount present in foodCesium isotopeActivities
Food classification testing
children's food
water, milk
Meat, eggs and milk
fruits, vegetables
Cereals
dry food
Dried herbs (tea leaves)
Food testing-6steps
Step 1: Choose a background compensation method
Step 2: Put the food into the testing instrument
Step 3: SearchCesium isotope
Step 4: Select food category
Step 5: Choose the food form (boxed/with packaging)
Step 6: Select food size (boxed/with packaging)
Cesium isotopeActivity calculation results
