Detailed introduction
United KingdomPARTECH 750 Portable Sludge Concentration Meter
Introduction:

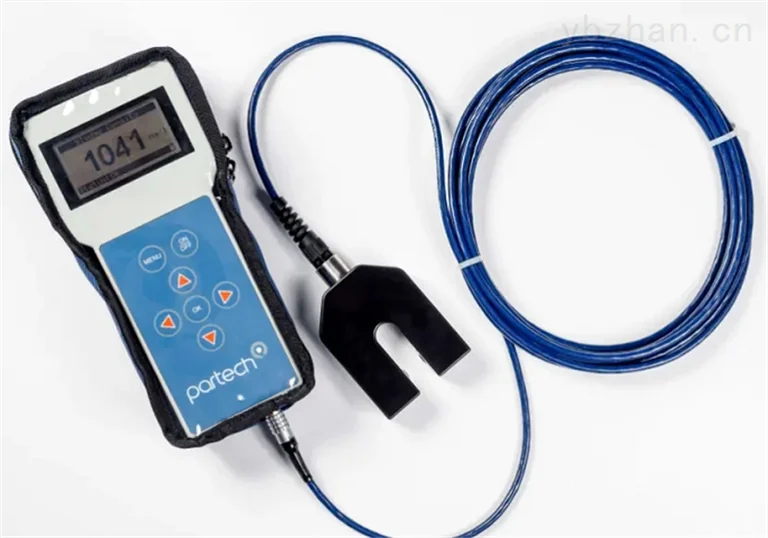

The 750 Portable Sludge Concentrator provides a fast, accurate, and simple solution for sludge concentration, sludge interface, and turbidity measurements that is simple and convenient to operate. No professional training is required. The sturdy IP65 protective shell and wear-resistant design allow users to use it with confidence without worrying about falling into the water or being hit. The high-contrast LCD display has a large operating temperature range and will be very clear at all times.
sinceSince its launch in 2004, our 740 portable phone achieved record shipments in 2018, which was launched on a 1,000-unit basis.
The new handheld water quality monitor is a simple, reliable and accurate tool that can measure a complete set of water quality parameters with one unit.The 750 was designed to be expanded by allowing a set of interchangeable water quality sensors to be connected via a jun cable connector, initially to include suspended solids measurement from water inlet to discharge, both important in the activated sludge process.
The rugged unit has a built-in data logger for storing at least500 data points. An easy-to-use interface, multiple sensor options and field-ready design enable the new monitoring market leader for on-site monitoring of TSS, turbidity and sludge levels.
The 750 can also be used to test the sludge interface. The sensor is slowly immersed. When the sludge concentration reading exceeds the normal range by a high degree, the sensor is considered to have entered the settled sludge. Due to its broad, flexible application, as well as its accurate measurement results, the 750 Portable Sludge Concentrator is the ideal device for sludge and turbidity treatment process engineers.
Product features:
l wide sensor range
l Up to10 different calibration points
l Compact and sturdy design
l British original import
Application areas:
l mixture
l Return activated sludge
l Water detection
l Surface water monitoring
l sewage treatment plant
l Comprehensive measurement of sludge in processes such as food and brewing industries
l activated sludge tankMLSS measurement,
l Flocculation dosing control and discharge waterSS measurement,
l Industrial wastewater treatment plants, paper industry, mining.
Advantages:
l Quick and easy sludge concentration measurement
l Multiple points only require one device
l Portable sludge concentration meter technical indicators -The new upgraded model can install two probes at the same time, and optionally multiple probes (sludge concentration, pH, redox, DO) users will be able to quickly and easily upgrade their 750w
Power supply: | Built-in rechargeable battery,90-264VAC （47-63Hz） |
Display: | 4.5-digit graphic LCD display |
Measuring range： | 0-10000mg/L、0-30000mg/L(Two probes available) |
Measurement units: | mg/l g/l ppm FTU NTU %SS. |
Display resolution: | ±1% |
Accuracy： | ±5% |
Operating temperature: | Host:-20℃ — +60℃ |
Probe:0℃ — +60℃ | |
Electrode principle: | 880nm infrared scattering attenuation principle |
Full machine protection level: | IP65, electrode protection: IP68 |
Electrode wire length: | 5 meters (marked every M) |
Response time: | Instrument can be set in 0.5 seconds |
Flow rate: | Water flow has no effect on it |
Weight: | 1.1kg |
Host size | 224×106×29cm |
Electrode wire length: | 5 meters (marked every M |
Technical parameters:
Standard configuration:
l Host
l electrode
l cable
l Built-in rechargeable battery
l Field carrying bag
l Instructions in Chinese and English
l Quick start manual
