Product introduction:

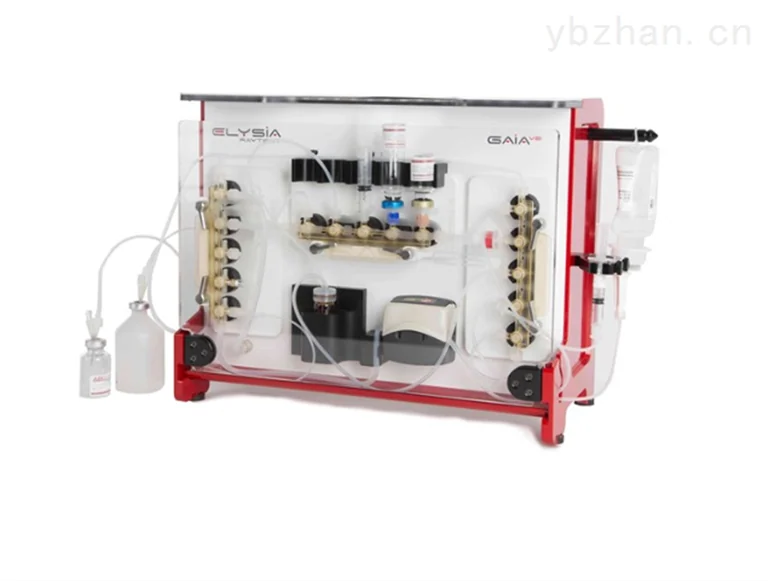

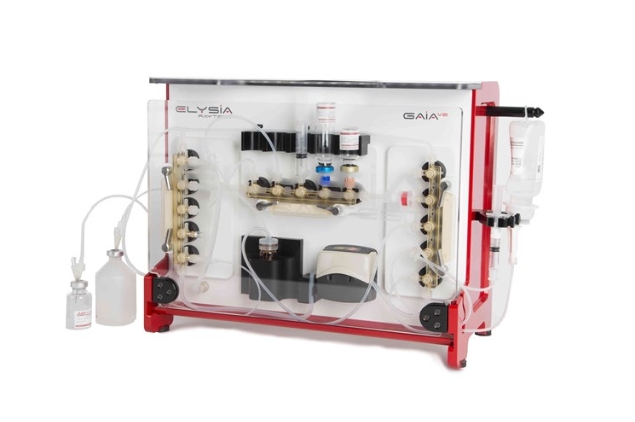

 GAIA V2 is our second generation synthetic unit for labeling peptides containing radioactive metals (e.g. 68GA) such as DOTATOC or PSMA. The design has been redesigned to minimize size and optimized to provide fast, simple and intuitive production of universal radiotracers. The location of connections has been modified to reduce the need for hot cell space and improve ease of maintenance.

Product features:

•Short synthesis time, reducing yield loss due to decay

•No gas required

•High-performance electric heating module for fast and efficient labeling

•Multiple radioactive detectors to enhance the labeling process and enable efficient production quality review (detection development trend)

•Integrated filter integrity testing reduces quality control time and costs

•Simple and reliable mechanical structure reduces downtime and maintenance costs

•Functional units (pumps, valve gears, reactors…) can be completed in a few simple steps.

Technical specifications

Correspondence:USB or LAN (computer Windows 7 or higher, 32 or 64 bit)

Power supply:230V

Power consumption:230V/100VA

Working conditions: maximum relative humidity70%, temperature 10-40°C

Overpressure stability:5bar

components

Peristaltic pump:+/-1 — +/-300rpm with rotation and lid sensors

Number of valves:3 x 5

Syringe holder quantity:2

Number of reactors:1

sensor

Radioactivity detector:3 process control detectors

1 fracturing detector

Air pressure sensor:1

Pressure Sensor: Accuracy200 to 7000mbar: +/-10mbar

Reaction cooling and heating

Dynamic range:10-150°C

Temperature accuracy:+/-1.0°C

Heating speed:25°C-100°C<50s

Cooling rate:100°C-30°C<7s

SizeL379xW195xH307 mm (L14.92" x 7.67" x 12.08")

with entrance/Exit: L440mm (17.32’’)

Maximum weight:25 kg
