Detailed introduction

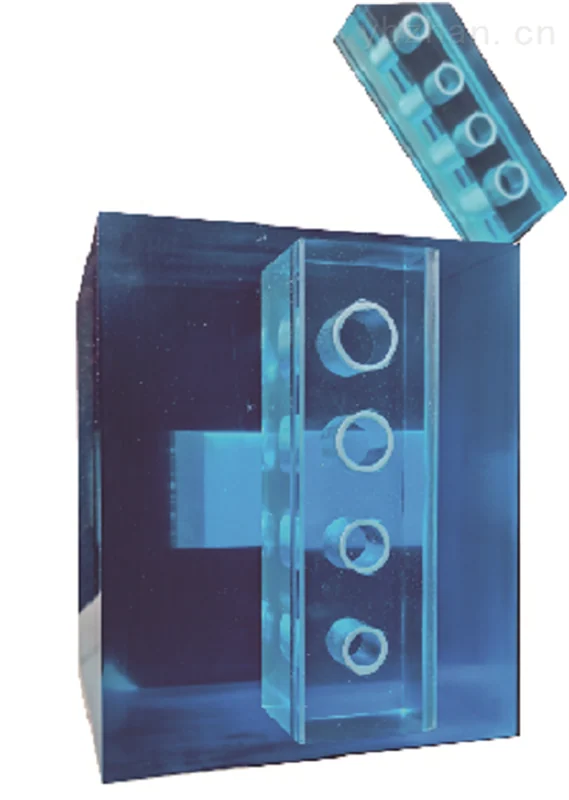

KR902 X, γ-ray bone density phantom
Product introduction
Limb bone density phantom (limb phantom for short) is made of radiation-equivalent solid water material [made of polyethylene (CH) and a small amount of magnesium oxide (MgO) and calcium carbonate (CaCO) composition] and bone mineral [hydroxyapatite (CaOH（PO))] Made of bone tube.
The thickness of the phantom and the cylindrical bone sample simulated the measured site and cylindrical bone.
A.1.1structureA.1.2Equivalent bone cylinder sample parameters (TableA.1）

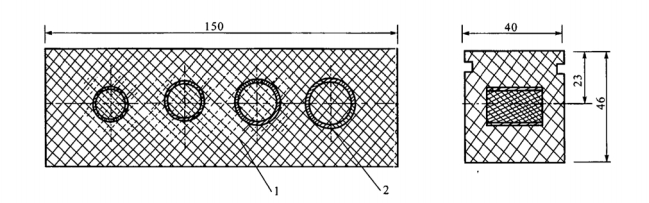

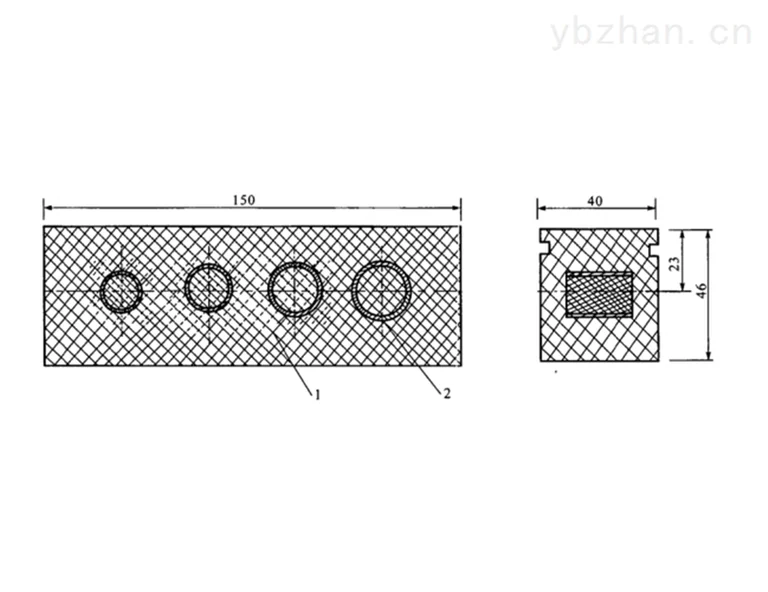

FigureA.1 Body membrane structure of limbs
tableAlBone sample parameters
Bone cylinder sample number | 1 | 2 | 3 | 4 |
bone transverse diameterBW/cm | 0. 800 ±0. 005 | 1.071±0. 005 | 1. 316±O. 005 | 1. 6O8±O. 005 |
cylindrical BMC/g - cm-' | 0. 330±0. 002 | 0. 770±0. 002 | 1. 320±0.002 | 2.110±0.002 |
lumbar spine phantomDXAThe bone densitometer can be used to measure the bone density of the whole body or a single part. The phantom simulates the measurement environment of the waist in the anteroposterior position and provides the isolated bone mineral content value of the lumbar vertebrae, so it is referred to as the lumbar vertebra phantom.

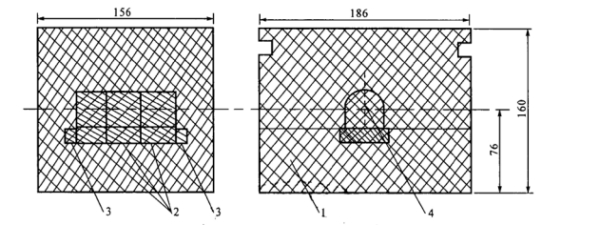

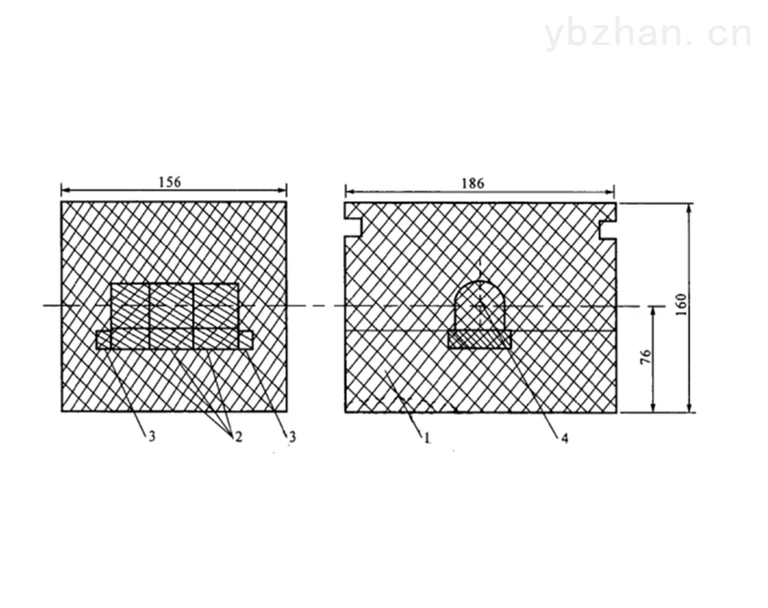

FigureA.2lumbar body membrane structure
tableA.2Vertebral sample parameters
Simulated vertebra number | L2 | L3 | L4 |
bone densityBMD/g • cm² | 0. 500 ±0. 002 | 1.000±0. 002 | 1. 500±0. 002 |
