Detailed introduction
DentistryX-ray machine detects phantomMotif
Product introduction

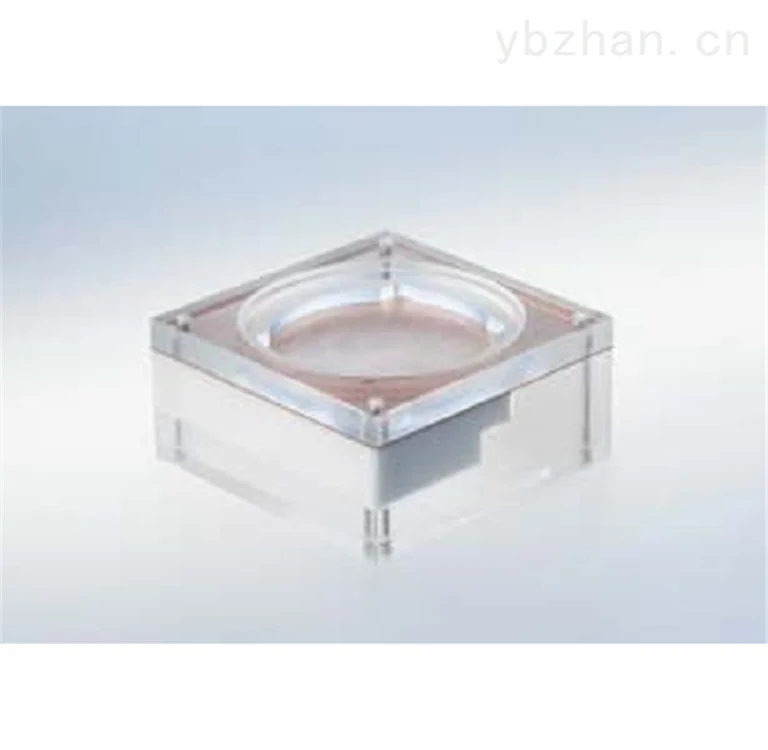

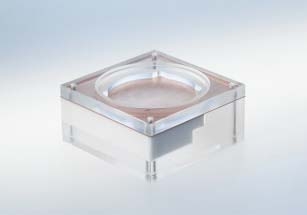

DigiDent Dental testing phantom
For acceptance testing and stability testing of dental digital radiology equipment, in compliance withIEC
61223-3-4/IEC 61223-2-7 and DIN 6868-5/DIN 6868-151 standards.
Model specifications:

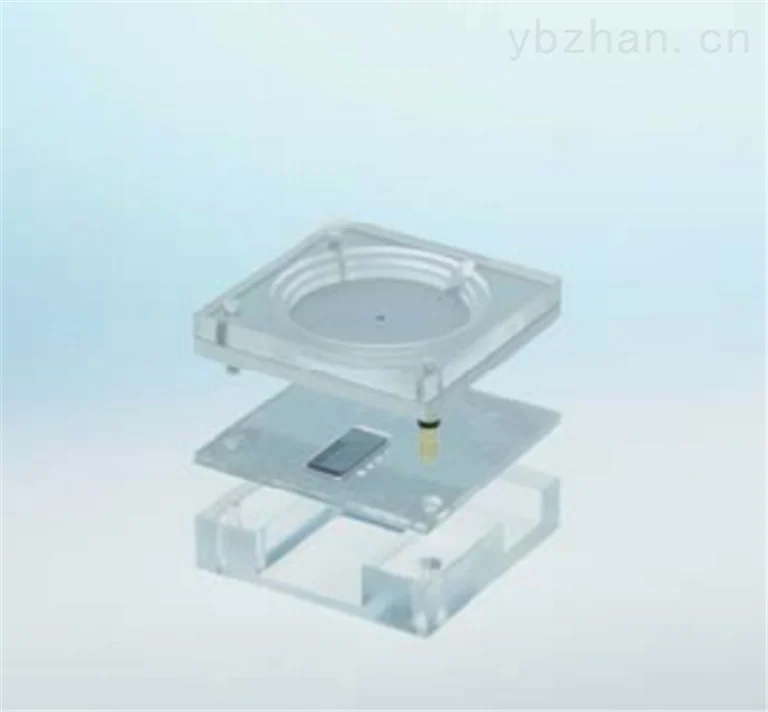

The upper plate contains central annular grooves of different sizes for placing tapered collimating cylinders of different sizes. and
6mm thick aluminum absorber
The mid-plate is a resolution test phantom (many types are available, see below) and Yu test
measuring contrast0.5 mm aluminum plate (with drilled holes of different depths)
There are gaps on the base plate for placement of dose detectors and sensors
Available mid-plate resolution test phantoms:
DigiDent U Dental resolution test phantom Serial number:VD0903150
Resolution range:2.0～6.3 Lp/mm arranged obliquely
DigiDent P Dental resolution test phantom Serial number:VD0903154
Resolution range:1.6～3.0 Lp/mm arranged obliquely
DigiDent I Dental resolution test phantom Serial number:VD0903153
Resolution range:4.0～8.0 Lp/mm arranged obliquely
DigiDent G Dental resolution test phantom Serial number:VD0903151
Resolution range:2.5 and 5.0 Lp/mm in vertical and horizontal arrangements
Unident F dental phantom Serial number:VD0903170
Dental radiology inspection phantom using film
The phantom contains two tapered collimation barrel slots of different sizes, with a
0.3 mm copper foil and two polytetrafluoroethylene (PTFE) steps
(8 and 16 mm)。
