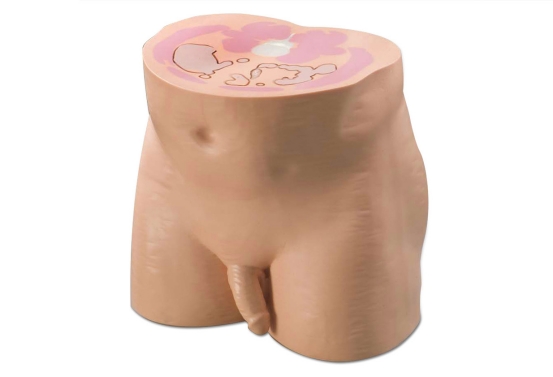

CIRS 801-P male simulated pelvis phantom
Product model:
Brief description:The CIRS 801-P male pelvic phantom is the most realistic tissue-equivalent phantom we offer. This phantom is designed for use in diagnostic radiology and radiotherapy for imaging dosimetry teaching and demonstration applications. All anatomical dimensions of the human body model are based on the Visible Human Project (VHP) datasets, which serve as a reference for studying human anatomy and are available through the National Library of Medicine.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES
Detailed introduction

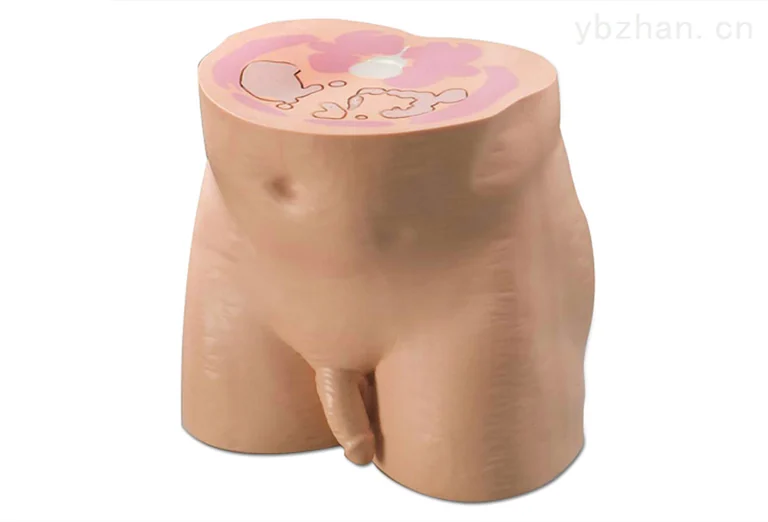

CIRS 801-P male simulated pelvis phantom
Product details
CIRS 801-P male simulated pelvis phantomThe most realistic tissue equivalent phantom we offer. This phantom is designed for use in diagnostic radiology and radiotherapy for imaging dosimetry teaching and demonstration applications. All anatomical dimensions of the human body model are based on the Visible Human Project (VHP) datasets, which serve as a reference for studying human anatomy and are available through the National Library of Medicine.

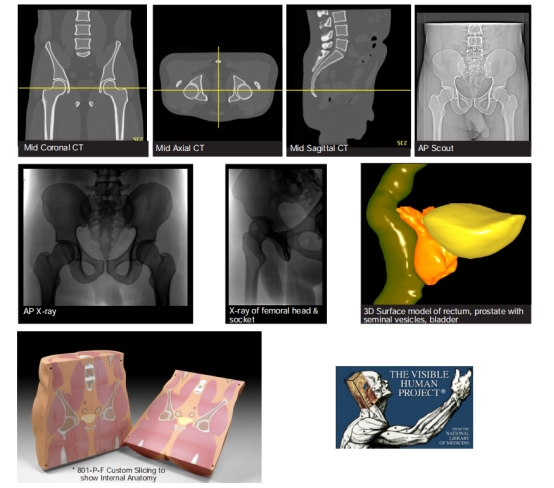

CIRS has combined this anatomical detail with our advanced tissue simulation technology. The phantom is made from a proprietary epoxy resin material that simulates the density and radiation attenuation characteristics of human tissue in the 1% range from 50 keV to 25 MeV. It contains anatomically precise bones, cartilage, spinal cord, discs, muscles, intestines, bladder, prostate, rectum and interstitial fat.
likeLike the CIRS ATOM® phantom product line, the VHP Phantom can be purchased intact or cut into 25 mm thick continuous slices. CIRS is available in a 3 cm x 3 cm hole grid option.
The grid contains a diameter of5mm via hole filled with a homogeneous tissue equivalent plug for TLD placement. Hole location is optimized for internal organ dose. Ion chamber cavities, other grid styles and hole diameters available upon request.
CIRS 801-P male simulated pelvis phantomFeatures
Based on the Visible Human Project dataset
Excellent tissue simulation and realistic imaging performance
Adaptable to various detectors
USACIRS 801-P Male Abdomen/Pelvis Phantom Product Specifications:
product specifications | |
Overall size | 35.6cmx 30.5cmx 25.4cm |
phantom weight | 24.9Kilogram (55pounds) |
Material | Epoxy resin |
Models and ordering | |
Model | Description |
801-P-A | Almost human male pelvis phantom - Section without holes |
801-P-B | Almost human male pelvis model - The cross section isØ5mm holes, grid spacing is3x3cm |
801-P-F | Almost human phantom of male pelvis - No knots without holes |
Model801-Pinclude | |
QTY | Description |
1 | Almost human male pelvic phantom |
1 | Carrying luggage |
- | 48Month warranty |
*Custom slices available upon request. | |
