Detailed introduction
USACIRS 020 Breast Imaging Phantom
Introduction:
USAThe CIRS 020 BR3D breast imaging phantom is designed to evaluate the detectability of lesions of various sizes in tissue-equivalent, complex, heterogeneous backgrounds. This model provides more realistic challenges for standard screen and FFDM mammography systems as well as tomosynthesis and breast computed tomography.

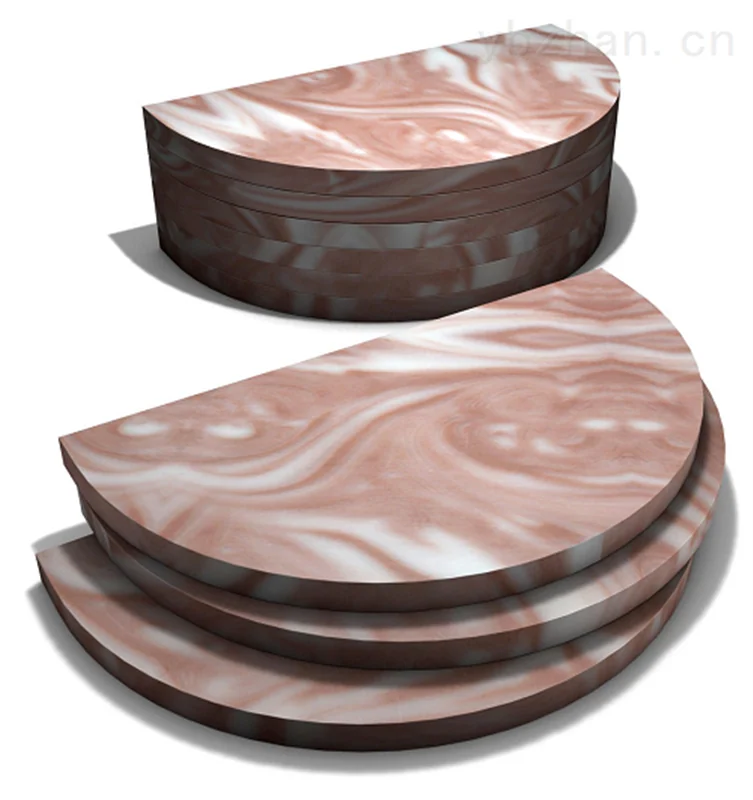

The model consists of a set of six(6) panels made from heterogeneous breast-equivalent materials with characteristics of real breast tissue and demonstrate how glands can be altered to mask potential targets. Each slab contains two tissue-equivalent materials that mimic fat and glandular tissue and "swivel" together in an approximately 50/50 weight ratio. One of the slabs contained various microcalcifications, fibrils, and lumps.
The dimensions of each semicircular slab are100(H)×180(L)×10mm(T). Each slab features a unique swirl pattern that provides a different background when arranged in multiple combinations and thicknesses.
USACIRS 020 breast imaging phantom advantages:
Test tomosynthesis and breast computed tomography
More representative than standard homogeneous phantoms
Complex backgrounds provide greater challenges for target detection
Slab configuration available with or without target thickness range
USACIRS 020 breast imaging phantom specifications:
Background board material:
Epoxy resin: equivalent to50% gland/50% adipose tissue
Dimensions: 100(H)x 180(L)x 100mm(T), semicircular shape
Quantity:(5)Five plates

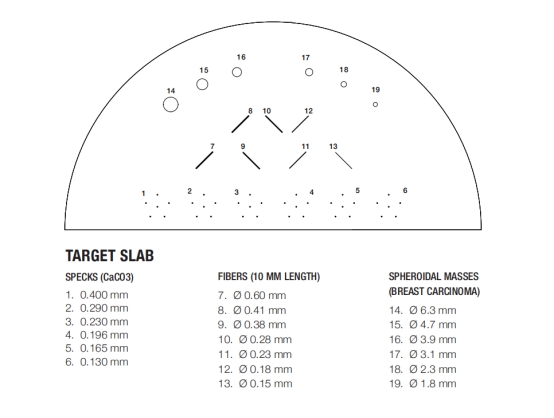

Target sector damage calcium carbonate(CaCO 3 specification)
Particle size: 0.130, 0.165, 0.196, 0.230, 0.275&0.400mm
Pellet material:
Epoxy resin: 75% glandular/25% fat,
Diameter: 1.80, 2.38, 3.18, 3.96, 4.76&6.32mm
Fiber: 10 mm length diameter: 0.30, 0.53, 0.71, 0.83 and 1.25mm
Quantity:(1) A piece of board
USACIRS 020 breast imaging phantom includes:
operating instructions and6 months warranty
