Detailed introduction
germanyPTW OCTAVIUS 4D Rotary Intensity Modulation System
4D patient plan verification system
Features
truly independent4DDosage verification
Dose measurements throughout the phantom volume

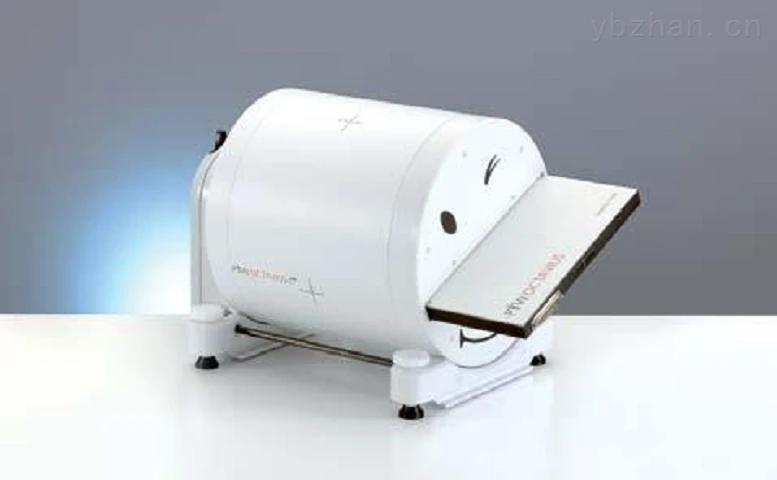

Unique rotating model, always perpendicular to the beam
Modular model with replaceable top
Excellent ionization chamber technology
Rotation units can be used with different types of matrices
Applicable toFFF irradiation field
Analysis of failure points in patient plans
DVHAnalysis options

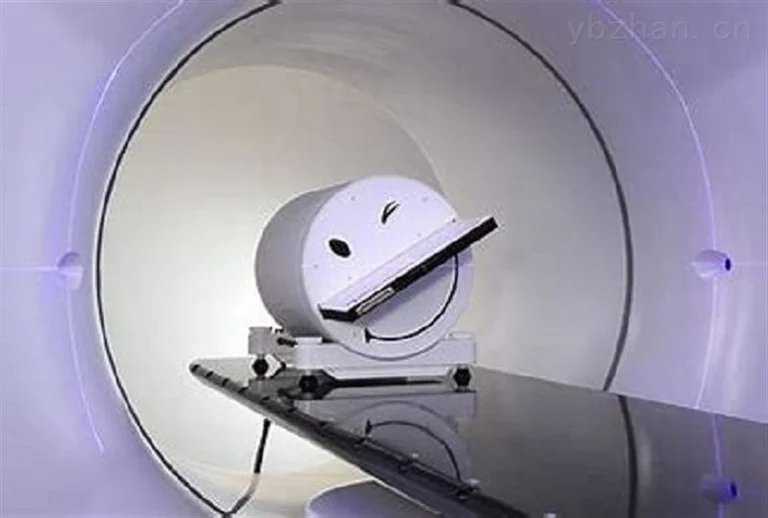

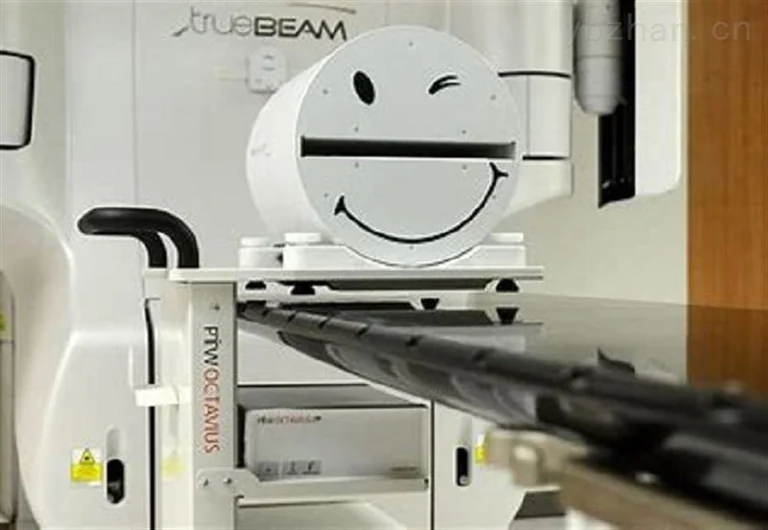

OCTAVIUS 4Dis a new4Ddosimetry system designed to be based on
True independent measurements to verifyIMRTTreatment Plan. It is the same as the rack
Rotate and measure dose throughout the phantom volume, always perpendicular to
incident beam. Therefore,OCTAVIUS 4DNo angle correction or detection required
detector calibration to compensate for the directional response of its detector, making it ideally suited for
Rotating intensity-modulated plans and easy to use in clinical routine. module
chemical top cover can be applied toSRStreatment orLINAC QA.

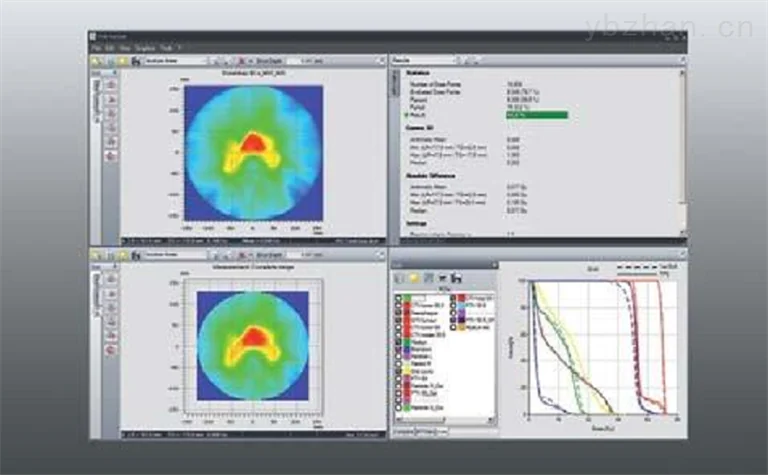

With its unique collection and3Ddose analysis function,VeriSoftThe software can
To compare doses in the transverse, coronal and sagittal planes and analyze the superimposed
whoCTMeasurement results on scan. VeriSoftallows for volumetric analysis,
The measured dose was compared to the calculated dose for the entire phantom volume.
Optional modulesDVH 4DSoftware calculates every
dose of a structure - Volume Histogram (DVH) and compare it with the treatment plan
planning system (
TPS) calculatedDVHMake a comparison. as a truly independent
independent program evaluation tool,DVH 4Dno need to come fromTPSnumber of doses
data, but uses a unique algorithm based entirely on patientsCTdata and
OCTAVIUS
supportPTWdetector matrix :
OCTAVIUS 729
OCTAVIUS 1000 SRS
OCTAVIUS 1500
2D-ARRAY seven29
Ordering information

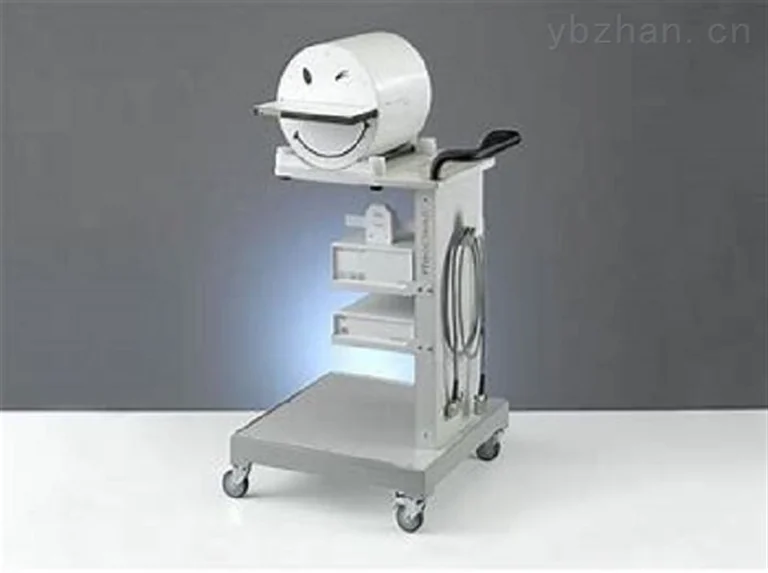

L981398 OCTAVIUS 4D system include:trolley 729
L981429 OCTAVIUS 4D system include:trolley 1000 SRS
L981438 OCTAVIUS 4D system include:trolley 1500
Can cooperatePTWUpgrade package for use with detectors
Optional
S070009.001 DVH 4D module
T40056.1.007 Semiflex 3D 0.07 cm3adapter
T40056.1.002 Semiflex 0.125 cm2adapter
T40056.1.003 Farmeradapter
T40056.1.006 PinPoint 3Dadapter
T40063.1.004 Standard top cover
T40063.1.002 SRStop cover
T40063.1.003 LINAC QA top cover
S070020 DIAMOND Secondary detection software
L981390 DAVID dose deliveryQAsystem
E41300B/S/G Bronze, Silver, Gold Level Services
