Detailed introduction

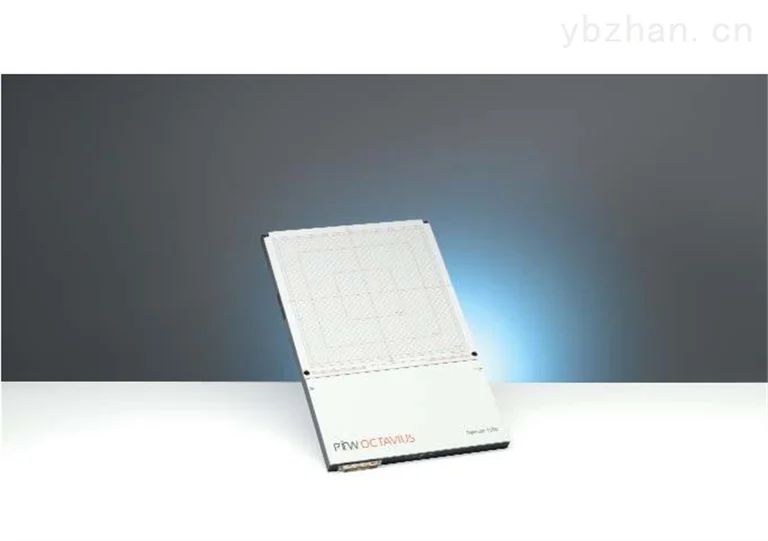

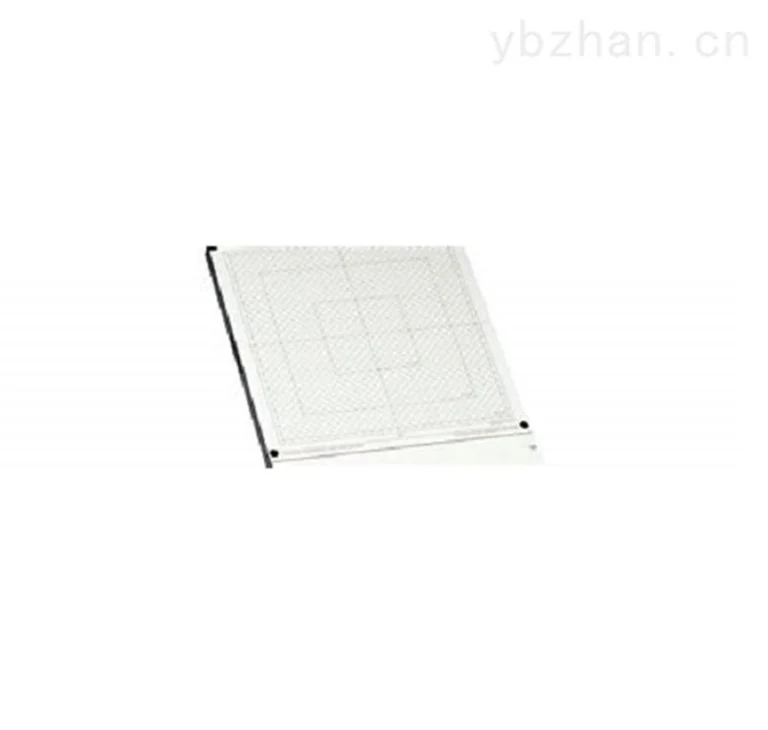

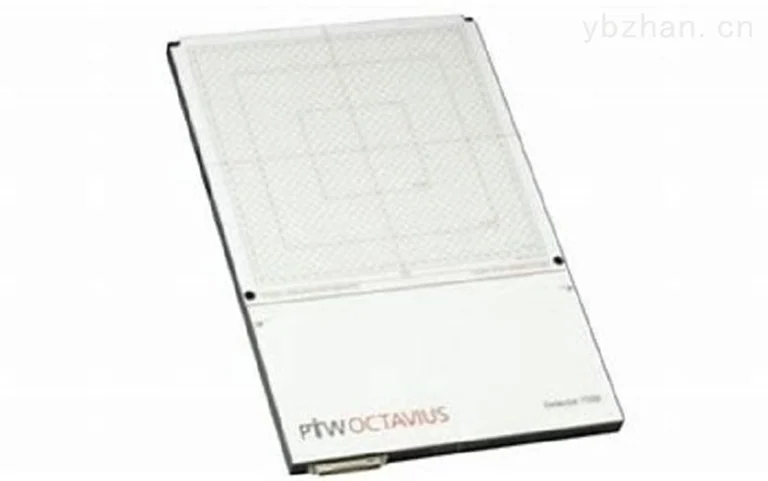

germanyPTW OCTAVIUS 1500 Matrix Detector
IMRTpatient plan verification andLINAC QA
Features
Have1405ionization chamber, effectively measuring the radiation field27cm×27cm
The diagonal detector spacing is7.1mm
Better detector coverage is50％
Using ionization chambers to avoid detector aging effects
Gold Label Ionization Chamber Technology
60CoAbsolute dose calibration
One matrix, many applications
ApplicableFFFirradiation field
OCTAVIUS 1500is a new concept of ionization chamber matrix forIMRTVerify
and radiotherapy quality control. The use of ionization chambers avoids radiation defects,
This is the main disadvantage of solid-state detectors. The dimensions of the vented ionization chamber are4.4
mm x 4.4 mm x 3 mm, the center distance is7.1 mm。 in checkerboard shape
There are a total of1405ion chamber, the maximum field size is27cm×27centimeters
meters 。 Square shape electricity away from room Set plan mention supply alone te of 50 ％ cover cover rate 。
OCTAVIUS 1500Available forIMRTplan verification,LINAC QC(Can be brought with you
chosenMultiChecksoftware) andLINACadjust (usingBeamAdjustsoft
pieces). OCTAVIUS 1500Can be mounted to the accelerator using a universal rack
above, with octagonOCTAVIUSused with phantoms, or withOCTAVIUS
Used with swivel device for advanced3DDosimetry.
Ordering information
L981449 OCTAVIUS I, 1500 including electronic equipment and
VeriSoft Software
E41320B/S/G Bronze, Silver, Gold Level Services
