Detailed introduction

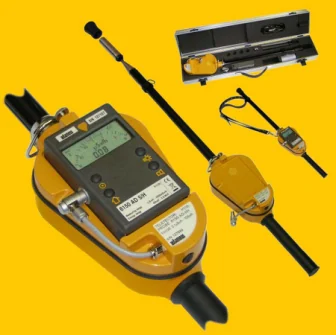

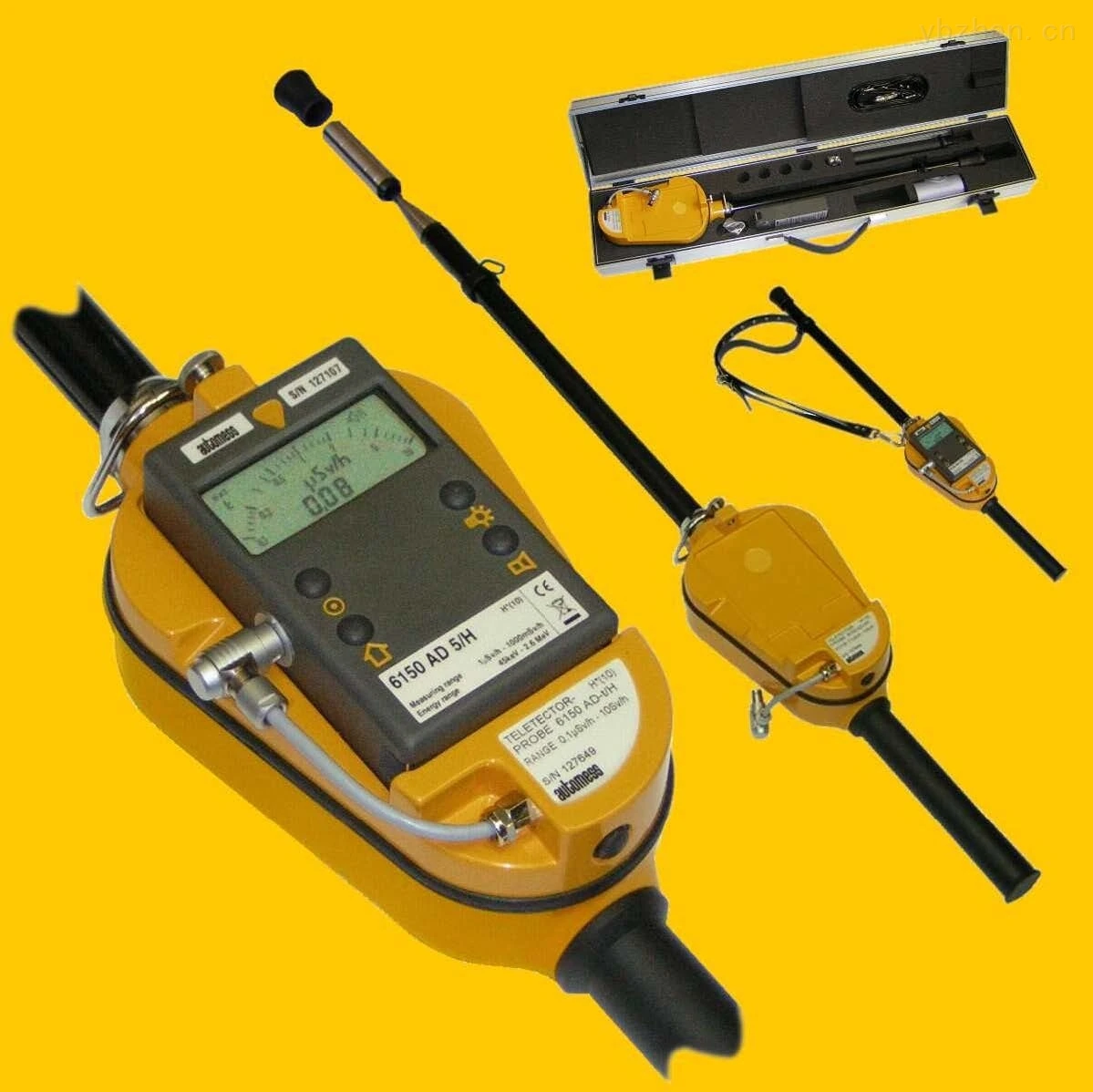

germanyAUTOMESS company 6150AD-t long rod dose rate meter (high dose rate meter)
6150AD6 dose rate meter (low):
l is the detection of photon radiation(gamma and
l Simulation range 0.1µSv/h-10mSv/h
l Number range 0.01µSv/h-9.99mSv/h
l energy range 60keV-1.3MeV
l - Hx type (compatible with all probes except /E type): 6150AD6
l - H*(10) type (compatible with all probes except /E type): 6150AD6/H
l - Type H*(10) (compatible with pulse probes and /E probes): 6150AD6/E
6150AD-t Probe with telescopic rod:
l To detect photon radiationBeta ray probe, optional γ and
l Simulation range 0.1µSv/h-10Sv/h
l Number range 0.01µSv/h-9.99Sv/h
l energy range 65keV-1.3MeV (low dose rate counting tube)
l 65keV-3MeV (high dose rate counting tube)
l - Type Hx (compatible with all 6150ADn and 6150ADn/H tables): 6150AD-t
l - Type H*(10) (compatible with all 6150ADn and 6150ADn/H tables): 6150AD-t/H
l - H*(10) type (only compatible with 6150ADn/E table): 6150AD-t/E
l 859.1 Wall-mounted GAMMA alarm
l for a storage typeThe device supporting the 6150AD dose rate meter has eye-catching sound and light alarm prompts, and the dose rate can be adjusted to exceed the alarm threshold.
l Installable6150AD dose rate meter and probe are attached to it (excluding 6150AD and probe), wall-mounted installation, lead-acid battery or powered by 87-250V.AC/50Hz power supply
Technical parameters:
explore test device | GM tube, with automatic energy compensation function |
Sampling probe | 4 meters, retractable |
show | LCD displays measurement readings and mode indication |
back scenery lamp | LED light, turns on when the lighting button is pressed, and lasts for 10 seconds |
Measuring range | 0.00μSv-99.9mSv |
effective dose | 2μSv/h-9.99mSv/h |
energy response | 60kev-1.3Mev |
agent quantity rate | A: 0.1μSv/h-10mSv/h, D: 0.0μSv/h-9.99mSv/h (A-analog, D-digital display) |
Measure linearity | useWhen using Cs137 scale, the maximum deviation is 10% |
Resistance to overload | within the full range50 times |
flat average value | 0.0μSv/h-9.99mSv/h As long as the standard deviation exceeds 5%, the value will flash |
Working power supply | 9V battery, about 3000h (about 60h when lighting is started); life span or battery life |
Under voltage alarm | When the voltage is lower than5.5v, icon and sound warning |
working environment | -30℃ to +50℃、0-95%RH、60-130kPa |
Shell | Aluminum stamped die-cast, waterproof, protection gradeIP67 according to DIN40050 |
Dimensions | 130×80×29mm |
weight | 400g |
Standard configuration | Main unit, extension probe, battery, strap, user manual and related information |
