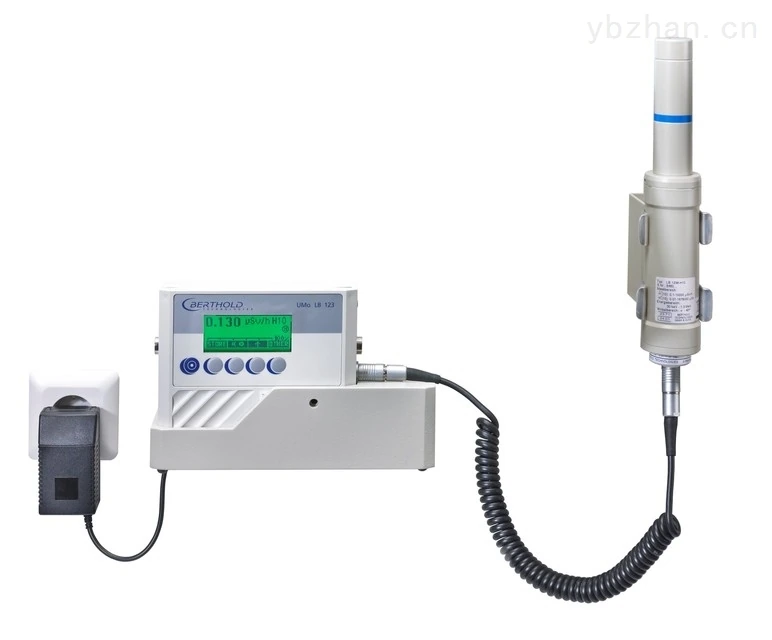

germanyBERTHOLD LB 123 D-H10 dose rate detector
Product introduction:
l Particularly suitable for background dose rate probes between low dose rate levels
l The probe consists of an energy compensated proportional counter tube, an amplifier, discriminator and a high voltage unit
l Can be in tachometer mode or anti-mode
l Indicates the dose rate of the unit, optionally"microsievert/h" or "centipoise"
l Can be used to check detector response, performance calibration measurements
l Calibration (License) Validity Extension
l Attach the wall mounting bracket permitted to the power connection unit for continuous operation
l Acts as a local dose rate measurement system, and operates on rechargeable batteries
l However, even in such a structure, The LB 123 can be removed from the wall bracket and used as a portable instrument
l basic moduleThe LB 1230 is capable of storing data either directly connected to a printer or downloaded to a PC via a serial interface
l The LB 123 D-H10 is operated via a 5-button keyboard membrane, including an on/off button and four soft keys
l This ensures clear user guidance through the display, even for complex operations, and provides a level of convenience and reliability
l The display is a high contrast dot matrix display with background lighting
l Universally applicable tools and programming via softkeys are only possible due to the high degree of flexibility this display
Features:
l
Suitable for measuring low dose rate levels (from background to10 millisieverts/hour)
l New quantities of measured ambient dose and ambient dose rate equivalentsH *（10）
l Pass5 soft keys for easy operation
l Automatic detection and recognition
l Optical and acoustic indication
l Freely selectable dose and dose rate alarm thresholds
l data storage
l PC and printer interface
l PTB Type Approval
Technical parameters:
Measuring range | 50 nSv/h – 10 mSv/h(Type approved: 100 nSv/h – 10 mSv/h) |
energy range | 30 keV – 1.3 MeV |
inner background | < 0.1 cps |
calibration factor | 0.214 μSv/h per cps |
Overall dimensions | 50 mm Ø x 275 mm |
weight | 0.46 kg |
temperature range | -20 °C to +60 °C (operation) |
max. +60 °C (storage) | |
maximum relative humidity | 30 % to 90 % |
Protection level | IP 65 (according to IEC 60529) |
PTB Type Approvall | Combined with a universal displayLB1230 UMO |
