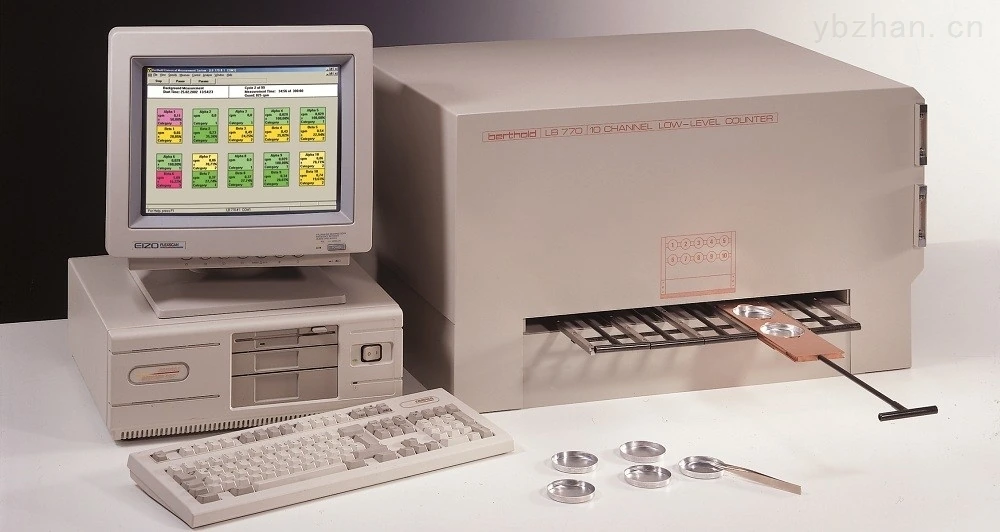

germanyBERTHOLD LB 770 10-channel alpha, beta low background counter
Product introduction:
l The 10-channel low-level wafer counter LB770 provides simultaneous, individual α-β measurement of 10 planchets up to 60 mm diameter each time
l For each sample, there are two separate measurement channelsalpha and beta activities
l slider and counter tube surrounded by100 mm thick shielding processed lead bricks (total weight approx. 950 kg)
l The 11x α/β discrimination unit (preamplifier) is located on the external lead shield
l It provides standard pulse to interface unit
l Higher throughput or large number of samples
Product application:
l Environmental Laboratory
l health physics
l chemical radio
l Physics
l industrial safety
l Food and Drug Analysis
l Department of Nuclear Medicine
l Test transmitter
Features:
l Counting results can be quickly10 times, equal to statistical accuracy, per sample
l Same overall counting time as before, with three times better statistical accuracy
l Instant detection of highly active outlier samples without having to wait for the counting process to complete
l extremely lowbeta background < 1 CPM
l Performance: Extremely low backgroundHigh α and β counting efficiency
l Throughput: 10x detector high sample throughput
l Reliability: High-quality components provided10 detectors
l Ease of use: simple sample insertion, user-friendly, versatile software
l Quality Control: Built-in efficiency, background, trend checking tools
l Flexibility: combines rapid assessment and low activity measurement
l Low maintenance: few mechanical parts, maintenance-free
Technical parameters:
detector | Suitable for measurementSamples Ø 60, 50, 30, 25 mm, protected counter anticoagulation |
shutter | 10 cm, 4 PI shielded to reduce ambient radiation |
preamplifier | ExcellentAlpha, beta separation based on rise time and pulse height discrimination |
Count gas | Argon methane, argon, carbon dioxide |
Counting electronic equipment | Computer interface, with sample and Defender detectorHV unit |
Software | MS operating system software for DOS or Windows |
detector: | Air flow proportional counter tube, simultaneous measurement10 samples 10 (diameter 30/60mm), 1 anti-coincidence detector |
lead shield: | 10cm thick |
weight | 950kg |
Size | 700 x 400 x 500 mm |
Play before: | 11-fold amplifier, pulse front/pulse height discrimination α/β |
Detect gas: | Argon-Methane (90/10) or Argon-Co2 (84/16), pressure approximately 10mbar |
Gas consumption: | 6-10 l/h |
