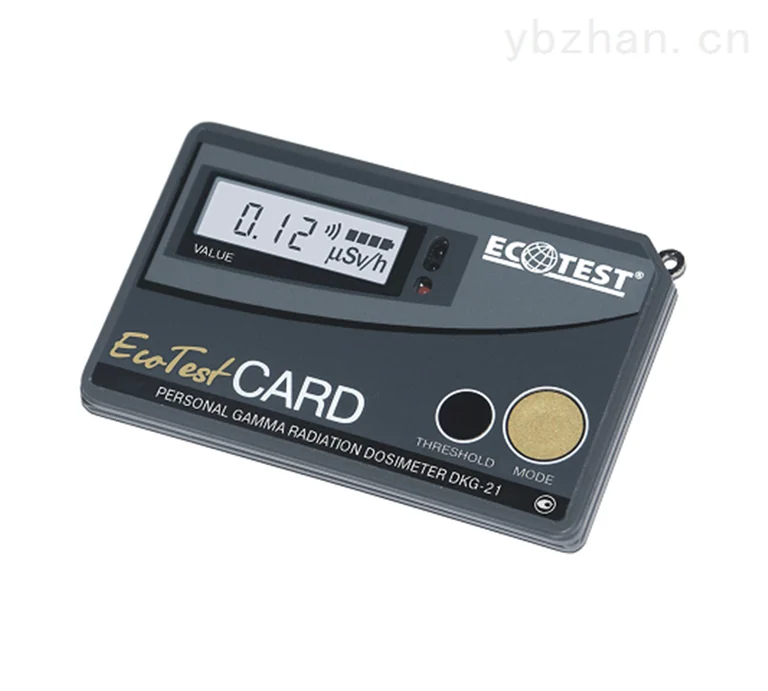

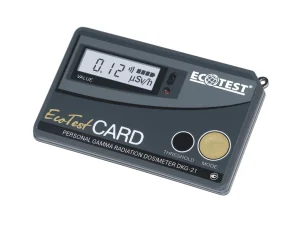

Ecotest CARD card-type personal dose alarm device

Ecotest CARD(DKG-21) Card type personal dose alarm

Product introduction:

DKG-21The card-type personal dose alarm has high sensitivity, small size, and is only the size of a bank card. It is very convenient to wear. The instrument can be used alone, or it can be used with the measurement component to form an automatic dose control system. Widely used in environmental protection departments, nuclear power plants, accelerators, isotope applications, industryX、γNon-destructive testing, radiation medicine, cobalt source treatment,γIrradiation, radioactive laboratories, environmental monitoring around nuclear facilities, etc.,It is an ideal instrument for monitoring and alarming radiation dose equivalents and measuring personal radiation dose equivalents.
, to escort safety.

Features:

◆Use alone or in personal dosing automation control systems.

◆The historical cumulative dose is stored in non-volatile memory

◆The historical cumulative dose can be transmitted to the computer through the infrared interface.

◆Lock power mode,until all cumulative dose values have been read.

◆The dose equivalent rate and dose equivalent alarm limit can be set manually via computer or keys.

◆Count blocking indication

◆When the dose equivalent rate or dose equivalent exceeds the alarm value, an audible and visual alarm is issued.
◆Automatic digital display that switches off automatically if current background radiation levels fall below preset limits.
◆when pressing any key The display will automatically activate when the background value increases beyond the preset limit or the alarm clock sounds.

◆Perform regular battery and detector tests

◆energy compensation formGMcounter.

Technical specifications:

◆Measuring range and relative basic error:

◆personal radiation dose equivalent rate Hp(10)：0.1µSv/h～1Sv/h

◆personal radiation dose equivalent Hp(10) ： 0.001～9999mSv

◆Relatively basic error:±15%

◆Energy range:0.05～6.0MeV

◆Energy response:0.05～1.25MeV；±25%

◆Cumulative dose storage interval:5～255minutes

◆Data storage period: no less than10year

◆Infrared data transfer rate:38400bit/s

◆Infrared communication transmission distance: no more than0.3meters

◆Battery life (CR2450）：2200hours

◆Operating temperature range:-10°C～+50°C

◆Weight and dimensions: 0.08kg，86x54x9mm
