IT-09 type fixed site radiation monitor

IT-09 Fixed site radiation monitor

Introduction

IT-09It is an online radiation continuous monitoring system that can be used for radiotherapy, cobalt source treatment,γConducted in irradiation, radioactive laboratories, non-destructive testing and other placesX、γRadiation monitoring and alarm.

Technical indicators:

◆Dose equivalent rate display range:0.1μSv/h - 10Sv/h

◆3Bit high volume data tube displays dose equivalent rate data

◆Available at0.01μSv/h－9.99Sv/hSet within range3alarm threshold

◆When the dose equivalent rate exceeds the threshold, an audible and visual alarm signal will be emitted (different audible and visual alarm signals will be given when different thresholds are exceeded)

◆PassRS485interface for communication

◆The power supply is an industrial power supply (220V) provided after conversion via power adapter

◆Operating mode -24hours of continuous work

◆The distance range between the display panel and the measuring unit is0.5-50(m)

◆Size smaller than345×135×40(mm)

◆weight less than1.0（kg) (adapter not included)

◆Installation method: upward wall-mounted installation

◆Suitable for working environment conditions

◆air temperature

◇IT-90Data display panel:-20oC~+50oC

◇BDBG-09Measuring unit:-40oC~+50oC

◆Relative humidity: high to95%(no condensation)

◆air pressure84－106.7（kPa）

Shipping list

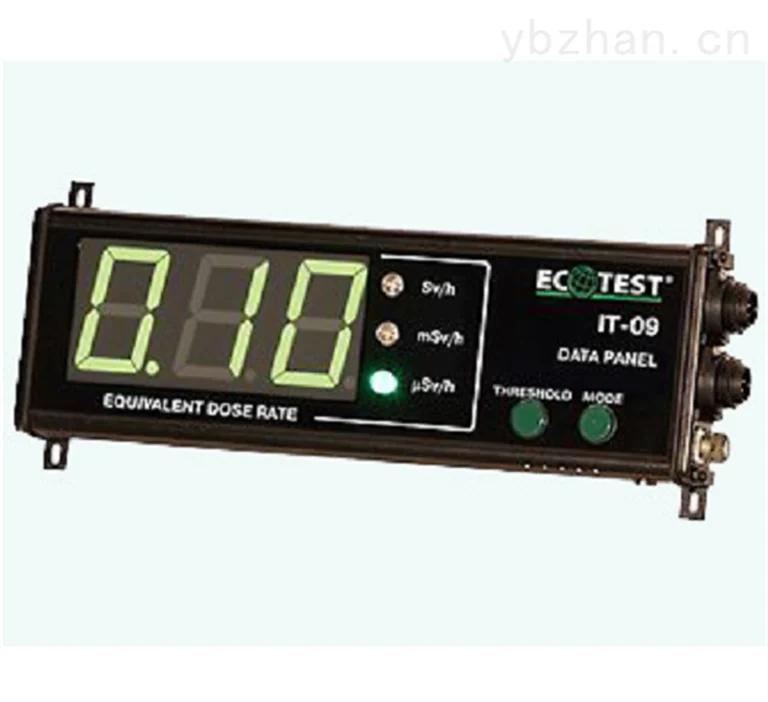

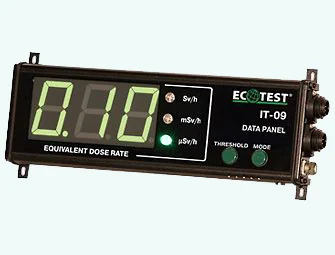

◆IT-90Data display panel

◆BDBG-09measuring unit

◆220Vpower adapter

◆Operation manual

◆Packing box
