Safira filter tightness tester

Safira filter tightness tester

Product introduction:

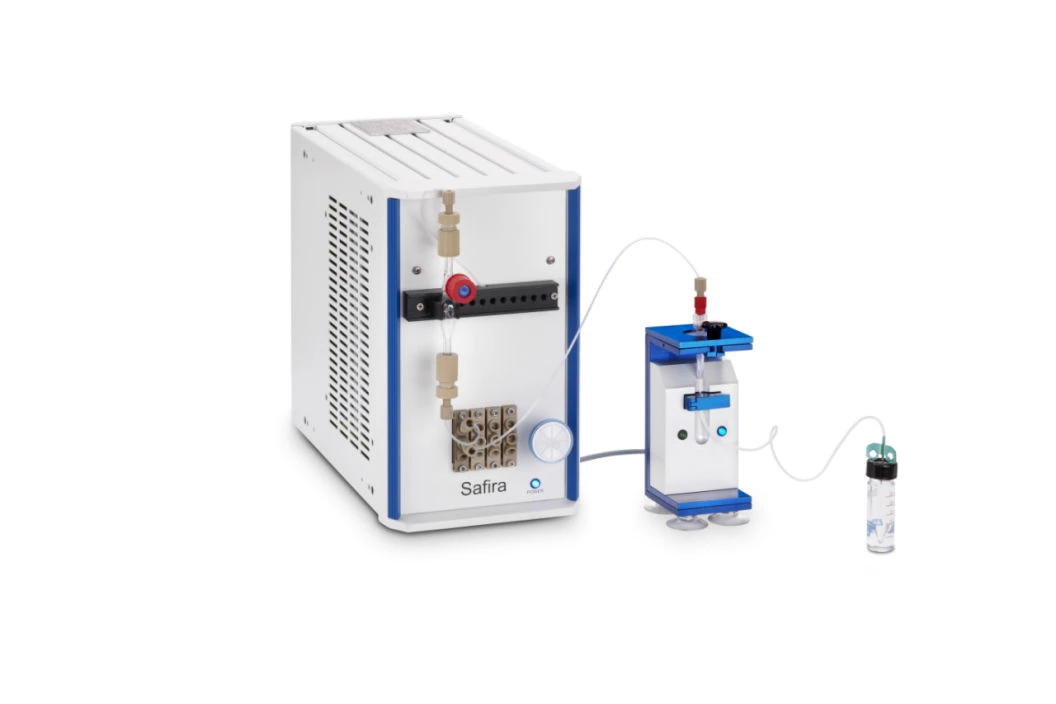

Safirais an in-line filter tightness tester designed to verify the tightness of vented and non-vented sterile filters after use in radiopharmaceutical manufacturing processes. Available as a stand-alone unit or asraytest  SynChromSystem expansion. In both cases, the system is equipped with a control unit and ancillary equipment with filter holder and a detector. The two-part distribution method ensures efficient space utilization in the distribution hot chamber.

This standalone version can support up to4Ancillary equipment4different radioactive synthesis. In addition, it can also be used as a completely independent filter sealing tester. The measurement process does not require contact with the filter, ensuring that the measurement preparation phase is simple and fast.

Other functions

Customizable sterile filters;

When performing a pressure holding test at the bubble point, the pressure value is automatically confirmed and recorded;

Optional time increment-Real-time display on the screen;

byraytest Gina Star software control (SOP characteristics and method management, documentation, configurable report function);

CompatibleRaphaela RS, raytest batch reporting system.

Technical specifications

Safira Star independent unit

power supply     ：110 V-240 V, 50/60 Hz

Data entry/output:LAN

gas connection   ：1/8" Swagelock

Gas type   : any gas, minimum pressure 5 + ,05 bar (G), minimum flow: bubble point filter

Sterile filter  : With exhaust and without exhaust

Auxiliary equipment

oneSafira supports up to 4 accessory devices.

Dimensions:70 x 200 x 80 mm

Weight:0.5 kg

Specifications and dimensions

Dimensions:W160 × D275 × H350mm (W6,29" x D10,82" x H13,77")

Weight: Control Unit 4 kg
