DSA detection phantom DSA-8
Product model:
Brief description:DSA detection phantom, specially designed for DSA detection. If your X-ray machine has a digital subtraction angiography (DSA) function, in order to ensure the normal operation of the machine, it is not enough to conduct fluoroscopic inspections. What you need more is the detection of DSA special parameters. With the help of the DSA-8 test phantom, you can quickly and easily complete various DSA testing items required by international standards. When scanning, please manually press the airbag to drive the blood vessel simulation board to simulate the real condition of blood vessels.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Important equipment for radiation environment monitoring: A brief analysis of the application of KARRAY neutron dose rate meter
- Application of radiotherapy three-dimensional water tank in radiotherapy
- X-ray multifunctional quality detector is an important non-destructive testing equipment
- A thermoluminescence dosimeter is an analytical device used to measure radiation dose
- 2026 Radiation Detector Purchase and Avoidance Guide: How does KARRAY Technology solve the industry’s pain points with “technology + service”?
- Online radiation alarm is the key equipment for modern radiation protection
- Application of low contrast detail detection phantom
- KARRAY Technology: The cutting-edge power of domestic dose area product meters, technical strength and product line analysis
- Low contrast detail detection phantom丨Product Encyclopedia
- Thermoluminescent dose readers require regular calibration and calibration
Detailed introduction
l Designed forDSA detection design
l If yourThe X-ray machine is equipped with a digital subtraction angiography (DSA) function. In order to ensure the normal operation of the machine, it is not enough to conduct fluoroscopic inspections. What you need more is the detection of DSA special parameters.
l inWith the help of the DSA-8 test phantom, you can quickly and easily complete various DSA testing items required by international standards.
l When scanning, please manually press the air bag to drive the blood vessel simulation plate to simulate the real condition of blood vessels.
DSA detection phantom Product features
l dynamic range
l Artifact
l DSA contrast sensitivity
l Logarithmic compensation error

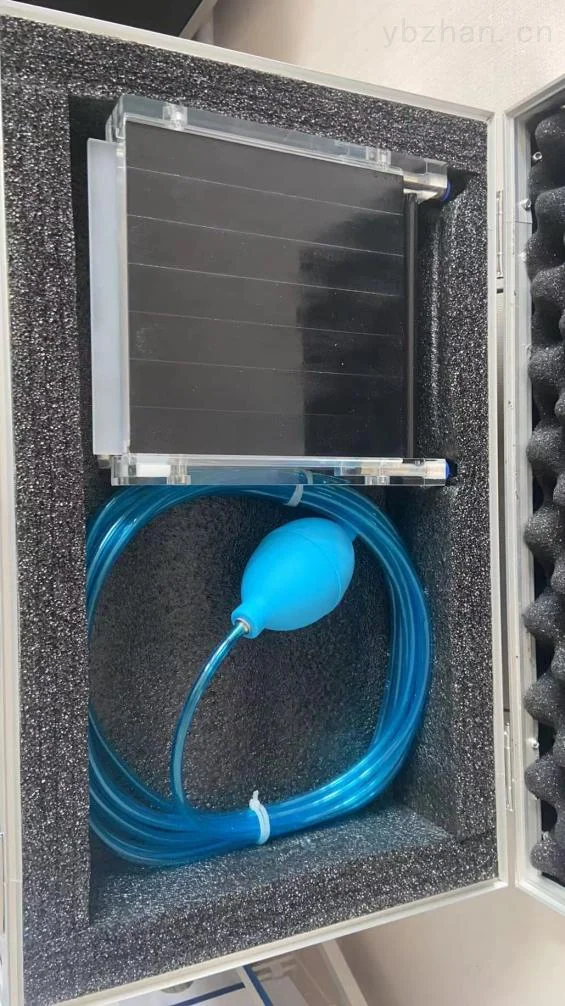

DSA detection phantom specific structure
l Subject:PMMA board
l 7-level wedge-shaped copper ladder for testing dynamic range: 7 linear copper wedge-shaped ladders with thickness from 0.2 mm - 1.4 mm placed in the longitudinal direction of the plug-in, and another set of copper ladders with thickness 1.4mm - 0.2mm used for logarithmic compensation testing.
l Vascular simulation board plug-in: laterally movable10mm, with 4 aluminum strips of at least 99.5% purity to simulate blood vessel density. The insert body has a length of 160mm, a thickness of 10mm and a width of 173mm.
l Vascular simulation board plug-in: with4 aluminum strips with a purity of 99.5%, the gap between the aluminum strips is 15mm. The aluminum strip is 160mm long, 5mm wide, and the thicknesses are: 0.05mm, 0.1mm, 0.2mm, and 0.4mm respectively, used to simulate different blood vessel densities.
The 6-meter-long remote-controlled pneumatic valve causes the blood vessel simulation plate to move in different directions during the detection process, which can effectively reduce the exposure dose of the detection personnel during measurement.
