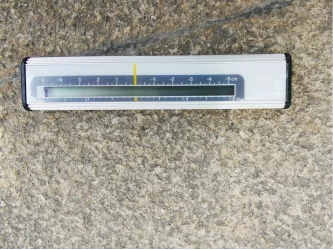

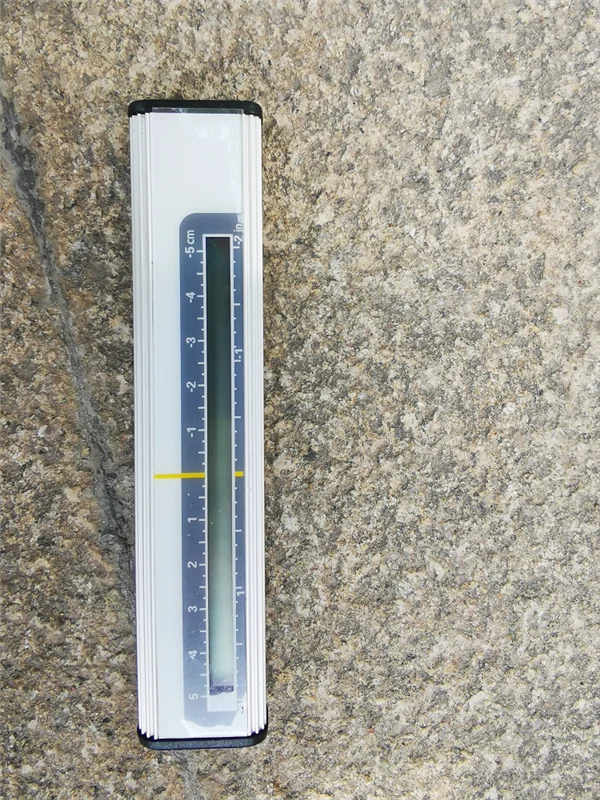

KR-DXR+ type light field and radiation field consistency detection ruler

KR-DXR+ type light field and radiation field consistency detection ruler

Product introduction

KR-DXR+ type light field and radiation field consistency detection rulerIt can be used at voltages as low as 30 kV and gives objective, reproducible and immediately readable results.

Optical field detector product introduction:

KR-DXR+ type light field and radiation field consistency detection rulerThe sensor arrangement is specially designed to meet the needs of real-time detection of the consistency of the irradiation field and indicator light field of the camera and breast machine.

KR-DXR+ type light field and radiation field consistency detection rulerIt can be used at voltages as low as 30 kV and gives objective, reproducible and immediately readable results.

The metric scale of the X-ray image can be seen on the PCB of the KR-DXR+ optical field detector. International rules recommend that the consistency error between the irradiation field and the indicated light field should be less than 2% of the SID. The mammography machine is ±5 mm from the edge of the examination table. The characteristics of the sensor provide accurate and instant results where adjustments are needed.

Standard configuration: radiation electronic ruler1 piece, 1 instruction manual, 1 packaging box

KR-DXR+ type fluorescent ruler parameter table:

Measuring range ± 5 cm (± 2 in)

sensor segment 41 solid sensor and corresponding LCD display segment

Accuracy 0.25 cm (0.1 in)

Functional testingNY-DXR+ should be fully exposed when exposed as a whole

highlight

for black

Power on Automatically turns on during exposure

Shut down No radiationShut down after 1 minute

Restart automatic

battery life 6 to 8 years (CR1632) based on annual exposure

2000 times

working temperature 10 – 40°C (50 – 104°F)

storage temperature -20 – +60°C (-4 – +140°F)

Size (H x W x L) 15 x 30 x 145 mm

weight 75 g (2.6 oz)
