Detailed introduction
Compatibility
- Windows 7 (32-bit and 64-bit) and Windows XP
- Microsoft Access database
- Crystal Reports 11.5
- GammaVision 7 and earlier
process efficiency

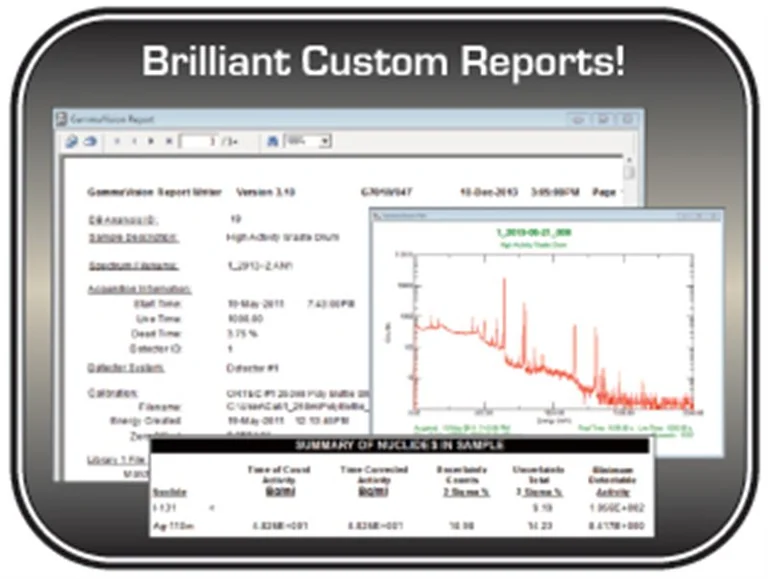

- Automatically generate custom reports with spectral images
- Multiple report export options (Word, Excel, PDF)
- Simplified LIMS data integration
- Data management with search, archive, and purge functions
result
- Called directly from GammaVision analysis
- Automated calculations and data validation with custom report templates
- Analytical data supported by spectra
Reporting options
- Different report templates by application or sample type
- Automatic printing options
- Includes spectral image reporting options
- Spectral image report format:
- Customizable graphic titles and color schemes
- Optional axis labels and sample descriptions
- Report collection date/time and live/live time
- Outline or fill in areas of interest
- horizontal axis
- energy or channel
- Markers or gridlines
- Full scale or user defined range
- 5 vertical axes
- Logarithmic or linear scale
- Markers or gridlines
- Automatic scaling or user-defined value
- Custom reports
- Sample Crystal Report templates are provided to generate longer detailed reports or short summaries of key data.
- A wide range of reports can be customized with Crystal Reports 11 or 11.5 and Visual Studio 2010.
- Microsoft Access reporting capabilities can be enabled using the Report Builder database. (Microsoft Access required)
Report export options
- Automatic export on analysis options
- Export file format:
- Microsoft Word and Excel
- ASCII text
- rich text
- crystal report
- Other formats can be exported manually from the built-in viewer control of Crystal Reports.
Data management
- Samples can be queried by match or wildcard criteria using spectral name, date range, sample description, and detector.
- Move/copy selected analysis data and (optionally) associated files to the specified database and folder for archiving.
- Removes selected analysis data and (optionally) associated files for system cleanup and cleanup.
- Use Microsoft Access or custom applications to query, combine multiple sample results, generate exception reports, or integrate with laboratory information management systems.
