ContactThe MPC-900-GFW and MPC-900-GFL are convenient and versatile counter systems equipped with hemispherical air-flow proportional counters for easy portability. This type of sample counter is ideal for standard health physics applications such as wipe sample measurement, air filter paper measurement, etc. They can also be used in radiochemical applications when only alpha counting is of interest. MPC-900-GFL uses a windowless flow proportional counter, which provides the highest detection efficiency for Alpha rays or low-energy Beta rays. Each counter system is capable of running programs and quality control programs created with DUO Express software, using a direct-connect PIC Link cable to transfer the generated program directly to the device.
Home-Products-system-α/β counter-MPC-900-GF manual single sample counter

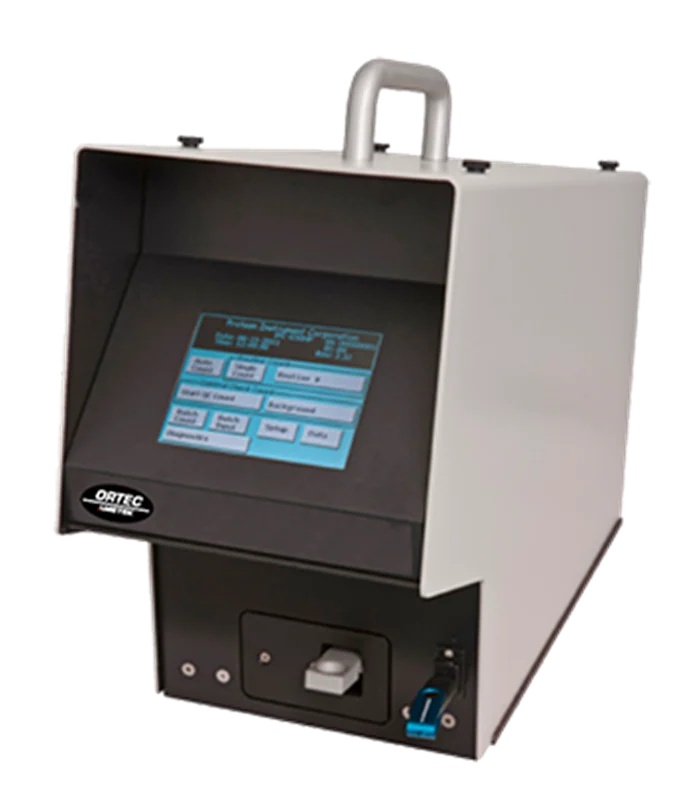

MPC-900-GF manual single sample counter
Product model:
Brief description:Hemispherical flow proportional counter gas leakage monitoring system with touch screen control
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Products
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- This knowledge of CT dose detection phantom is worth learning
- When using the long pole radiation measuring instrument, the operating procedures must be strictly followed.
- Application of low contrast detail detection phantom
- Radiotherapy three-dimensional water tank is an important equipment in the field of radiotherapy
- When choosing an explosion-proof radiation measuring instrument suitable for your own use, you need to consider these aspects
- Do you really know about thermoluminescent personal dosimeters?
- Thermoluminescence dosimeter: an important tool for accurate radiation dose measurement
- 2026 Radiation Detector Purchase and Avoidance Guide: How does KARRAY Technology solve the industry’s pain points with “technology + service”?
- A thermoluminescence dosimeter is an analytical device used to measure radiation dose
- Low-contrast detection phantom to protect health
Detailed introduction
- Hemispherical flow proportional counter
- Gas leak monitoring system
- Touch screen control
- Lightweight and applicable
- Gas protection
- 5.1 cm (2 in.) diameter sample tray
- Radon compensation function, user air filter sample
- Optional window or windowless detectors
- Optional lead shielding option to further reduce background levels
- Includes PIC Link cable and 2 sets of 5/16 inch sample trays
information +
-
Alpha/Beta Manual Counting System Brochure
- α/β Manual Counting System Brochure (A4)
-
More Information +
Specifications +
Window Detector (GFW)Typical efficiency source top 1/8" bottom 1/4" bottom 5/16" bottom Pu-239 40% 32% 26% 24% SrY-90 55% 48% 40% 37% Tc-99 47% 37% 30% 27% Background Conditions Guaranteed Value (CPM) Typical (CPM) Alpha Beta Alpha Beta No lead shielding <0.1 <55 0.05 40 Configure lead shielding <0.1 <45 0.05 30
Windowless Detector (GFL)Typical efficiency source top 1/8" bottom 1/4" bottom 5/16" bottom Pu-239 47% 47% 47% 47% SrY-90 60% 62% 62% 62% Tc-99 58% 58% 58% 58% Background Conditions Guaranteed value (CPM) Typical value (CPM) Alpha Beta Alpha Beta Lead shielding for this configuration <0.1 <55 0.05 40 Configure lead shielding <0.1 <45 0.05 30
parametersdetector 2.25 in. (5.7 cm) diameter, hemispherical airflow proportional counter Sample size 2 in. (5.1 cm) diameter, 1/8, 1/4, 5/16 in. (3.2, 6.3, 7.9 mm) deep Number of measurement channels 1 Depth 1/8, 1/4, or 5/16 inch Data export USB Flash Drive, USB PIC Link interface touch screen Measurement mode Only Alpha is measured, Alpha/Beta are measured simultaneously, Alpha first and then Beta. power supply 110–240 V AC, 50–60 Hz Input window material Aluminum film, 80 µg/cm2 working gas P-10, 60 cc/min，10 psi Gas-Pro P-10 Gas Monitoring System working temperature 10°C to 40°C (50°F to 104°F) Size 20.25 x 9 x 16 in. (51.4 x 22.9 x 40.6 cm) weight 40 lb., shielded +50 lb. Ordering information +
Model Description ORT-MPC-900-GFL Windowless detector, manual sample change single channel counter ORT-MPC-900-GFW Window detector, manual sample change single channel counter Optional accessories PIC-700-0007 1/8 inch Planchet PIC-700-0008 1/4 inch Planchet PIC-700-0009 5/16 inch Planchet PIC-140-0278-1/8 2 inch x 1/8 inch Sample Carrier PIC-140-0278-1/4 2 inch x 1/4 inch Sample Carrier PIC-140-0278-5/16 2 inch x 5/16 inch Sample Carrier
PIC-140-0045 1 inch retaining ring PIC-120-0010-DP Lead shielding ring
