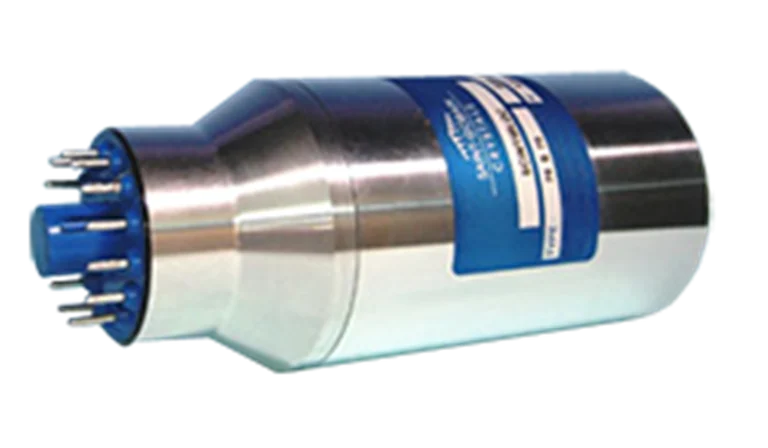

Lanthanum Bromide LaBr3(Ce) Scintillation Radiation Detector

High light output and fast decay time output pulses.
Better energy resolution and stability than NaI(Tl).
Higher throughput at high input count rates.

Lanthanum bromide or LaBr3(Ce) is a new generation of inorganic scintillation gamma ray detectors. LaBr detectors have higher resolution and faster light decay times.

When used with ORTEC's digital electronics, these detectors offer higher resolution, better pulse shape and temperature stability compared to NaI(Tl).

information +
- Lanthanum Bromide Scintillation Detector Brochure
- Lanthanum Bromide Scintillation Detector Brochure (A4)

More information +

Higher resolution and efficiency

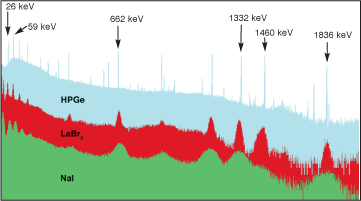

As shown in the picture1As shown,LaBrThe resolution performance ratio ofNaI（Tl) system is higher than approx.2times. Note thatNaI（Tl) detectors and lanthanum bromide detectors cannot reachHPGeDetector resolution. For the same volume,LaBrThe efficiency isNaI（Tl) about1.3times, and the decay time constant is slightly larger thanNaIdetector decay time10% (see table1). On the basis of optoelectronics output,LaBrThanNaI（Tl) has higher efficiency and temperature stability

High count rate compatibility
Lanthanum bromide detectors can operate over a wide dynamic range of count rates with little change in energy resolution.

Detector type	resolution@622 keV (%)	Density (g/cc)	relative toNaIof optoelectronics output	main decay time (usec)
LaBR₃(Ce)	2.8 - 4.0 year	5.29	130	0.026
NaI(Tl)	7	3.7	100	0.230
HPGe	0.2 (1.3 keV)	5.35	Not applicable	Not applicable

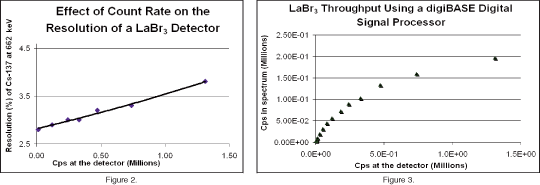

Figure2and diagram3Shown withORTEC digiBASEofLaBrHigh-rate performance of the detector.
Lanthanum Bromide Scintillation Radiation Detector throughput count rate resolution

Lanthanum Bromide Scintillation Radiation Detector throughput count rate resolution

digiBASEVery stable resolution over a wide range of count rates.

Specifications +

Dimensions and weight

Model	baseOD	PMT OD	Detector housingOD	Detector housing length	overall length	Net weight	Shipping weight
LABR-1x1	57 mm 2.2inches	44.5 mm 1.8inches	30.4 mm 1.2inches	26.1 mm 1.0inches	143 mm 5.6inches +pins	~0.06pounds	5pounds
LABR-1.5x1.5	58.7 mm 2.3inches	58.7 mm 2.3inches	43.1 mm 1.7inches	39 mm 1.5inches	151.5 mm 6.0inches +pins	~1pounds	5pounds
LABR-2x2	58.7 mm 2.3inches	58.7 mm 2.3inches	55.8 mm 2.2inches	51.5 mm 2.0inches	164 mm 6.5inches +pins	~1.5pounds	5pounds
LABR-3x3	58.7 mm 2.3inches	58.7 mm 2.3inches	82.5 mm 3.2inches	157 mm 6.2inches	194 mm 7.6inches +pins	~2pounds	5pounds

Spectrum analysis electronic equipment

electronic equipment	PMTbase/preamplifier	amplifier	MCB	HVPS	Remarks
digiBASEorDigiBASE-E	include	include	include	include	system - computer required
bringDIM-296ofdigiDartordigiDART-LF	include	include	include	include	Portable applications that require or do not require the use of a computer
adopt296 PMTpedestalNIMsolution	include	NIM*	MCB**	include	needNIMPower box/Power supply and computer. Energy and timing can be done simultaneously.
adopt276 PMTpedestalNIMsolution	include	NIM*	MCB**	556	needNIMChassis/Power supply and computer. Energy and timing can be done simultaneously.
adopt266 PMTpedestal and113preamplifierNIMsolution	include	NIM*	MCB**	556	Computer required. Energy and timing can be done simultaneously

*Selection of NIM amplifiers: 855, 575A, 570, 590A, 671, 672, 572A

**MCB’s choice: EASY-MCA-2K, EASY-MCA-8K

Ordering information +

Model	Description
LABR-1x1	LaBr₃（Ce) scintillation detector,1 x 1inch crystal with1.5inch diameter14needlePMT;Resolution3.5% guaranteed.St. Gobainpart number2-4-7174
LABR-1.5x1.5	LaBr₃（Ce) scintillation detector,1.5 x 1.5inch crystal with2inch diameter14needlePMT;Resolution3.0%target.St. Gobainpart number2-4-6115。
LABR-2x2	LaBr₃（Ce) scintillation detector,2 x 2inch crystal with2inch diameter14needlePMT;Resolution3.5%target.St. Gobainpart number2-4-6288。
LABR-3x3	LaBr₃（Ce) scintillation detector,3 x 3inch crystal with3inch diameter14needlePMT;Resolution3.5%target.St. Gobainpart number2-4-7175。
