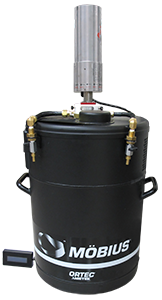

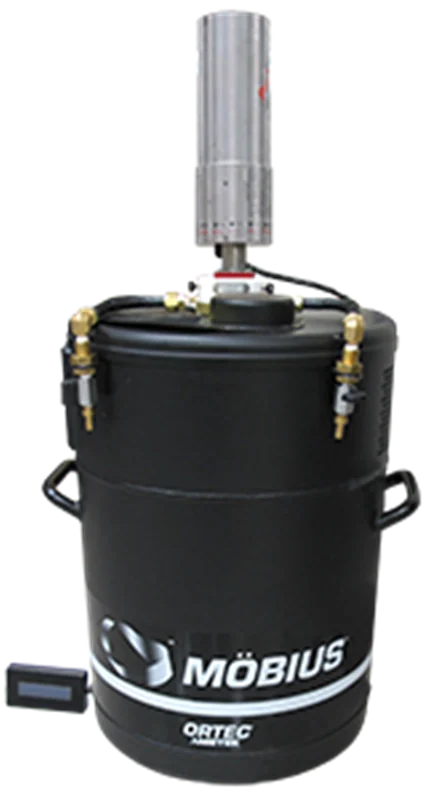

Mobius Liquid Nitrogen Reflux Cooling System 2

padding gap

Cool down and top up the detectorLN₂After,Möbiussystem can run2years or more without filling with liquid nitrogen. This is based on sealing technology and assumes it operates under uninterrupted steady-state conditions.

maintenance

Easy to remove, washable, air intake filter. No other maintenance is required.

remote display

The remote display is connected to the system via a cable and can be mounted remotely for improved visibility when the detector is placed within a lead shield.

The display will showLN₂Fill level, power consumption, pressure and overall status information. When the liquid level in the Dewar flask drops to70% below, the user will receive a warning.

internal controller

The control electronics, power supply and cooler are electrically isolated from the dewar and are not affected byLN₂spillover effects.

Liquid level sensing

Capacitive level sensors are available in0-100Continuous measurement within % rangeLN₂Liquid level.

withUPSSystem used in conjunction with

MöbiusThe Liquid Nitrogen Reflux Cooler contains a small onboard computer that receives input during a power outage. This input puts the system into power save mode and turns off the cryocooler. With the cryocooler turned off, the onboard computer and diagnostic electronics can be powered by a smallUPSPower supply.

LN₂hold time
(In case of power outage)

WhenMöbiusWhen full, forStreamlineA typical detector in a cryostat is approx.7-10Days.
WhenMöbiusWhen full, forPopTopA typical detector in a cryostat is approximately4-7Days.

LN₂loss rate

With the cooler turned off, daily approx.3l. Operates as a standard dewar when powered off.

Spectral performance

If purchased withMöbiusnewORTECDetector, its resolution can be found in the detector data sheet. if higher than15 keV, the guaranteed resolution of the detector will not be reduced. if less than15 keV, then it is lower than the guaranteed resolution10％。

for existingORTECDetector System: If usedMöbiusReplace existing Dewar orX-COOLER, the degree of resolution reduction is based on existing detector performance. The detector is expected to have similar performance compared to using a standard liquid nitrogen Dewar. Depending on the age and configuration of the detector, resolution may be reduced.

Dewar bottle capacity

27liters, excluding detector scale volume.

cooler

With passive vibration dampingAMETEK SUNPOWER。

Auxiliary cooling

Internal fan.

audible noise

below30°CWhen operating at an ambient temperature of1meters below60 dB (A)。

power supply

100-240 V AC, the automatic measurement range is120to240 V，50to60 Hz。

Normal power consumption

125 WTypical values,350 Wvalue.

Size

See drawings in Detector Configuration Guide

Weight (excluding cryostat and detector)

empty 63pounds (28.58kilogram). full 113pounds (51.26kilogram).

working temperature

0to40°C. relative humidity20% to90%, no condensation.

Warranty

onlyMöbiusDevice enjoy2Year warranty (excludingHPGedetector).

CE

Complies with radiated and conducted emissions, susceptibility and low voltage power supply directivesCEstandard.

NRTL

Certification passedOSHAApprovedNRTLcertification bodySGSVerification that the product complies with U.S. electrical safety standards (UL/ANSI）。

Model

Description

MOBIUS-PT

MöbiusLiquid nitrogen reflux cooler is used forPopTopdetector. include1.5inches (38.1 mm) diameter ring andCLAMP-1.50to adapt to the level (CFG-PH4) or vertical (CFG-PV4) cryostat.

MOBIUS-ST

MöbiusLiquid nitrogen reflux cooler is used forStreamlinetype detector. include1.5inches (38.1 mm) diameter ring,CFG-ADAPTERandCLAMP-1.25to adapt to the level (CFG-SHorCFG-N-SH) or vertical (CFG-SV) cryostat.

MOBIUS-PT-DET

MOBIUS-PTwith anyPopTopdetector andCFG-PV4vertical cryostat orCFG-PH4Purchased together with a horizontal cryostat.

MOBIUS-ST-DET

MOBIUS-STwith anyStreamlinetype detector andCFG-SVvertical cryostat,CFG-SHhorizontal cryostat orCFG-N-SHPurchased together with a horizontal cryostat.

Möbiuswith side orJcryostat

MOBIUS-B

MöbiusSide liquid nitrogen reflux cooler, with detector andJtype cryostat (CFG-HJorCFG-SJ) or side cryostat (CFG-SL) purchased together. (Note,Möbius-BCan only be purchased with a detector. )

CFG-PS4-MOBIUS-B

MöbiusSide liquid nitrogen back condensation cooler can be used as anyPopTopDetectors are purchased as separate products.

CFG-PS4-MOBIUS-B-DET

CFG-PS4-MOBIUS-B-DETwith anyPopTopDetector purchased together.

Option, only with cryostatMöbius

CFG-ADAPTOR

ring adapter, allowing the use of1.25inch diameter cryostat.

CLAMP-1.25

Detector fixture for1.25inches in diameter.

CLAMP-1.50

Detector fixture for1.50inches in diameter.

MOBIUS

MöbiusLiquid nitrogen reflux cooler. include1.5inches (38.1mm) diameter ring.
