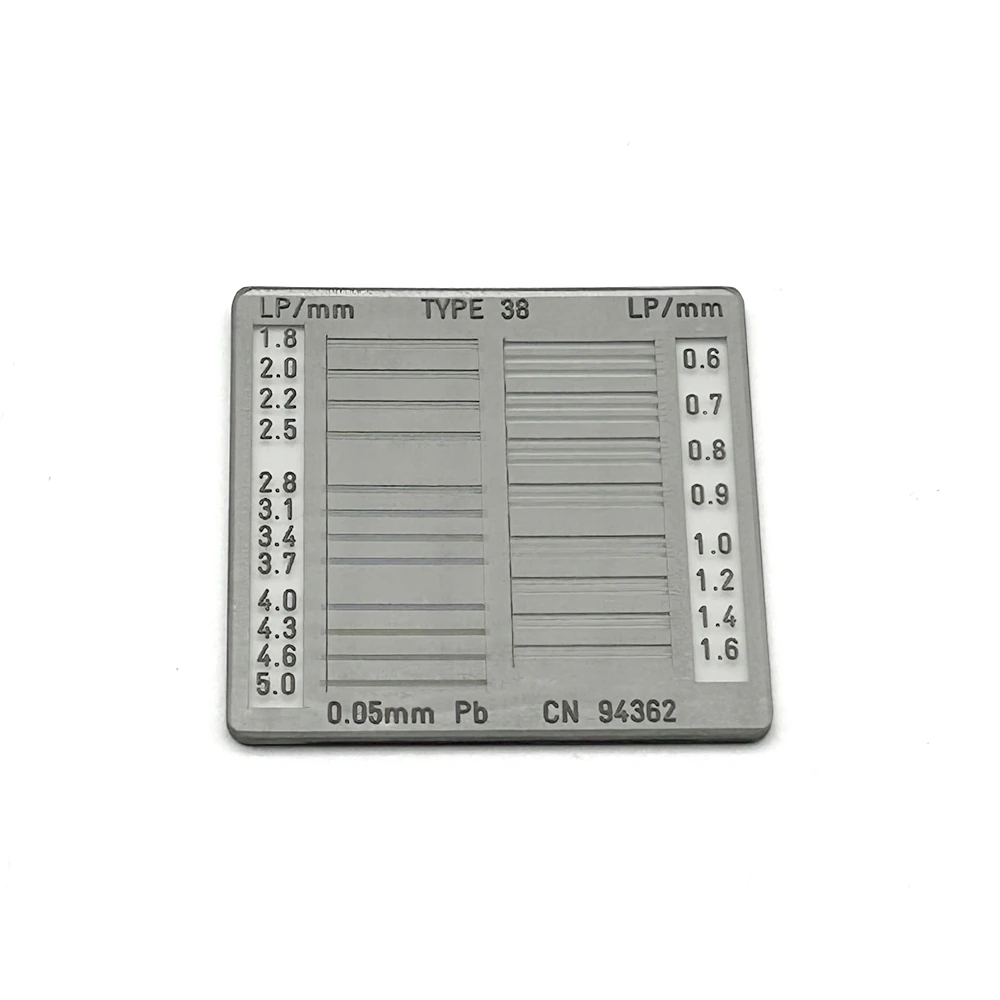

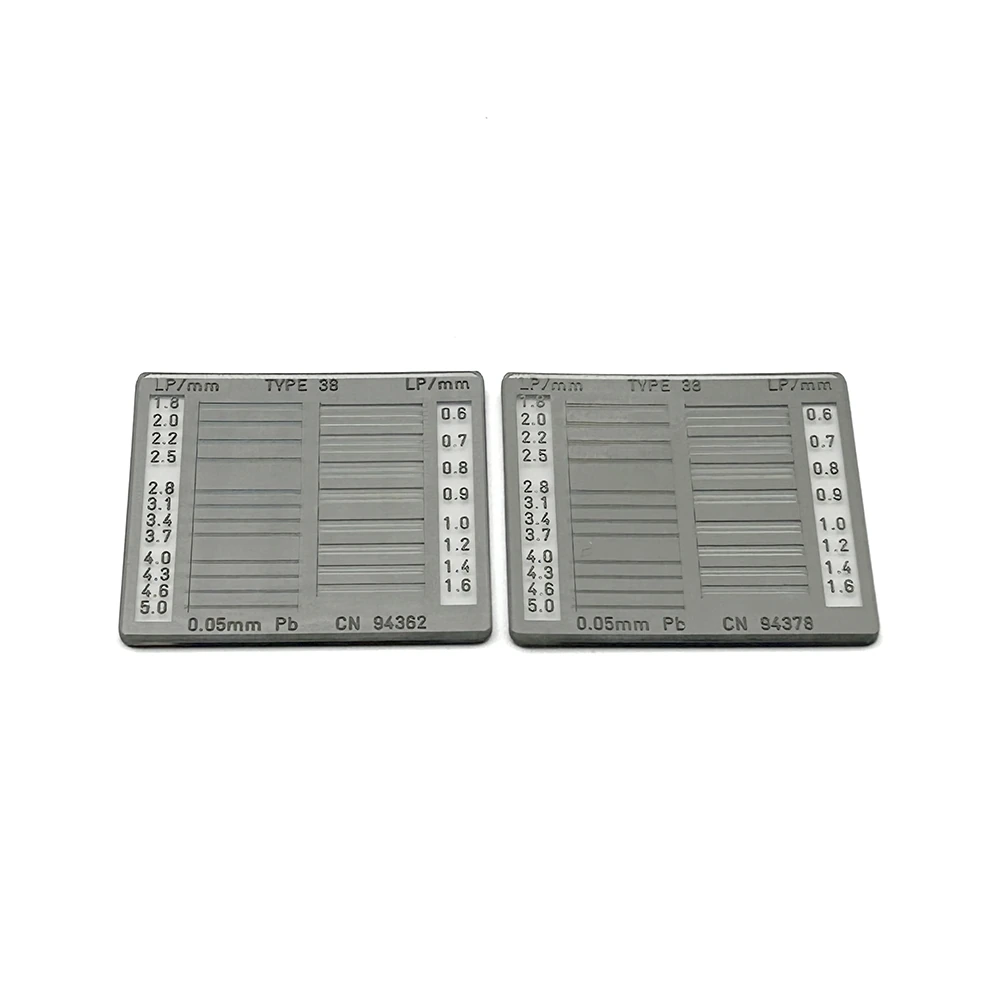

German IBA line pair card
Product model:
Brief description:The German IBA line card is a test tool specially used to test the high resolution of X-ray machines. The main function of this tool is to help detect and evaluate the imaging quality of the X-ray machine to ensure that it can provide high-definition images.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- The appropriate light field detection board should be selected according to needs
- How does the German IBA line card evaluate the resolution capability of the X-ray machine?
- Low-contrast detection phantom to protect health
- Analysis of core parameters for purchasing radiation detectors: technical guide from sensitivity to anti-interference ability
- Important equipment for radiation environment monitoring: A brief analysis of the application of KARRAY neutron dose rate meter
- Surface Contamination Detector Supplier Screening Guide: Key Points to Consider from Qualifications to Services
- A thermoluminescence dosimeter is an analytical device used to measure radiation dose
- Nuclear radiation monitoring expert: The technical foundation and market reputation verification of KARRAY Technology’s neutron dose rate meter
- KARRAY Technology: The cutting-edge power of domestic dose area product meters, technical strength and product line analysis
- Radiation detector selection guide: scientific decision-making from needs to application scenarios
Detailed introduction
The German IBA line card is a test tool specially used to test the high resolution of X-ray machines. The main function of this tool is to help detect and evaluate the imaging quality of the X-ray machine to ensure that it can provide high-definition images.
German IBA Type81 line-to-card and TYPE39 line-to-card are two commonly used models. The measuring range of Type81 line pair card is 0.6-10.0LP/MM, and there are a total of 20 measurement groups. Its dimensions are 55X65mm and the lead foil thickness is 0.1mm. In comparison, the TYPE39 line pair card has a measuring range of 1.5-20LP/MM and a total of 14 measurement groups. The design of these models allows them to be widely used in different testing environments and equipment.
It is worth noting that when selecting and using a wire-to-wire card, in addition to considering the model and range, you also need to consider some other factors, such as lead foil thickness, size, etc. For example, the choice of lead foil thickness will affect the accuracy and reliability of the test results; the choice of size may affect the efficiency and convenience of the test. Therefore, users need to choose the appropriate line pair card based on their specific needs and device characteristics.
The German IBA line card is an efficient testing tool, mainly used to detect and evaluate the imaging quality of X-ray machines, including radiographic film quality and radiographic real-time imaging image quality. When using the TYPE39 line pair card, you first need to place it in the center of the field of view of the device under test, and ensure that the card surface is parallel to the imaging plane. Then, according to the specific requirements of the equipment being tested, select the appropriate range for testing.
The German IBA TYPE39 line-to-card is packaged in a protective box. It can not only be used to detect the quality of conventional radiographic films and real-time radiographic imaging images, but can also be used to detect the image resolution quality of industrial CT, CT, and X-ray diagnostic equipment. In addition, this model of line pair card has multiple versions, such as TYPE39a, TYPE39B and TYPE39c, etc., with different measuring ranges and lead foil thicknesses. Users can choose the appropriate version according to actual needs.
When using the IBA line pair card, it should be noted that although it is convenient to use and simple to operate, due to the increasingly higher requirements for resolution detection of rays, the resolution requirements for the line pair card have also increased accordingly. In addition, in order to ensure the accuracy and reliability of measurement results, the line pair card needs to be calibrated and maintained regularly.
The advantages of German IBA line-to-card are mainly reflected in the following aspects:
1. High-resolution test: The German IBA TYPE39 line pair card is mainly used to test the high-resolution of X-ray machines. Its measuring range is 1.5-20LP/MM, and there are a total of 14 measurement groups. In addition, there is also a TPY18 d model with a resolution test range of 0.5lp/mm~20.0lp/mm. This makes it an important tool for evaluating and optimizing the image quality of medical devices.
2. Versatility: The TYPE39 line-to-card is packaged in a protective box. It can not only be used to detect the quality of conventional radiographic films and real-time radiographic imaging images, but can also be used to detect the image resolution quality of industrial CT, CT, and X-ray diagnostic equipment. This versatility allows it to adapt to a variety of different testing environments and equipment.
3. Easy to use: The German IBA line pair card is easy to use and simple to operate. The user only needs to place it in the center of the field of view of the device under test, make sure the card surface is parallel to the imaging plane, and then select the appropriate range for testing.
4. High accuracy: German IBA wire-to-card adopts precise manufacturing technology and high-quality materials to ensure the accuracy and reliability of measurement results. In addition, in order to ensure the accuracy and reliability of measurement results, the line pair card needs to be calibrated and maintained regularly.
Overall, the German IBA wire-to-card provides strong support for image quality evaluation and optimization of medical equipment through its advantages of high-resolution testing, versatility, ease of use and high accuracy.
