Detailed introduction
USACIRS 014C&014E Mammography Assessment Phantom
Introduction:
American College of Radiology andThe MQSA recommends the use of a uniform 4-cm-thick "medical grade" box phantom for the assessment of mammographic artifacts because artifacts are often difficult to identify based on clinical or standard phantom images.

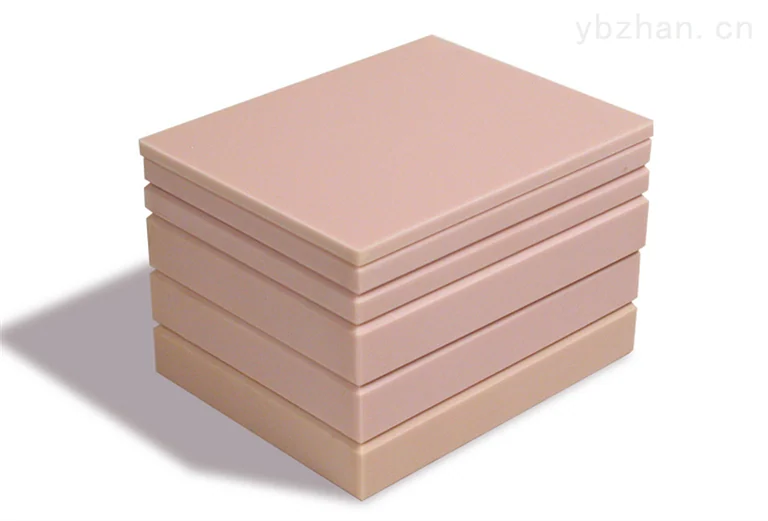

The CIRS 014C & 014E mammography phantoms are designed to meet these recommendations. The small phantom measures 18 x 24 x 4 cm thick and the large phantom measures 24 x 30 x 4 cm thick.
Both are equivalent by the organizationMade of BR-12 with a thickness tolerance of 0.01mm, all models are image tested and carefully screened for uniformity and impurities. Other glandular equivalents available upon request.
USACIRS 014C&014E Mammography Assessment Phantom Features:
Tissue Equivalent Materials
Contains no impurities
comply withACR and MQSA recommendations
beautycountryCIRS 014C&014E Mammography Assessment Phantom Product Specifications:
product specifications | |||||
Phantom model | StandardGlandlarity | Quantity | length(cm） | width (cm） | Thickness (cm） |
CIRS 014C | BR12 | 2 | 18 | 24 | 2 |
CIRS 014E | BR12 | 2 | 24 | thirty | 2 |
BreastsRadiographic plates are available individually in a variety of glands, sizes and thicknesses. For pricing, see models starting with "ST". Standard glands include BR12 and 50/50. Standard thicknesses include 0.1, 0.2, 0.5, 1, 2, 3, 4, 5, 6 and 7cm. Other glands, sizes and thicknesses available. Contact CIRS Customer Service for a quote. | |||||
