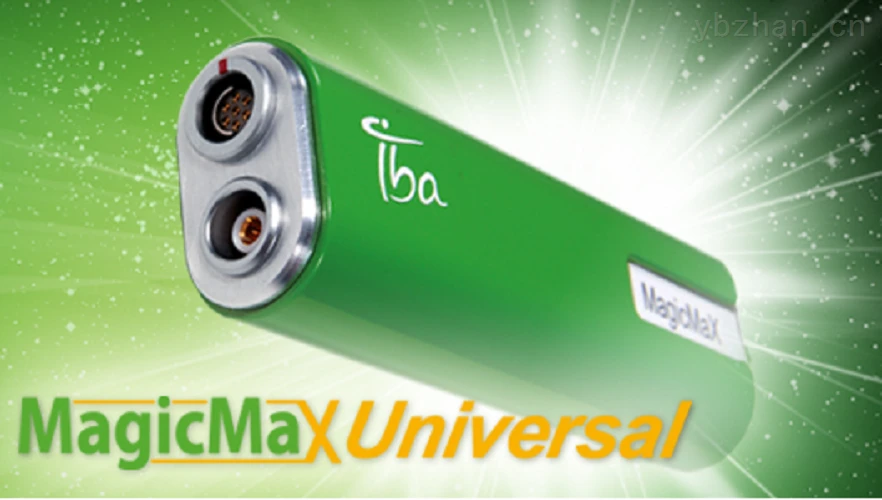

MagicMax Universal X-ray Evaluation Output System
Product model:

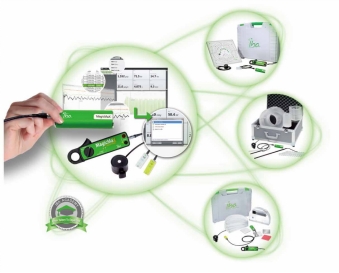

Brief description:Suitable for evaluating various X-ray machines, including: CT machines, film machines, fluoroscopy machines, pulse fluoroscopy, portable X-ray machines, etc. The measurement data that can be measured in one exposure includes kVp, PPV, dose, dose rate, exposure time, HVL, and total filtration. Free data storage and analysis software is provided randomly, and user reports can be customized.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- X-ray multifunctional quality detector is an important non-destructive testing equipment
- X-ray machine comprehensive tester can quickly obtain test results
- Basic requirements for maintenance and upkeep of X-ray machine comprehensive tester
- Application of X-ray machine comprehensive tester in medical equipment upgrading and transformation
- Important equipment for radiation environment monitoring: A brief analysis of the application of KARRAY neutron dose rate meter
- Thermoluminescent personal dosimeters can be used in areas such as environmental dose monitoring
- The appropriate light field detection board should be selected according to needs
- Low contrast detail detection phantom丨Product Encyclopedia
- Do you know how to use nuclear radiation detectors?
- How to use and precautions for thermoluminescence personal dosimeter
Detailed introduction
l Suitable for evaluating variousX-ray machines include: CT machines, film machines, fluoroscopy machines, pulse fluoroscopy machines, portable X-ray machines, etc.
l Measurement data available for one exposure includekVp, PPV, dose, dose rate, exposure time, HVL, total filtration.
l Free data storage and analysis software is provided, and user reports can be customized.
Product features
l It has an external dual-channel detector interface, and a second channel dose detector can be attached at the same time.
l Data transmission applies direct wired connection, high-speed data transmission technology. Can really do it0.1ms detection technology.
l Can display dose andkVp waveform for easy analysis. The minimum resolution time of the waveform is 0.1 milliseconds.
regularMeasuring range and accuracy of X-ray machine and fluoroscopy system:
l Kilovolt:40-155 kV / ±2%
l
Dosage:50nGy-50Gy / ±5%
l Dose rate:0.1µGy/s-120mGy/s / ±5% or ±0.02µGy/s
l Exposure time:0.2ms-999.9s
l Fast half value layer:1.3-10mmAl / ±10% or 0.2mm
l Total filtering:1.5-30 mm Al / ±10% or ±0.3mm (60-120kV.HF/DC)
Breast machine measuring range and accuracy
l Kilovolt:20-49 kV / ±1.5% or 0.7 kV
l
Dosage:50nGy-50Gy
l Dose rate:0.4µGy/s-700mGy/s
l Exposure time:0.2ms-999.9s
l Fast half value layer:0.2-1.2 mm Al based on radiation quality/±5%
l Total filtering:1.5-30 mm Al / ±10% or ±0.3mm (60-120kV.HF/DC)
The measuring range and accuracy of the CT machine part:
l After measurement, the analysis software can automatically issue a reportCTDI value
l Measuring range:
l Exposure:10nGy – 9999mGy
l Exposure rate:100nGy/s – 120mGy/s
l Exposure time: 1 ms – 199999 s
l Effective measurement volume: 4.9cm3
l total effective length: 100 mm
l leakage ray: < +/-4x10 -15A
l Measuring range: 100 kV – 150 kV
l scale factor (typ.）: ND,K=70mGy*cm/nC(120kV/HWD4.05 mm Al)
