MRI and CT magnetic resonance distortion phantom radiography quality control equipment
Product model:KR501
Brief description:Product Introduction MRI and CT Magnetic Resonance Distortion Phantom - Evaluates image distortion in large-bore MRI and CT. The large-field MRI distortion phantom is designed to evaluate magnetic resonance imaging distortion caused primarily by nonlinearities in magnetic gradients. It can also help quantify susceptibility to MRI image distortion due to chemical shifts and density differences common in diagnosis and RT treatment planning.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- X-ray multifunctional quality detector is an important non-destructive testing equipment
- X-ray machine comprehensive tester can quickly obtain test results
- This knowledge of CT dose detection phantom is worth learning
- The appropriate light field detection board should be selected according to needs
- Solid water phantoms are available in a variety of standard sheet thicknesses
- What is the specific role of CT performance testing phantom?
- Basic requirements for maintenance and upkeep of X-ray machine comprehensive tester
- Radiotherapy three-dimensional water tank is an important equipment in the field of radiotherapy
- How effective is the spatial resolution test card in practical applications?
- Application of X-ray machine comprehensive tester in medical equipment upgrading and transformation
Detailed introduction

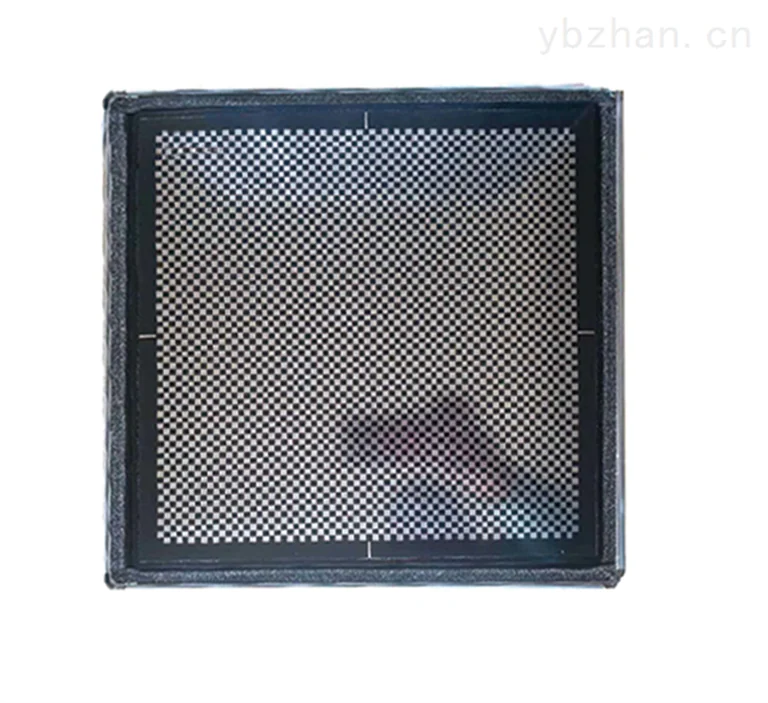

KR501 MRI and CT Magnetic Resonance Distortion Phantom Static field uniformity and artifact phantom
Product introduction
MRI and CT Magnetic Resonance Distortion Phantom - Assess image distortion in large-bore MRI and CT.
DachangThe MRI distortion phantom is designed to evaluate magnetic resonance imaging distortion caused primarily by nonlinearities in magnetic gradients. It can also help quantify susceptibility to MRI image distortion due to chemical shifts and density differences common in diagnostics and RT treatment planning. The phantom's large size and equally spaced 3D mesh in all three orthogonal dimensions make it suitable for distortion-free OA for large-bore row MRI and CT scans to achieve distortion-free imaging. The phantom can be filled with various signal generation solutions for magnetic resonance imaging. Depending on the liquid used to generate the MRI background signal, the contrast at the grid-liquid interface changes under computed tomography. When empty, the grid-air interface provides good contrast under CT. The phantom body consists of leak-proof PMMA cylinders 300 mm x 300 mm. The entire volume is populated with a unique orthogonal 3D grid that is 5 mm in diameter and spaced 5 mm apart to provide complete geometric data throughout the entire imaging volume. The phantom is marked for easy alignment with the positioning laser and is designed for use on curved and flat gantry tables.
