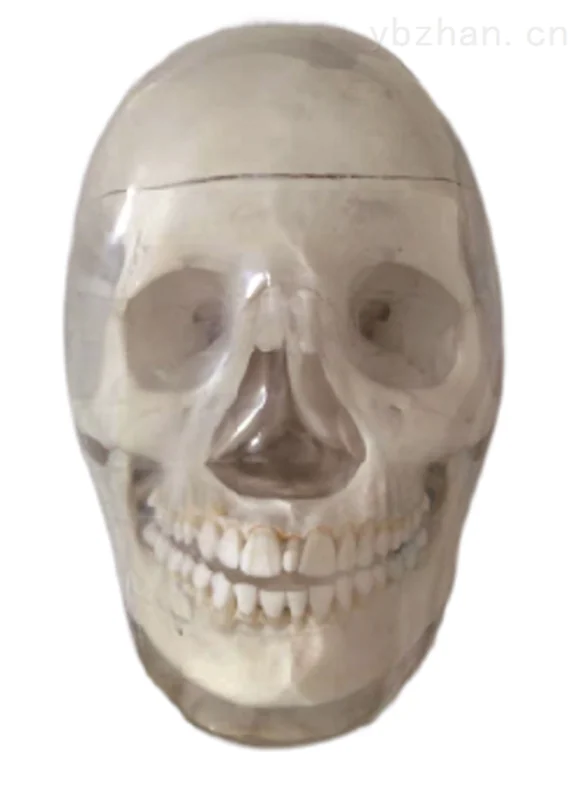

KR602 adult skull phantom

KR602 adult skull phantom

Product introduction

Adult skull phantom can be used for medical imaging research and non-invasiveTreatment plan for HIFU brain surgery. The design of the adult skull phantom is based on an ordinary male male head and is made from a patented bone material suitable for ultrasound, MRI and CT applications (any other parts of the skull can be manufactured to customer order). The mannequin has a realistic three-layer structure with internal porosity that can be adjusted to the requirements of a specific project.

Adult skull tissue types:

【g/cm3] Hardness [Shore 00] T2 [milliseconds] Spot Speed of sound [m/s] Density

inAttenuation measured at 2.25 MHz [dB/cm] Cortical bone material used to create the skull phantom 3000 ± 302.31 Not applicable Not applicable Not applicable 6.4 ± 0.3 Trabecular bone material used to create the trabecular layer within the bone model 2800 ± 502.03 Not applicable Not applicable Not applicable 21 ± 2 Thermal properties of our bone simulation materials Thermal conductivity: Volume specific heat capacity: Thermal diffusivity: Thermal resistance: Specific heat: Speed of sound: 0.776W/m K1.040MJ/m^3 0.746 mm^2/s 1.289m kW 0.978 J/g Celsius Temperature 3070 m/s.

Customizable

Adult skull phantom customization

WEK-Head adult skull phantom customization
