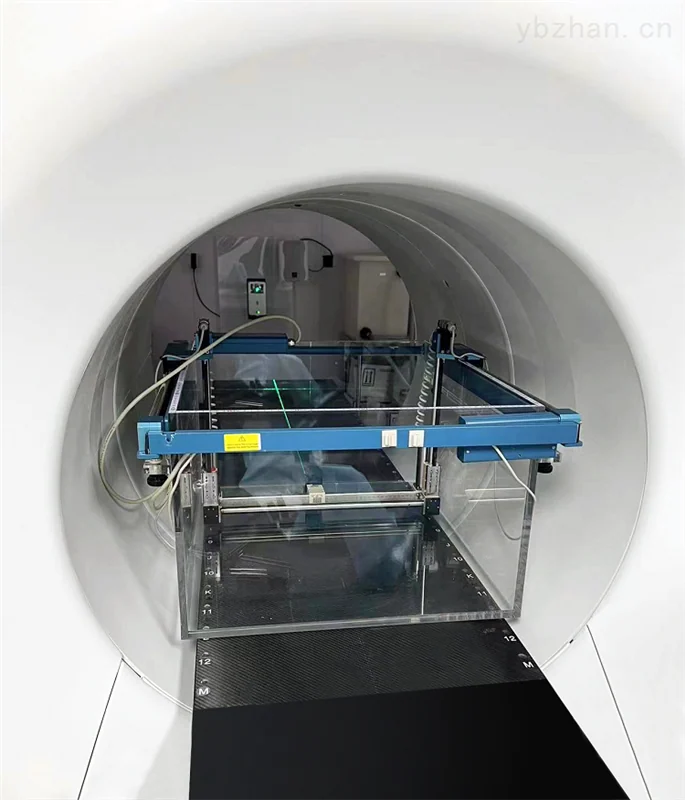

KR703 type radiotherapy three-dimensional water tank

External dimensions of water tank (LxWxH）:

675mm x645mm x 560 mm

Scan range (LxWxH）:

480 mm x480 mmx410 mm

Location resolution:

0.1 mm

Position accuracy:

±0.1 mm

Position repeatability:

± 0.1 mm

Scan speed:

50 mm/s

Approximate volume:

200 I

wall thickness/Materials:

15 mm /acrylic

Weight:

45 kq

Universal control unit (CCU）

Maximum resolution: Measuring range:

0.5 fAat0.4 nA full scale; 5supplyat 40 nA full scale; 0.5 pA at 4 uA full scale 0.4 nA/40 nA/4uA

Leakage current:

typically<1 fA

Time constant:

20 ms

Bias voltage range:

± 50 through ± 500 V

Trigger interface:

RS 485 (custom specific)

Common interface:

ETHERNET (100BaseT)

Main power supply:

100-240VAC110%: 50/60 Hz

LDA-99SC

Number of semiconductor detectors:

99

Semiconductor detector spacing:

5 mm(center to center)

Semiconductor detector specifications

Silicon type:

Hi-pSitype diode detector

Piece size:

2.45 mm x 2.45 mm

Effective volume thickness:

2.0 mm

Sensitivity:

35 gy/nC

Valid measuring points:

<1 mm

Positioning in the water tank:

0, 45, 90and135degree

water storage reservoir

HA05/HA06

Water pump direction:

Two-way/One way

Tank volume:

220 I

Flow control:

20l/min

Size(LxWxH):

970mm x 660 mm x 830 mm

Weight (unladen):

70 k

lift truck

HA01/ HA03

Operation:

Manual/electric

Vertical range:

660-1020 mm/740-1240 mm

Vertical adjustment range (tilt):

± 15 mm/20 mm

Horizontal adjustment range:

-15 mm in X/Ydirection

XYIn-plane rotation:

n.a./± 5°

Bearing surface size:

635 mm x 635 mm/680 mm x 680 mm

Size(LxWxH):

790 mm x 630 mm x 660 mm/840 mm x 680 mm x 740 mm

Weight (unladen):

69kg/116kg

TMR device (needs to be used with reservoir HA05)

Scan length:

30 cm

Position repeatability:

± 0.3 mm

Note/Pumping speed:

50 mm/min

emXX

Number of channels:

99+1

Measurement mode:

Dose, dose rate (including real-time), simultaneous measurement of all channels

(Dose/dose rate) double pass

Input range:

0nA to500nA

Accuracy:

± 1 %for currents > 10 pA

Resolution:

100 fC(The charge value reaches0.2 mCtime)

Analog to digital conversion:

120strip synchronized analog-to-digital converter

Size(LxWxH):

370mm x285mm x 130 mm

Weight:

5.75 kg

The best computer configuration

Operating system:

Windows XPProfessional version,Service Pack 2, 32 bit, Windows Vista™.final version,32 bit,American English

Operating system language:

American English

Processor:

Dual-core processor (or equivalent),2GHzor higher

Memory:

2GB

showZKCard:

CompatibleDirectX 9c,256MBDisplay small memory, no shared memory

Screen resolution:

The most dire1280x1024and32True color

Network:

Via Ethernet (RJV5) and controller (e.g. the CCU) connection

Interface:

USB 2.0The interface can connect external devices

Remaining hard drive space:

At least remaining before installation300megabytes of disk space, at least remaining after installation80Mega disk space: To store more data, more disk space is required

mouse:

Any Microsoft compatible mouse
