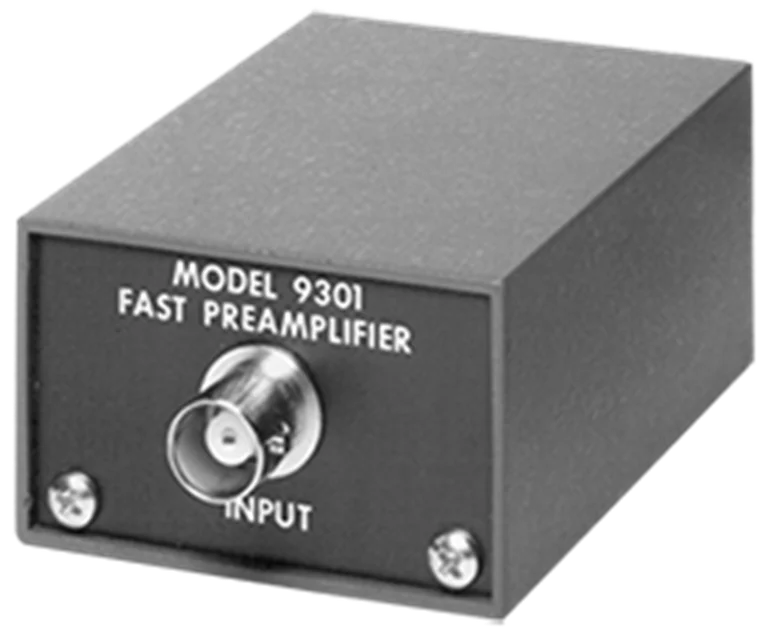

9301 Fast Preamplifier

Product model:

Brief description:For use with photomultiplier tubes, electron multipliers, etc. in photon or ion counting applications 1.5ns rise time Voltage gain of 10 Output 0.7V to 50 The compact and lightweight ORTEC9301 model low noise, fast rise time preamplifier is designed for use with photomultiplier tubes, electron multipliers and other detectors used in photon counting, ion counting or fast timing applications

Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance

Product consultation

Contact

Products

PRODUCT CATEGORY

Detailed introduction

For use with photomultiplier tubes, electron multipliers, etc. in photon or ion counting applications
1.5 ns rise time
Voltage gain is 10
Output ±0.7 V into 50 Ω
Small and light

The ORTEC Model 9301 low noise, fast rise time preamplifier is designed for use with photomultiplier tubes, electron multipliers and other detectors used in photon counting, ion counting or fast timing applications. When connected to a detector, the 50Ω input resistor of the Model 9301 will provide a load resistance for the detector's output current pulses.

information +
- 9301 Brochure
- 9301 Brochure (A4)
- 9301 Manual
More information +

In addition to a fast rise time of 1.5 ns, this preamplifier has a voltage gain of 10 and an output impedance of 50 Ω. Due to its small size and light weight, the Model 9301 is ideal for mounting directly to or close to the detector. Therefore, low-level signals that are susceptible to noise or interference are boosted to an appropriate level for cable connection to the main amplifier. Connect to the power source using the 3 meter (10 ft) included power cord of Model 9301.

Model 9301 is equipped with a power cord connector (Amphenol 17-20090) and is compatible with other ORTEC NIM standard modules.

Specifications +

Performance

Input impedance	50-Ω.
voltage gain	10 (±2%) in phase.
rise time	<1.5 ns.
Enter rms noise equivalent	<25 µV.
Output impedance	Typical value 50-Ω.
Output dynamic range	>±0.7 V into 50 Ω.
nonlinear	<±1%.
temperature instability	<±0.1%/°C.
input connector	Front panel BNC
Output connector	Rear panel BNC

electrical and mechanical

Power required	+12 V, 30 mA; -12 V, 30 mA.
weight	Net weight 0.17 kg (6 oz). Shipping weight 0.9 kg (~2.0 lb).
Size	3.1 x 5.0 x 7.3 cm (1.25 x 2 x 2.875 in.) plus 3-m (10-ft) long cable.

Ordering information +

Model

Description

9301

preamplifier

Recommended cable accessories

C-25-1/2

Bring twoBNCmale plugRG-58A/U 50ohm cable;6inches long

C-25-12

Bring twoBNCmale plugRG-58A/U 50ohm cable;12feet long

Product consultation

Previous article:9305 Fast Preamplifier
Next article:142PC preamplifier

C-25-1/2	Bring twoBNCmale plugRG-58A/U 50ohm cable;6inches long
C-25-12	Bring twoBNCmale plugRG-58A/U 50ohm cable;12feet long
